Hardware Installation Manual 22 Document #: LTRT-94720
Mediant 3000
A chassis slot assignment example for Mediant 3000 HA with TP-8410 is shown in the
figure below:

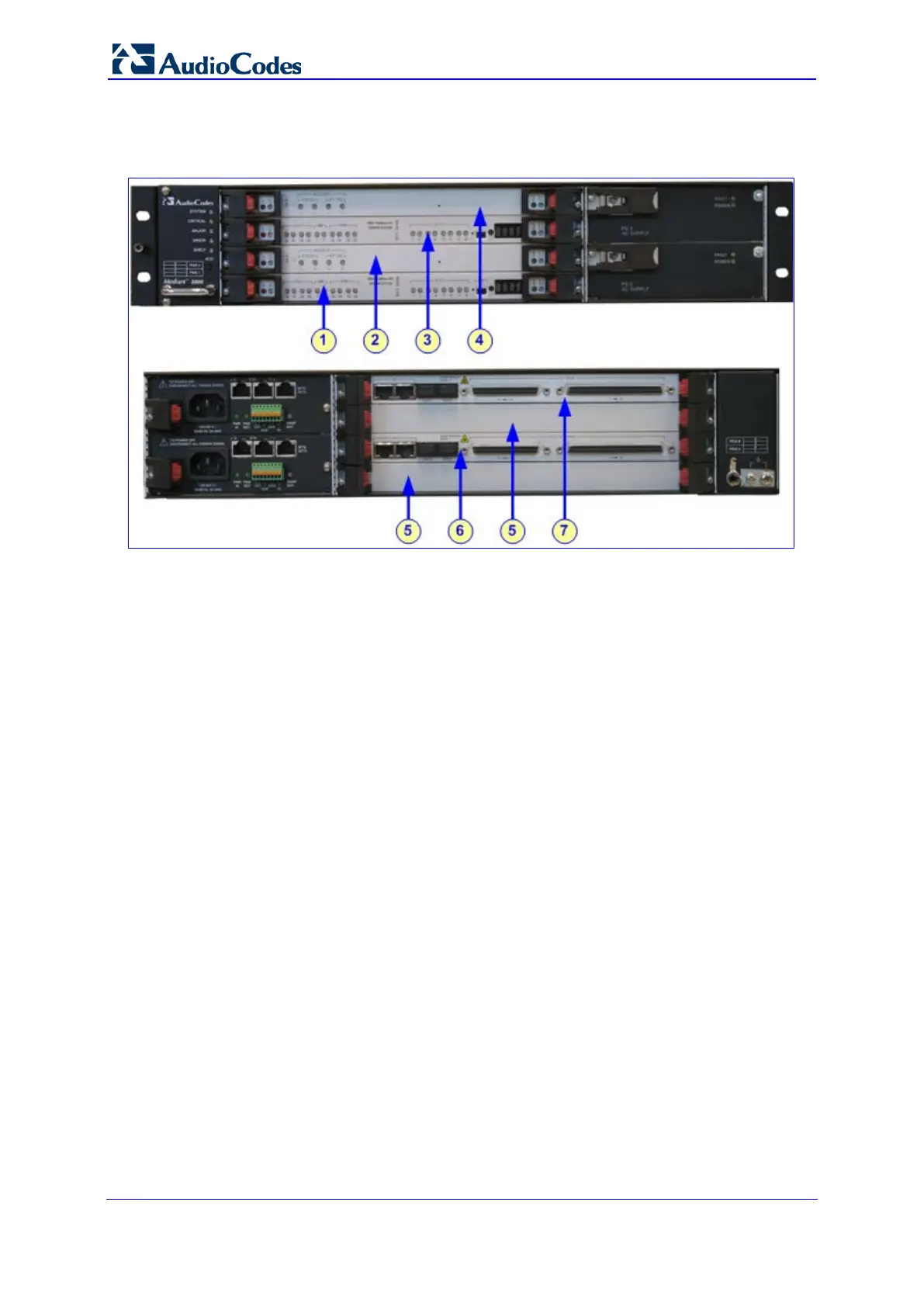

Figure 3-6: Slot Assignment for Mediant 3000 HA with TP-8410 Blades
Legend:
1. Front-panel Slot #1: active TP-8410 blade
2. Front-panel Slot #2: active SA/M3K blade
3. Front-panel Slot #3: standby (redundant) TP-8410 blade
4. Front-panel Slot #4: standby (redundant) Alarm and Status blade
5. Blank panels covering unoccupied slots
6. Rear-panel Slot #2: RTM-8410 providing PSTN E1/T1 (Trunks 1 to 42, or 1 to 16) and
dual Gigabit Ethernet interfaces
7. Rear-panel Slot #4: RTM-8410 providing PSTN E1/T1 (Trunks 43 to 84) interfaces
and Gigabit Ethernet interfaces
