AudioCodes Mediant 3000 Hardware Installation Manual

Version 7.0 55 Mediant 3000
Hardware Installation Manual 5. Cabling the Device
To provide full Ethernet redundancy for HA mode, it is recommended to connect all four
Ethernet interfaces (two on RTM-6310 and two on RTM-6310 Redundant) to the external IP
network. In addition, to provide Ethernet switch redundancy, the two Ethernet ports on each
RTM must be connected to different switches, as illustrated in the figure below:

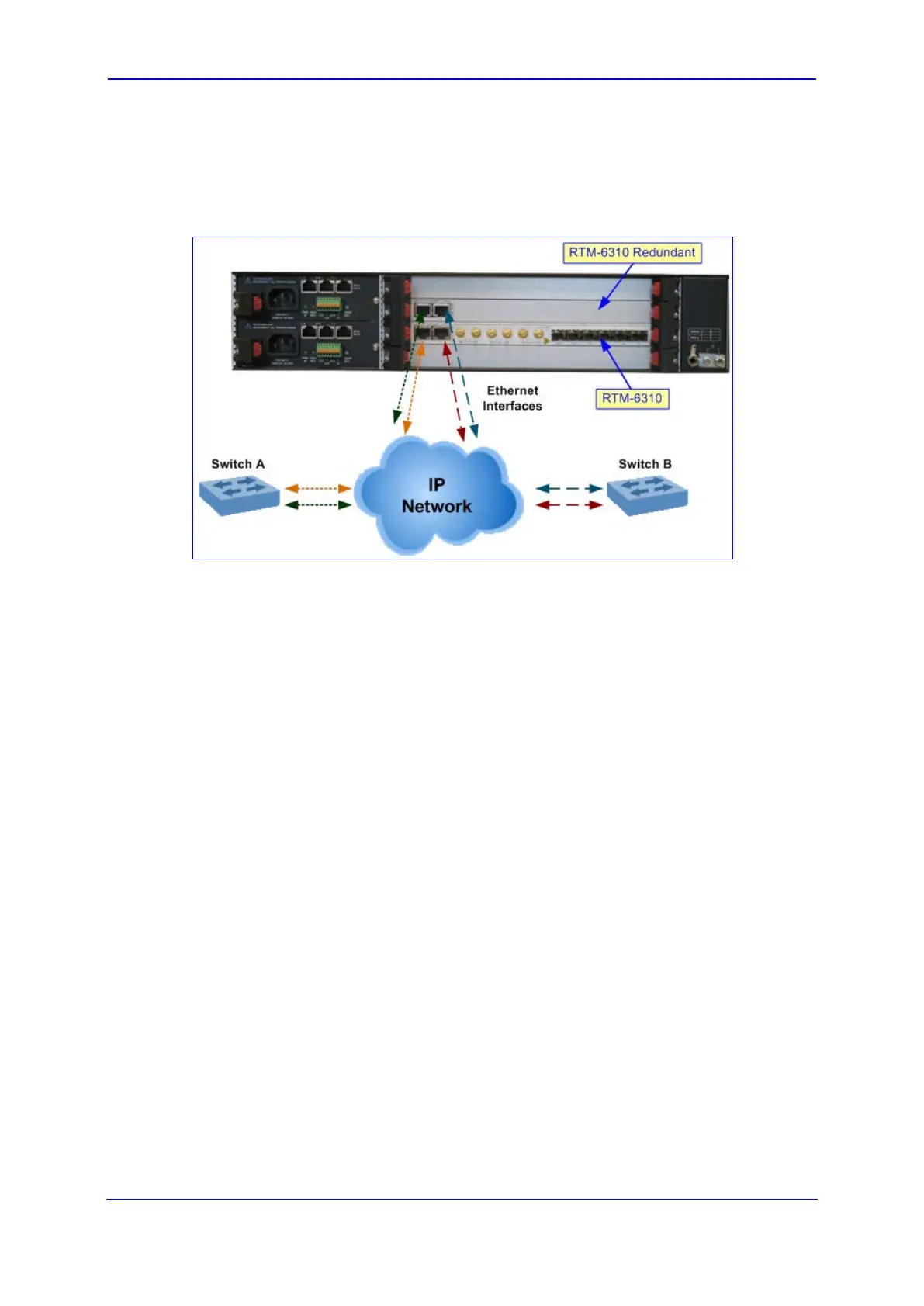

Figure 5-5: Connecting for LAN Redundancy (for HA Mode Only)
