AudioCodes Mediant 3000 Hardware Installation Manual

Hardware Installation Manual 58 Document #: LTRT-94720
Mediant 3000
5.3.1.2 100-Pin SCSI Connector Specifications
The 100-pin female SCSI connector on the RTM-8410 is shown in the figure below.

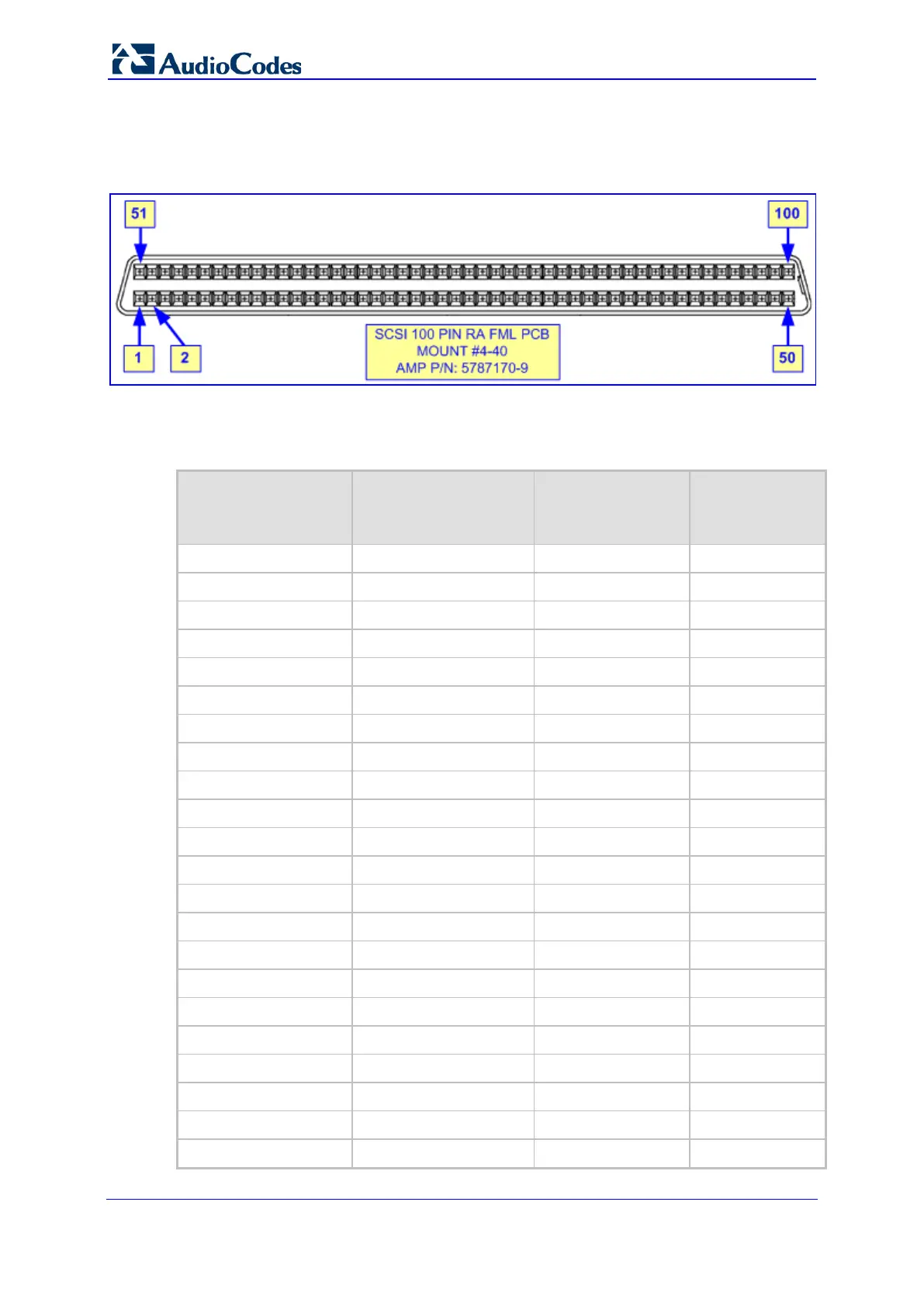

Figure 5-8: 100-Pin SCSI Female Connector on RTM-8410 Blade
This connector must mate with a male connector that is wired according to the connector
pinouts in the subsequent table.
Table 5-5: E1/T1 Connections 1 to 25 on the 100-Pin SCSI Connector Pinouts
E1/T1 Number
(1 to 25)
RTM-8410 in Slot #2
E1/T1 Number
(43 to 67)
RTM-8410 in Slot #4
Tx Pins
(Tip / Ring)
Rx Pins
(Tip / Ring)
1 43 2 / 1 52 / 51
2 44 4 / 3 54 / 53
3 45 6 / 5 56 / 55
4 46 8 / 7 58 / 57
5 47 10 / 9 60 / 59
6 48 12 / 11 62 / 61
7 49 14 / 13 64 / 63
8 50 16 / 15 66 / 65
9 51 18 / 17 68 / 67
10 52 20 / 19 70 / 69
11 53 22 / 21 72 / 71
12 54 24 / 23 74 / 73
13 55 26 / 25 76 / 75
14 56 28 / 27 78 / 77
15 57 30 / 29 80 / 79
16 58 32 / 31 82 / 81
17 59 34 / 33 84 / 83
18 60 36 / 35 86 / 85
19 61 38 / 37 88 / 87
20 62 40 / 39 90 / 89
21 63 42 / 41 92 / 91
22 64 44 / 43 94 / 93
