Version 7.0 21 Mediant 3000
Hardware Installation Manual 3. Physical Description
A chassis slot assignment example for Mediant 3000 Simplex with TP-8410 is shown in the
figure below:

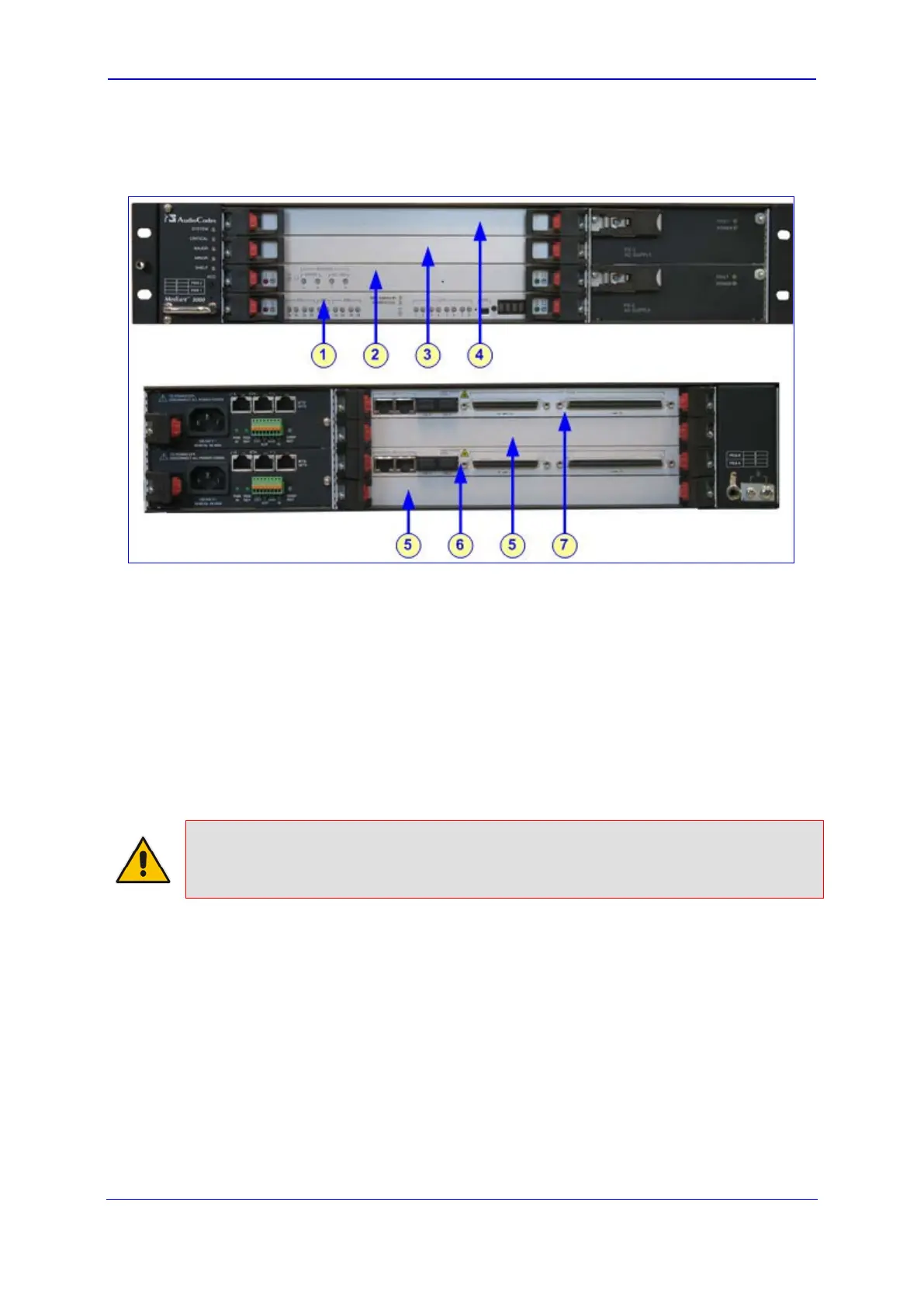

Figure 3-5: Slot Assignment for Mediant 3000 Simplex with TP-8410 Blade
Legend:
1. Front-panel Slot #1: TP-8410 blade
2. Front-panel Slot #2: SA/M3K blade
3. Front-panel Slot #3: slot covered with a blank panel
4. Front-panel Slot #4: slot covered with a blank panel
5. Blank panels covering unoccupied slots
6. Rear-panel Slot #2: RTM-8410 providing PSTN E1/T1 (Trunks 1 to 42, or 1 to 16) and
dual Gigabit Ethernet interfaces
7. Rear-panel Slot #4: RTM-8410 providing PSTN E1/T1 (Trunks 43 to 84) interfaces
and Gigabit Ethernet interfaces
Note: For 16-Span (Simplex) configuration, Slot #4 is covered by a blank panel.
