AudioCodes Mediant 3000 Hardware Installation Manual

Version 7.0 61 Mediant 3000
Hardware Installation Manual 5. Cabling the Device
5.3.2 Connecting Ethernet Interfaces to OAMP and Control IP
Networks
For devices using the TP-8410 blades, you can cable the device to physically separate the
media, control, and OAMP traffic interfaces. Depending on configuration, the port allocation
is as follows:

Dedicated Port per Application Type:
• Media: Gigabit Ethernet port on RTM-8410 (see Section 5.3.3 on page 62 for
cabling instructions).
• Control: 10/100BaseT Ethernet ports labeled 1A (bottom Power Entry
Modules/PEM module) and 1B (top PEM module)
• OAMP: 10/100BaseT Ethernet ports labeled 2A (bottom PEM module) and 2B
(top PEM module)

Dedicated Port for OAMP and Dedicated Port for Media and Control:
• Media and Control: Gigabit Ethernet port on RTM-8410.
• OAMP: 10/100BaseT Ethernet ports labeled 2A (bottom PEM module) and 2B
(top PEM module)

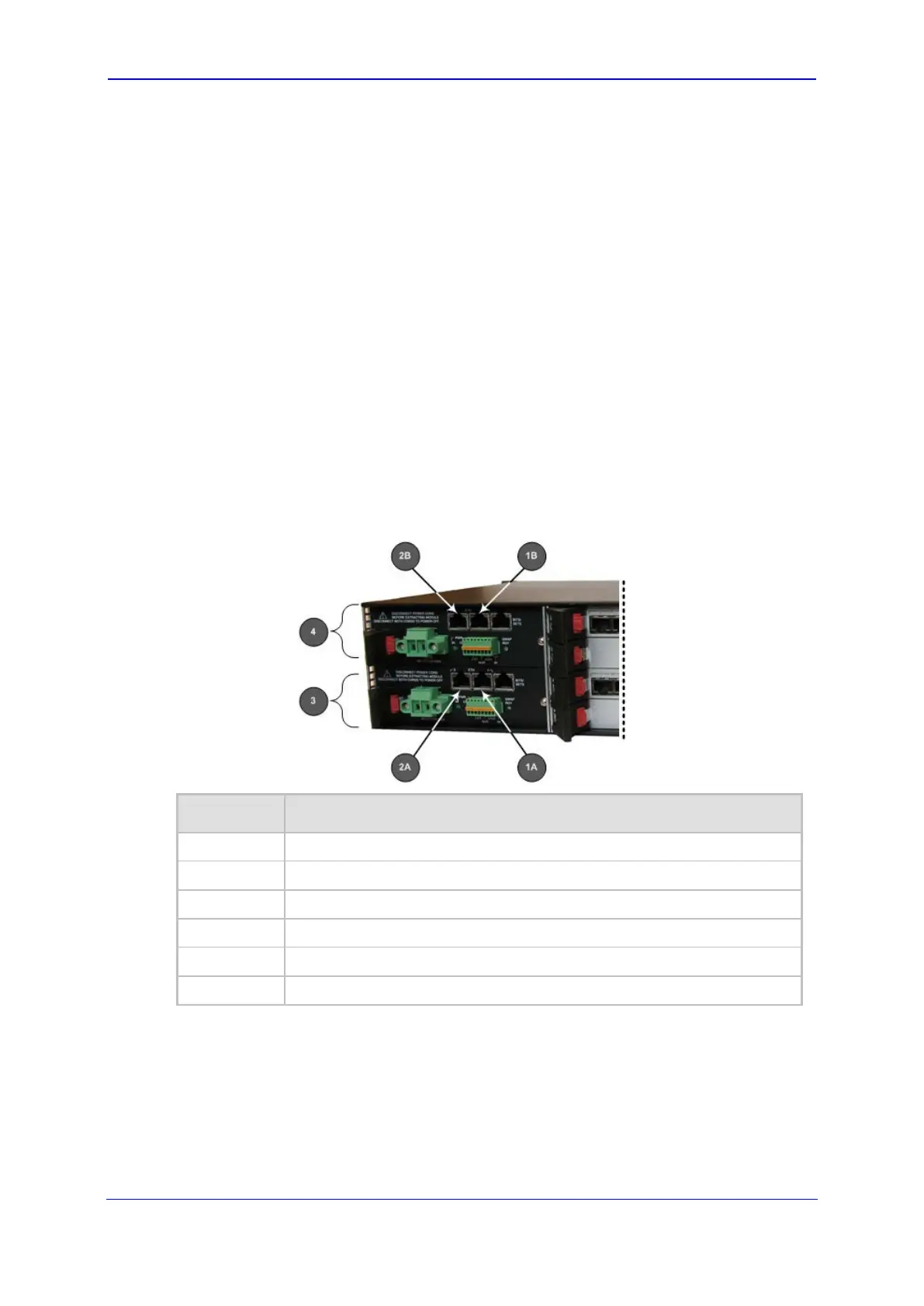

Figure 5-10: Connecting PEM Ethernet Ports to Control and OAMP Networks
Legend Description
1A
Ethernet Port 1A
1B
Ethernet Port 1B
2A
Ethernet Port 2A
2B
Ethernet Port 2B
3
Bottom (A) PEM #1 Module
4
Top (B) PEM #2 Module
The dual ports per network interface type provide 1+1 redundancy. These ports
connect directly to the active TP-8410 blade in the front panel.
The operating status of these ports is provided by the ETH LEDs on the TP-8410
blade (see Section 3.4.1.2 on page 30).
