Table 5-4: Recommended Cable Terminations for 68- and 100-Pin SCSI Connectors
Part Description No. of Pins Part # Supplier
Male
Connector
1.27 mm Cable
Plug
68 R-ZI-013068 All Best
Electronics Co
Ltd.
100 R-ZI-013100
Cable Hood
or Shroud
0.050 Series
Backshell
68 R-ZC-013068-S3
100 R-ZC-013100-S
Note:
For RTM-8410 with 16- and 42-spans configurations, a patch cable adapter (see
figure below) can be ordered separately from AudioCodes:
• 16 Spans: Cat.# SCSI-16xE1/T1 Cable
• 42 Spans: Cat.# SCSI-42xE1/T1 Cable

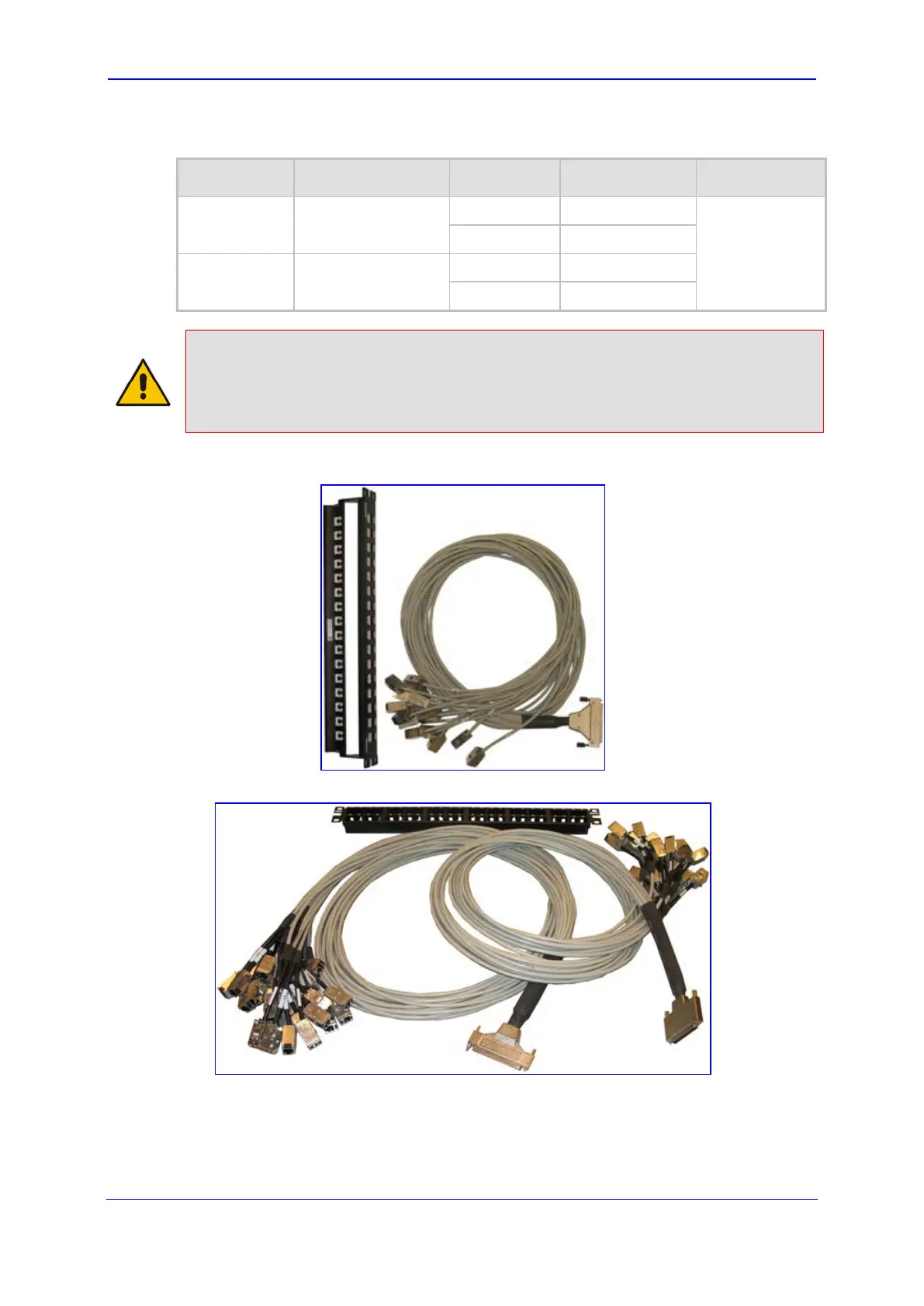

Figure 5-6: 100-Pin SCSI Patch Cable Adapter for 16 Spans (Not Supplied)
Figure 5-7: Patch Cable for 42 Spans (Not Supplied)
