User's Manual 21. Diagnostics and Performance Monitoring
Version 4.4.3 337 MP-20x Multimedia Home Gateway
21.3 System Monitoring
This section describes how to view the device performance statistics.
21.3.1 Viewing Network Connections Status
The device constantly monitors traffic within the local network and between the local
network and the Internet. You can view up-to-the-second statistical information about data
received from and transmitted to the Internet (WAN) and about data received from and
transmitted to computers in the local network (LAN).
To view network connections:
1. From the menu bar, click the System Monitoring menu.
2. Select the Network Connections tab.

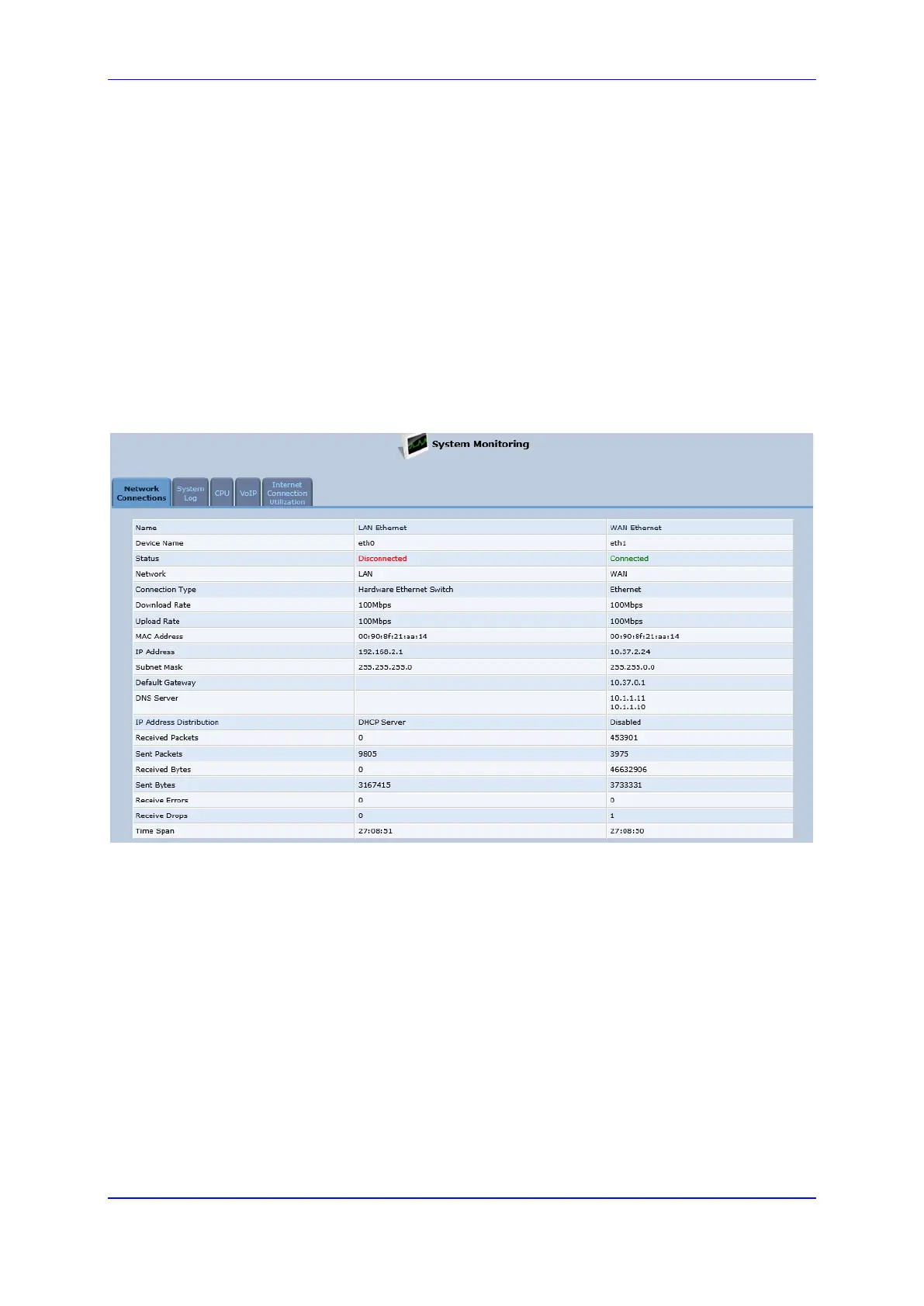

Figure 21-18: Network Connections Screen
3. Click the Refresh button to update the display or click the Automatic Refresh On
button to automatically refresh the displayed parameters. To reset the counters, click
the Reset Statistics button.
