12.6
12 12 085
Replacing ignition cable
– Remove rear left side panel
a
....................................................See Group 46
•

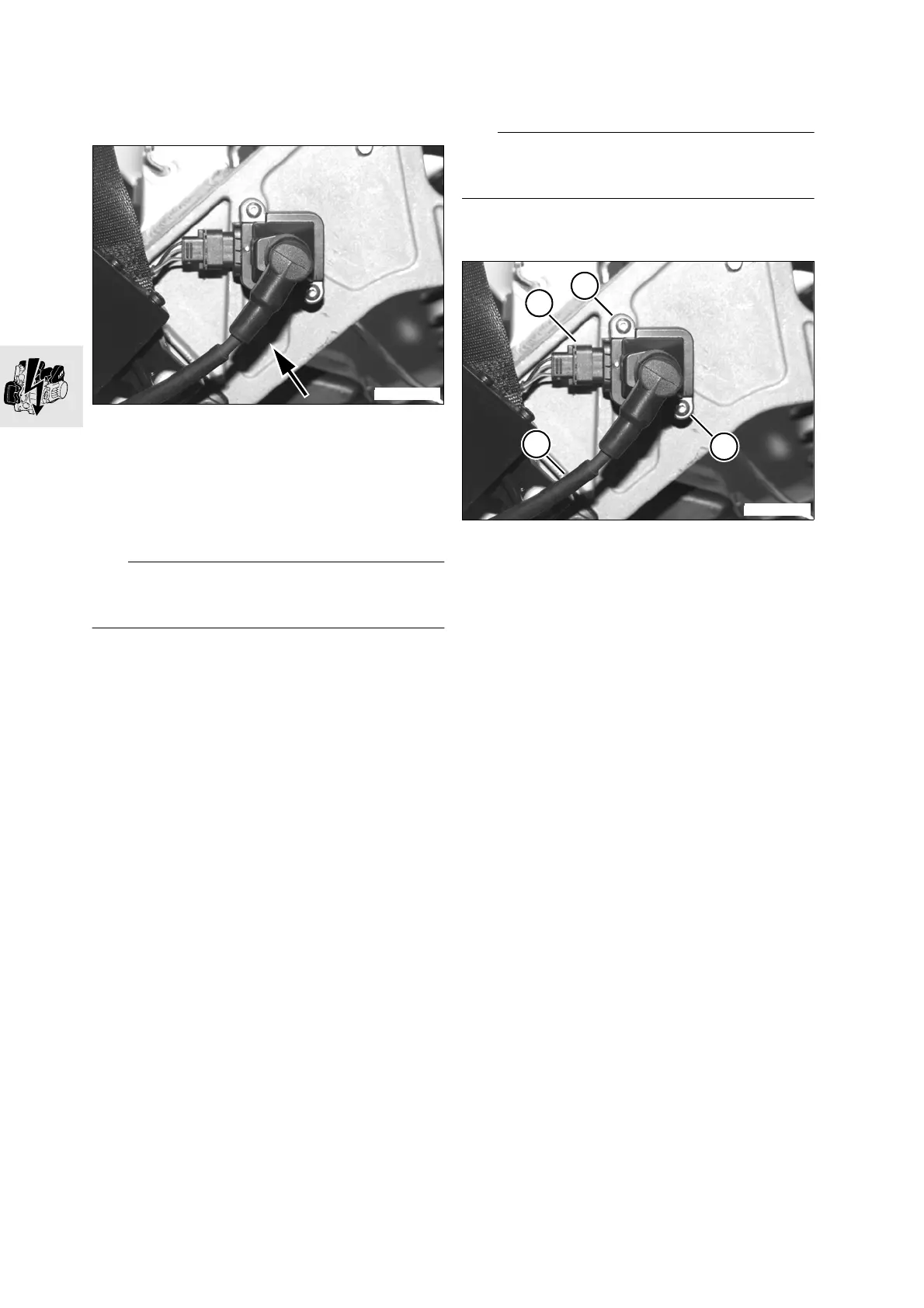

Disconnect ignition cable (arrow) from ignition
coil
When installing:
•
Installation is the reverse of the removal proce-
dure: Pay particular attention to the sequence for
securing the fasteners
e
Attention:
When installing, make sure that the ignition cable is
correctly routed and secured
12 13 000
Replacing ignition coil
e
Attention:
Switch off ignition; disconnect earth (ground) cable
from battery and insulate it!
– Remove rear left side panel
a
....................................................See Group 46
•
Disconnect ignition cable (4) from ignition coil
•
Disconnect plug (1) from ignition coil
•
Remove fasteners (2, 3)
When installing:
•
Installation is the reverse of the removal proce-
dure
X
Torque specification:
Ignition coil mount.......................................... 5 Nm
C1120010
C1120010
1
2
3
4
