46.42
Replace stand Bowden cables
– Remove instrument trim
– Remove top and left tunnel panels
– Remove knee pad
– Remove sill centre section
•

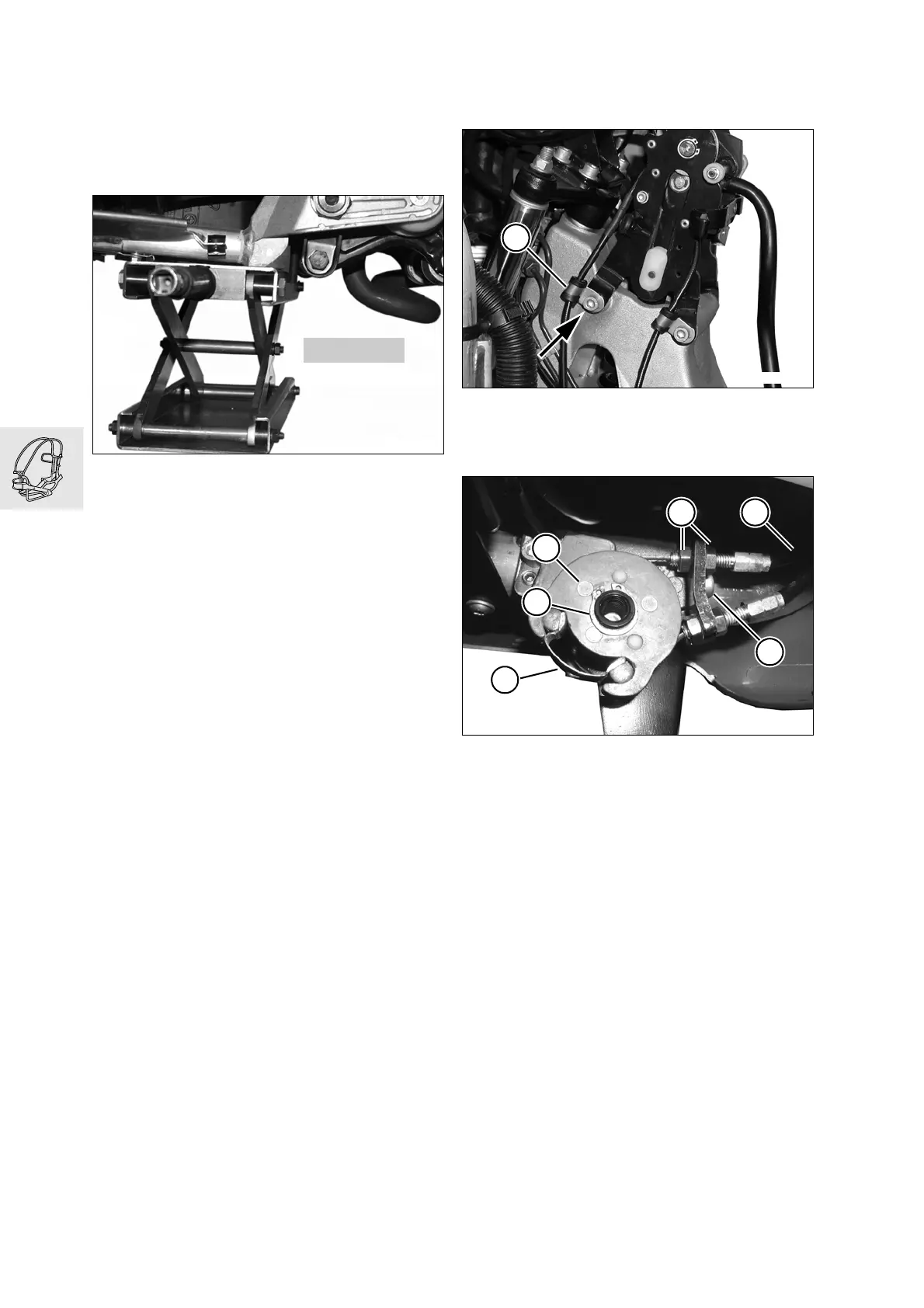

Position hoist,
BMW No. 00 1 570
, so that the
stand can be retracted
•
Use hoist,
BMW No. 00 1 570,
to raise C1 until
the front wheel clears the ground, positioning so
that C1 is standing securely
•
Lower front wheel (easy-lift mechanism - start by
moving large lever (5) up, then down)
46 52 053
Removing Bowden cable for
retracting stand
•
Remove fastener (arrow) from articulated-lever
mechanism
•
Remove Bowden cable retainer (1)
•
Remove retainer (4)
•
Remove fastener (3) for retainer on stand Bow-
den cable
•
Remove lock ring (5)
•
Remove stand cable pulley (6)
•
Fully slacken locknut (1) of adjusting screw
•
Push adjusting screws as far as possible through
holders; if necessary adjust positions of locknuts
•
Remove Bowden cable (2) from cable pulley
•
Move lever (easy-lift mechanism: extend/retract
stand) down and then raise it again
C1130050
00 1 570
C1460471
1
C1460481
3
1
5
6
4
2
