72.9
When installing:
•
While installation is basically a reversal of the re-
moval process, careful attention should be di-
rected toward the following:
e
Attention:
When installing, make sure that the seat belt, Bow-
den cable and cable are correctly routed.
Make sure that the Bowden cables are free of kinks.
Do not trap the seat belt or damage it!
•

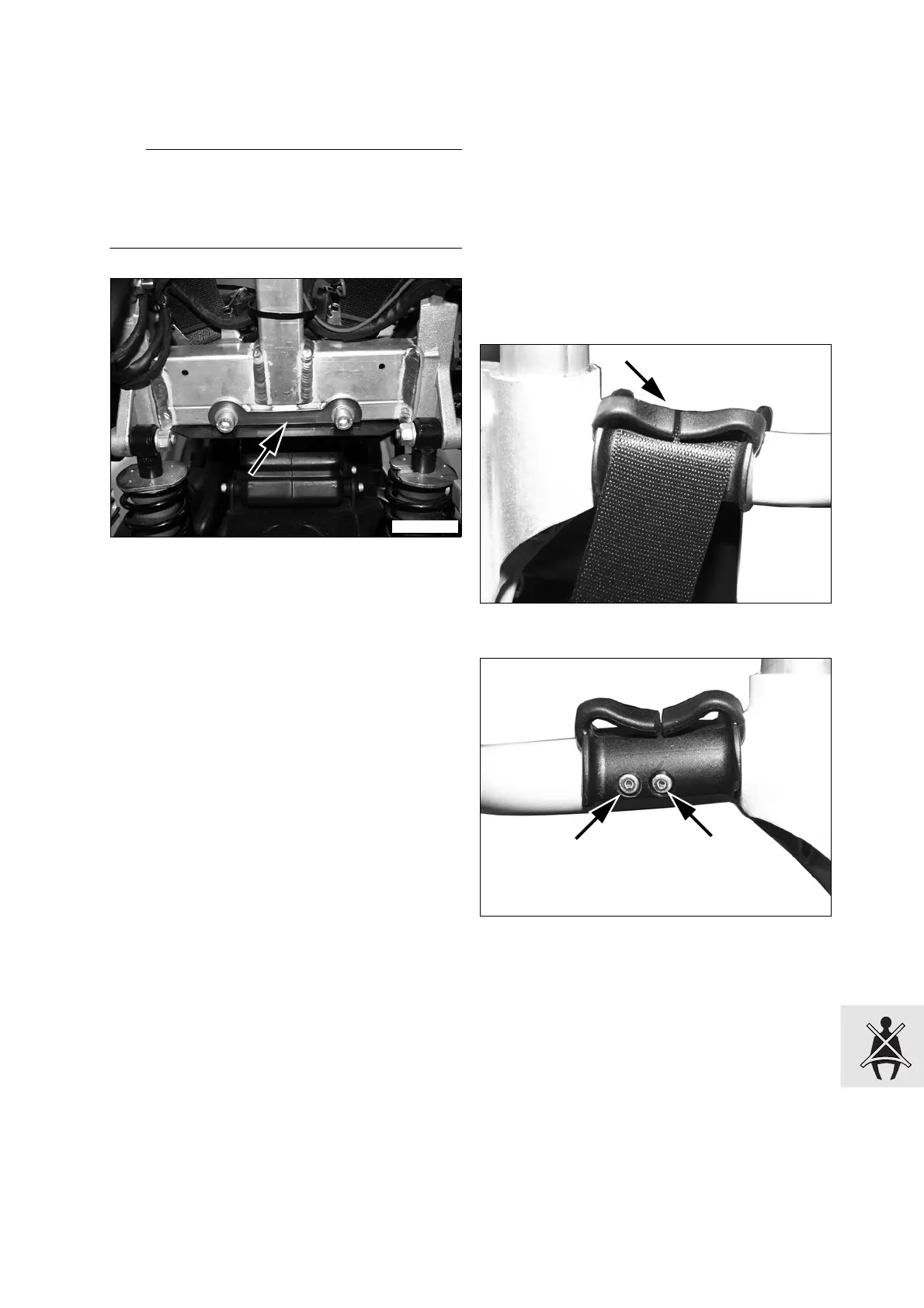

Always install reinforcement plate (arrow), retrofit
as necessary
•
Check operation of central belt release mecha-
nism
X
Torque specification:
Inertial reel unit attachment .......................... 42 Nm
Secondary mudguard attachment .................. 5 Nm
Replacing guide for seat belt at
shoulder bar
The procedure for replacing the left belt guide is de-
scribed below. The procedure for the right belt
guide is similar.
– Remove the backrest
– Remove head restraint
– Remove the rear storage compartment
– Remove the rear panel
– Remove inside trim from left C-pillar
– Remove lightweight foam element from left
C-pillar
a
....................................................See Group 46
•
Disengage seat beat from guide (arrow)
•
Drill out pop rivets (arrows)
When installing:
•
Installation is the reverse of the removal proce-
dure
C1720081
C1460400
C1720090
