00.57

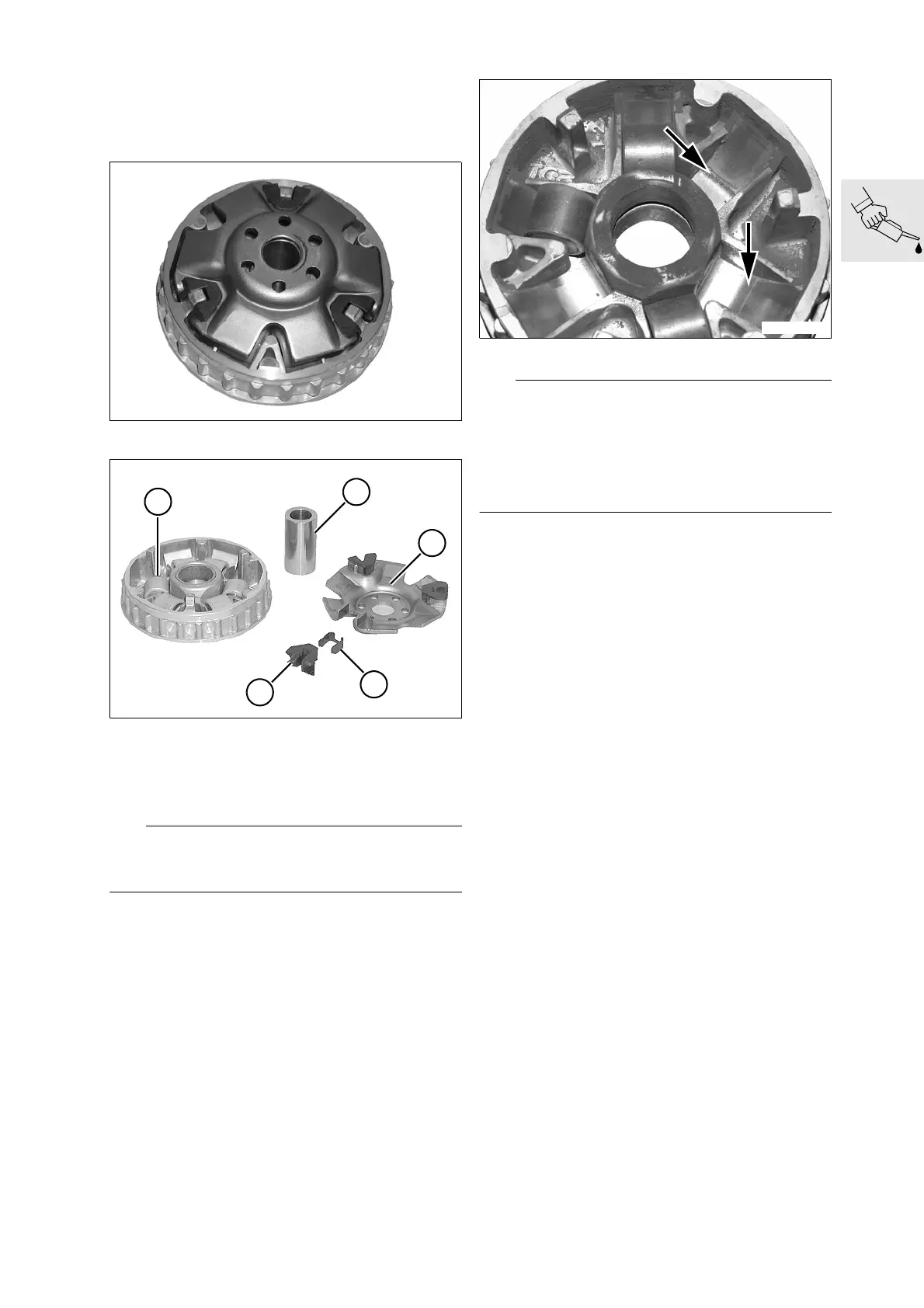

Check and clean drive variator (unlu-
bricated version)
(Inspection II, III) (unlubricated version)
•
Remove transfer element (3), then extract
sliders (5) with spring (4)
•
Remove rollers (1)
•
Clean all parts with shop towels
L
Note:
The bearing tube (2) (spacer) does not have a lubri-
cation passage!
L
Note:
Flat spots on the rollers that do not not exceed the
wear limits are acceptable!
Wear within the specified limits is acceptable!
Visible and palpable contact tracks (arrows) caused
by motion of rollers through their travel paths are ac-
ceptable!
•
Conduct visual inspection
•
Replace drive variator as necessary
C1000450
C1000460
1
3
2
5
4
C1000470
