12.8
12 11 060

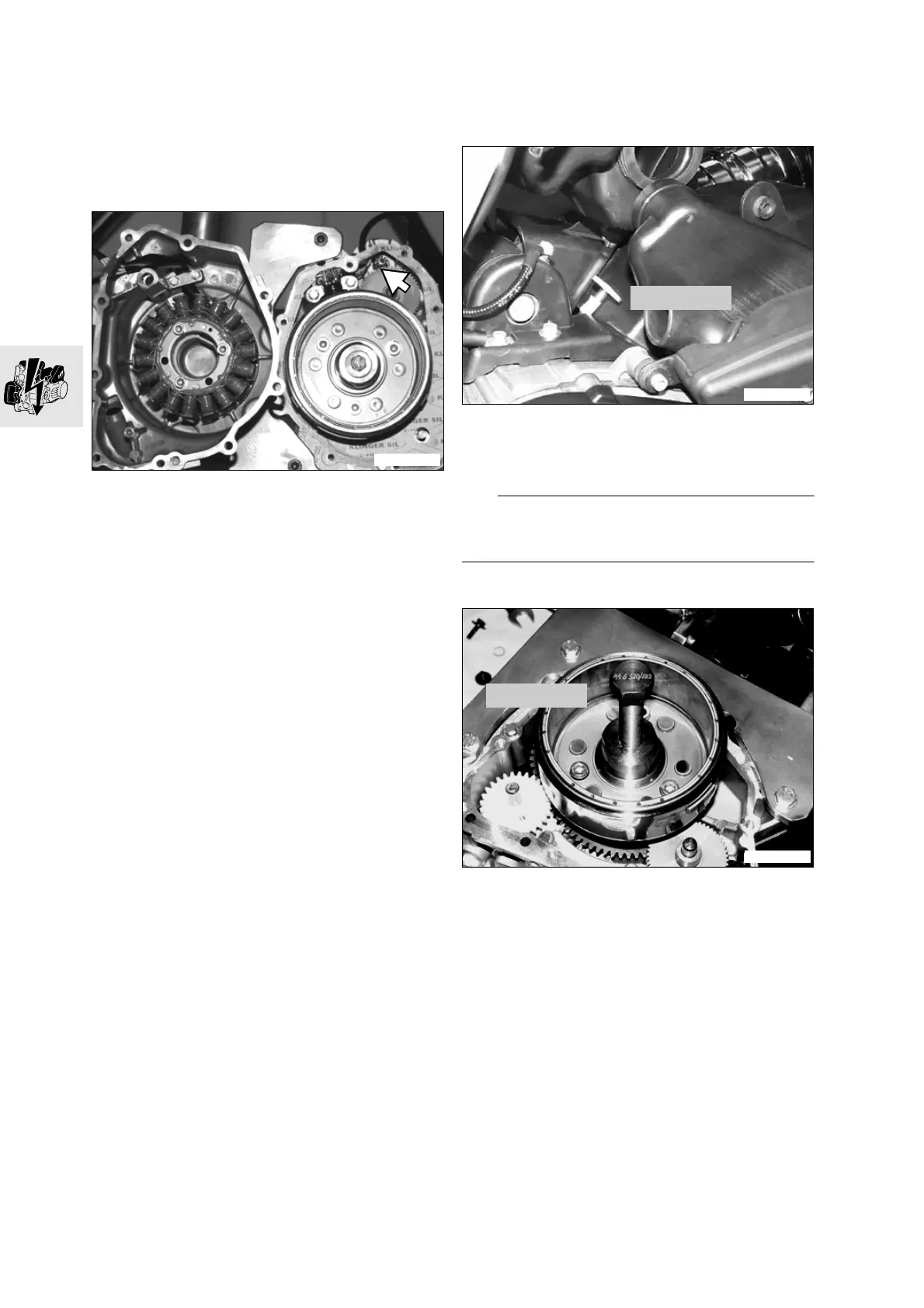

Replacing TDC trigger
•
Remove securing screws and remove ignition
trigger
When installing:
•
Make sure that cables are correctly routed
•
Cable clip must engage centring fixture (arrow) in
cover
•
Coat threads of self-tapping screws with Loctite
prior to installation (Tapite screws)
•
Note direction of installation for trigger
Fluids and lubricants:
Attachment bolt................................. LOCTITE 243
Adjustment specification:
Sensor gap ...........................................8 ± 0.4 mm
................................................. (0.315 ± 0.0157 in)
X
Torque specification:
Tapite bolts (+ Loctite 243) ............................ 6 Nm
Reluctor removal and installation
– Remove ignition trigger cover
– Turn crankshaft to TDC and lock in place with set
bolt,
BMW No. 11 7 651
a
....................................................See Group 11
L
Note:
When replacing the one-way clutch, release the at-
tachment bolts before removing the reluctor!
•
Remove screw
•
Use removal bolt,
BMW No. 11 6 502,
to press
off reluctor with one-way clutch
•
Check taper and keyway of reluctor
C1110200
11 7 651
C1000220
11 6 502
C1110220
