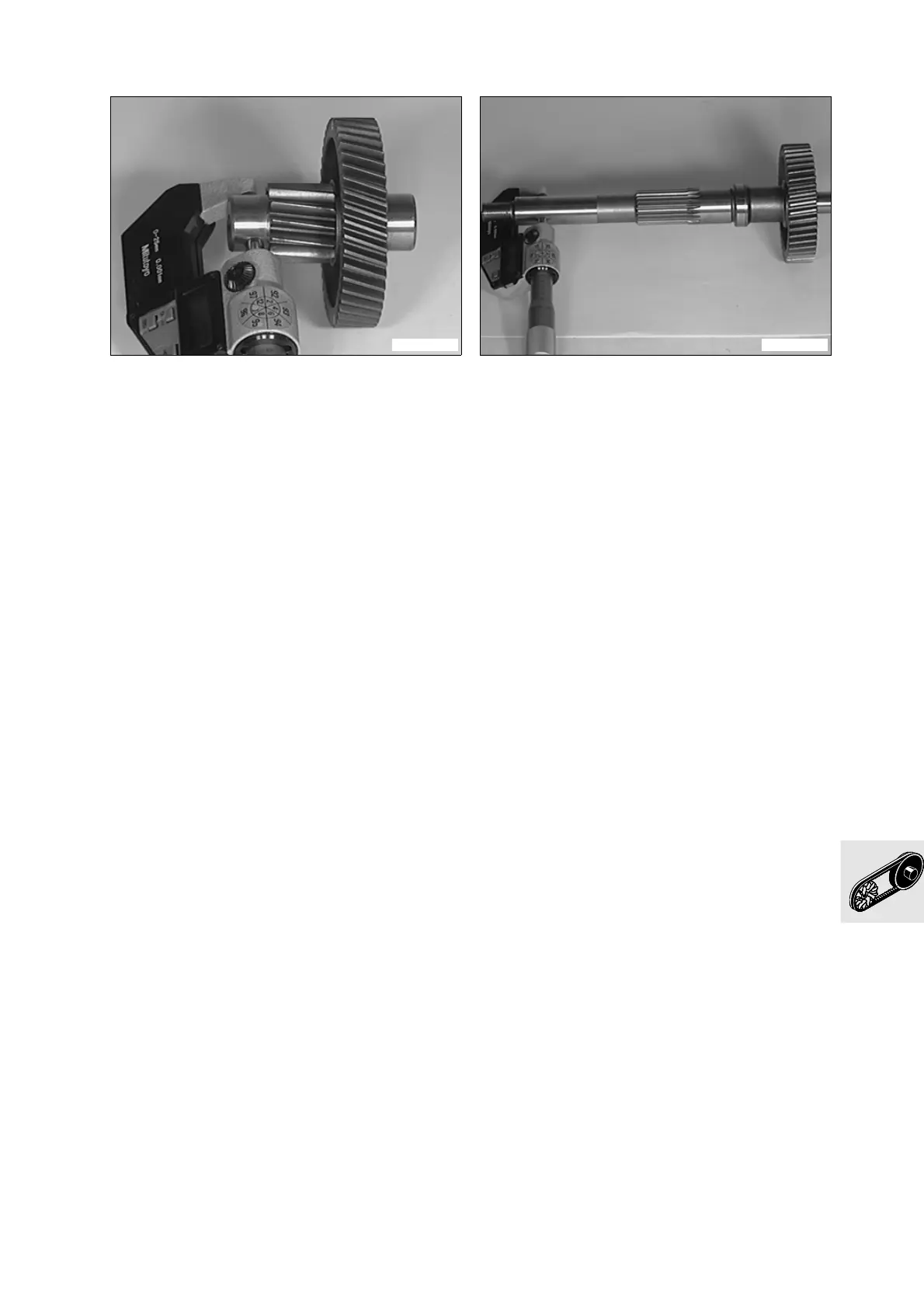

Testing and measuring intermediate shaft

1 Bearing journal, gearbox cover

Ø....................................min. 19.96 mm (0.7858 in)

2 Bearing journal, housing

Ø....................................min. 19.76 mm (0.7779 in)

Testing and measuring output shaft

1 Measure between tips

Approved runout ............. max. 0.06 mm (0.0024 in)

2 Bearing journal, gearbox cover, grooved ball

bearing

Ø....................................min. 14.98 mm (0.5898 in)

3 Bearing journal, housing, grooved ball bearing

Ø....................................min. 24.97 mm (0.9831 in)

4 Track of shaft oil seal

Ø....................................min. 29.92 mm (1.1780 in)
