BMW C1 200 User Manual

17.20
17 11 110
Replacing refill reservoir
– Remove front fairing panel
– Swing the headlight forward and down
a
....................................................See Group 46
•

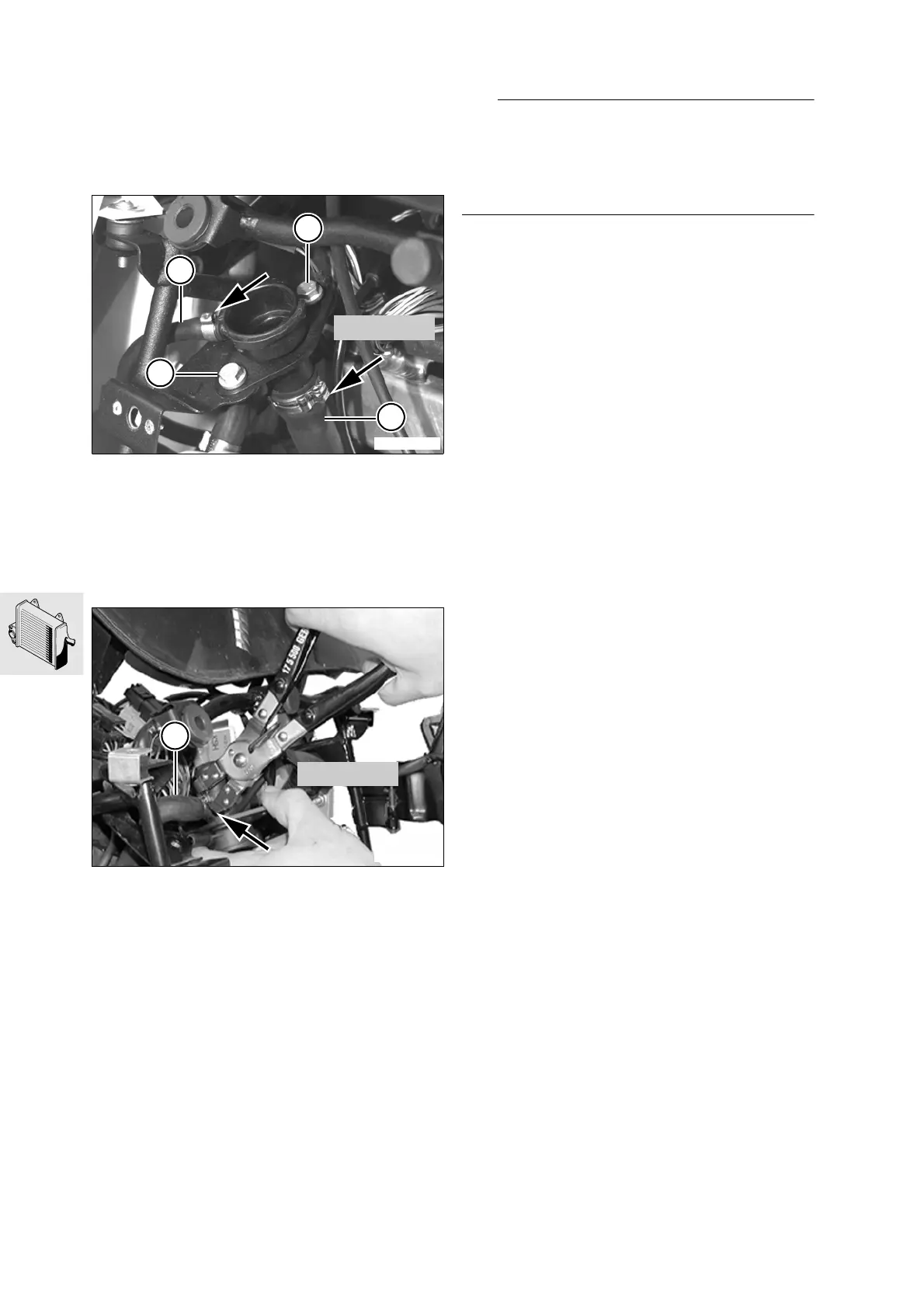

Remove the cap
•
Remove fasteners (2, 4) from refill reservoir
•
Release hose clamps (arrows) with pliers,
BMW No. 17 5 500
•
Pull refill reservoir to one side
•
Disconnect vapour discharge hose (1) from refill
reservoir
•
Disconnect coolant hose (3) from refill reservoir
•
Turn refill reservoir so that hose clamp (arrow)
can be opened
•
Release hose clamp (arrow) with pliers,
BMW No. 17 5 500
•
Disconnect vent hose (1) from refill reservoir
When installing:
e
Attention:
Always make sure that hose clamps are correctly
positioned in order to ensure easy access whenever
necessary.
Make sure the hoses are routed well away from any
components that could cause rubbing and abrasion!
•
Installation is the reverse of the removal proce-
dure
•
Add coolant
•
After running the engine check the coolant level
and top up if necessary
X
Torque specification:
Refill reservoir mount .................................... 9 Nm
C1170290
2
17 5 500
4
1
3
C1170301
17 5 500
1
