61.17
Removing and installing delivery
hose
61 66 000
Hose between pump and
interface at front windscreen
For the sake of clarity, these illustrations show the
vehicle withcertain trim panels removed.
– Remove instrument trim
– Remove front fairing panel
– Swing the headlight forward and down
– Remove sill centre section
a
....................................................See Group 46
L
Note:
Fluid can escape from reservoir.
If necessary, remove the reservoir from its holder
and hold it upright to prevent fluid from leaking out!
•

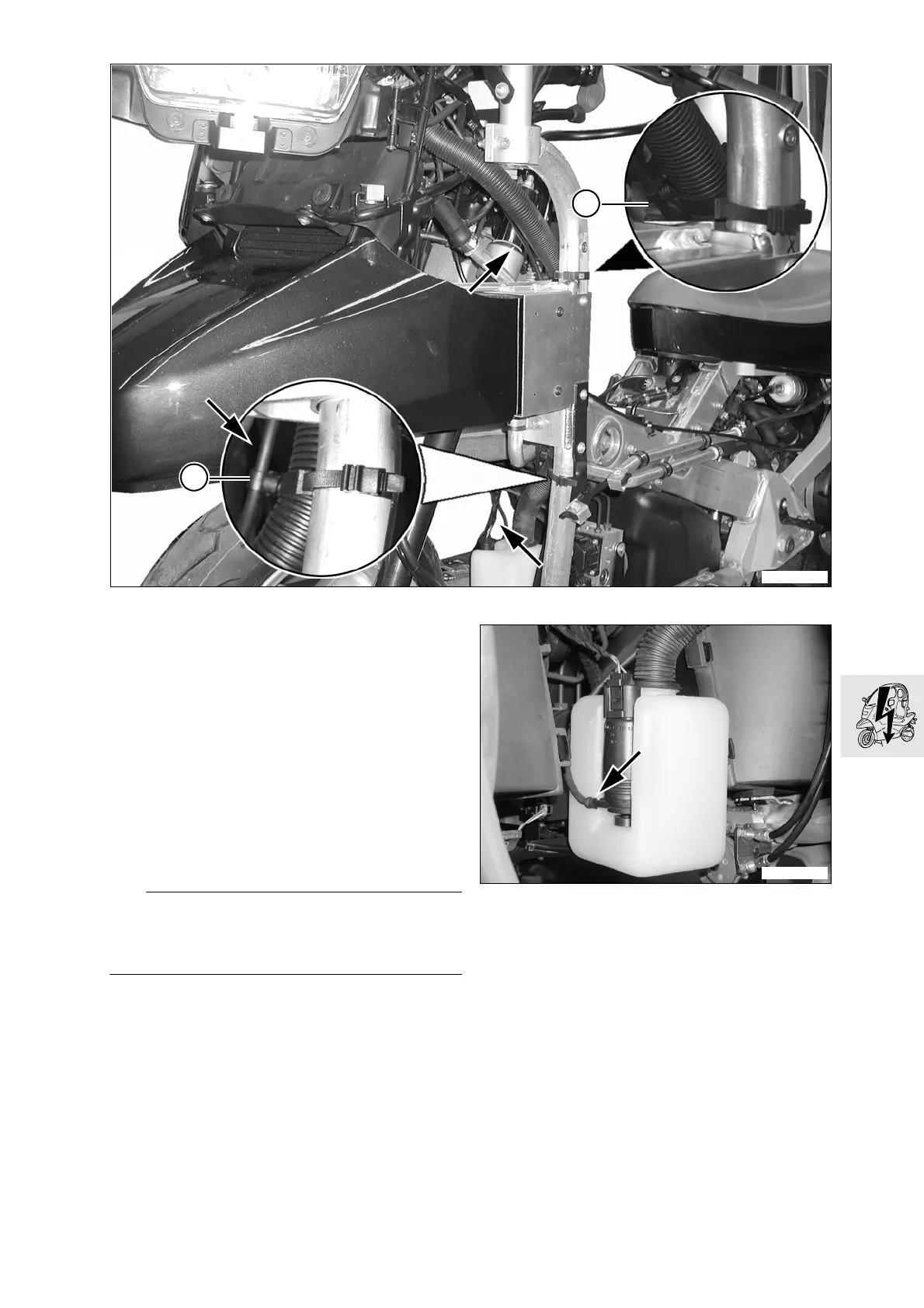

Pull delivery hose (arrows) from pump
•
Turn the handlebars all the way to the right
•
Unclip delivery hose from holders (1, 2) at filler
hose
– Remove wiper arms (
a
61.22)
1
2
C1610181
C1610141
