11.17
11 00 060

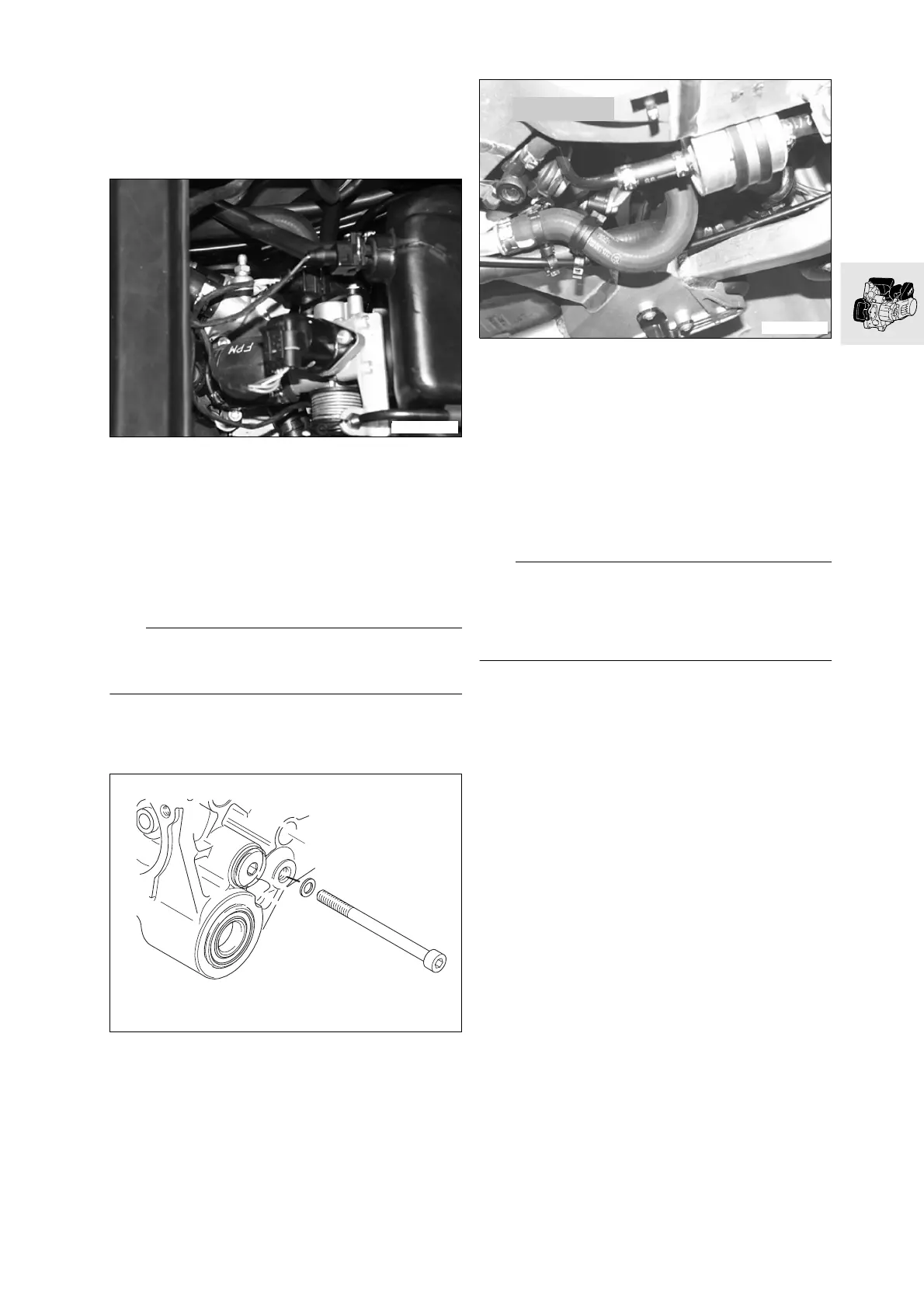

Removing and installing
powertrain cradle
– Remove left service cover
– Remove the right rear side section
•
Disconnect cables and lines:
– Air temperature to intake air silencer
–Oxygen sensor
– Ignition signal sensor
–Alternator
– Idle actuator
– Water temperature
– Starter - and + cables
– Oil pressure switch
L
Note:
Pull both cables through toward the right and disen-
gage the clip on the water hose.
•
Disconnect spark plug cap
•
Remove screws securing injector valve
•
Disengage throttle cable from cam disc
•
Use hose to drain coolant from drain plug
•
Open hose clamps at return hose and in front of
distributor
– Remove silencer (muffler)
a
....................................................See Group 18
– Remove secondary swing arm
a
....................................................See Group 33
•
Remove lug nut
•
Position floor jack on powertrain cradle beneath
gearbox and raise the jack until the rear wheel is
clear of the ground
•
Detach bottom of strut and tie it up out of the way
L
Note:
Swing the brake anchor forward and pull the bush-
ing out of the wheel. Pull brake anchor with brake
caliper carefully away from the brake disc. Remove
brake anchor with brake caliper.
– Remove rear wheel
a
....................................................See Group 36
C1000080
C1110130
C1110140
17 5 500
