32.6
Heated grips
Heated grip, removing and installing
on left side
– Remove handlebar trim
– Remove instrument trim
a
....................................................See Group 46
•

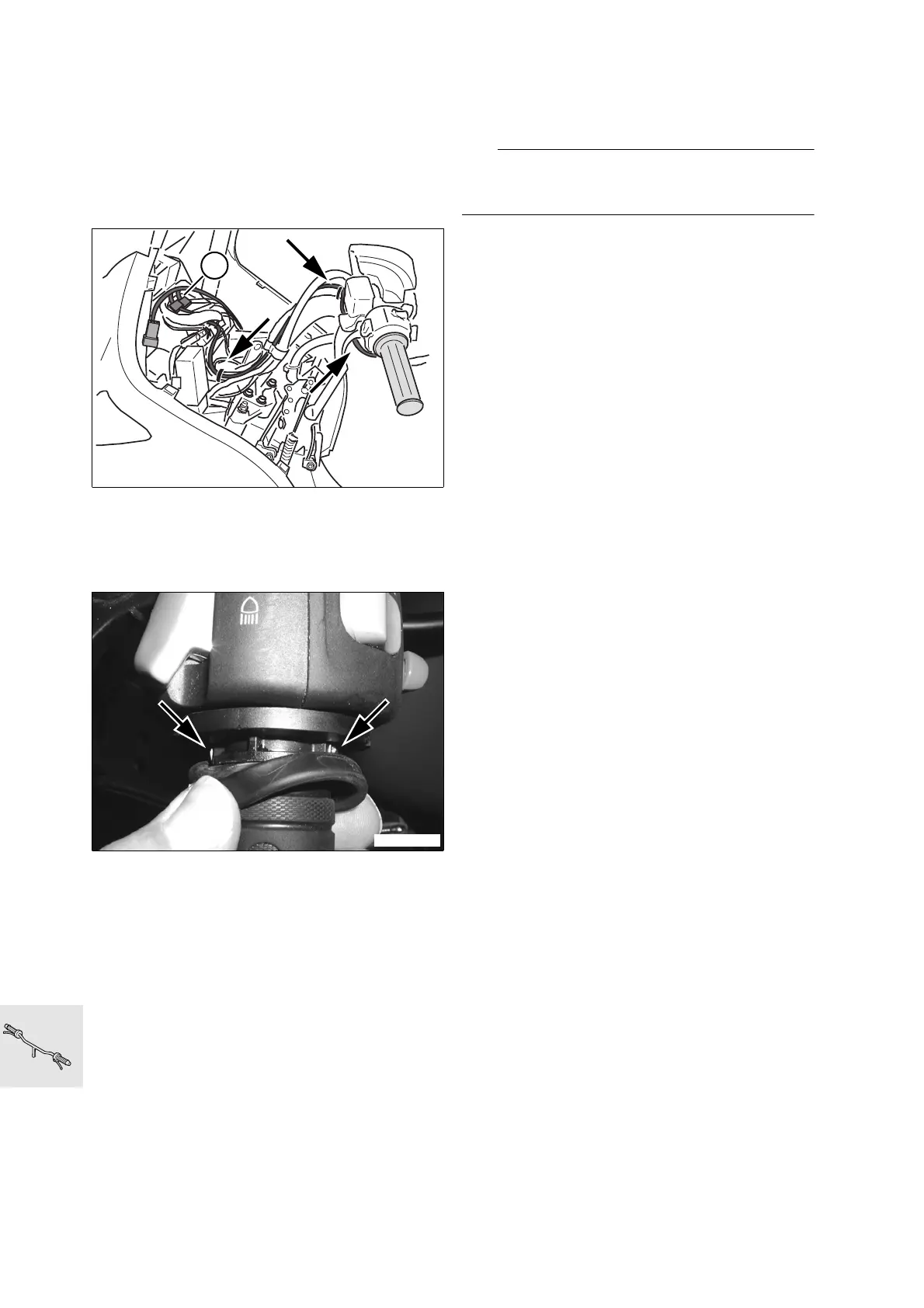

Disconnect plug (1)
•
Open cable ties (arrows)
•
Remove wiring harness from bracket on handle-
bar
•
Undo fasteners (arrows)
•
Remove heated grip
When installing:
•
While installation is basically a reversal of the re-
moval process, careful attention should be di-
rected toward the following:
e
Attention:
Make sure that all lines and cables are correctly
routed!
X
Torque specification:
Mount for combination switch ........................ 4 Nm
C1320130
1
C1320120
