BMW C1 200 User Manual

21.7
Install clutch
•

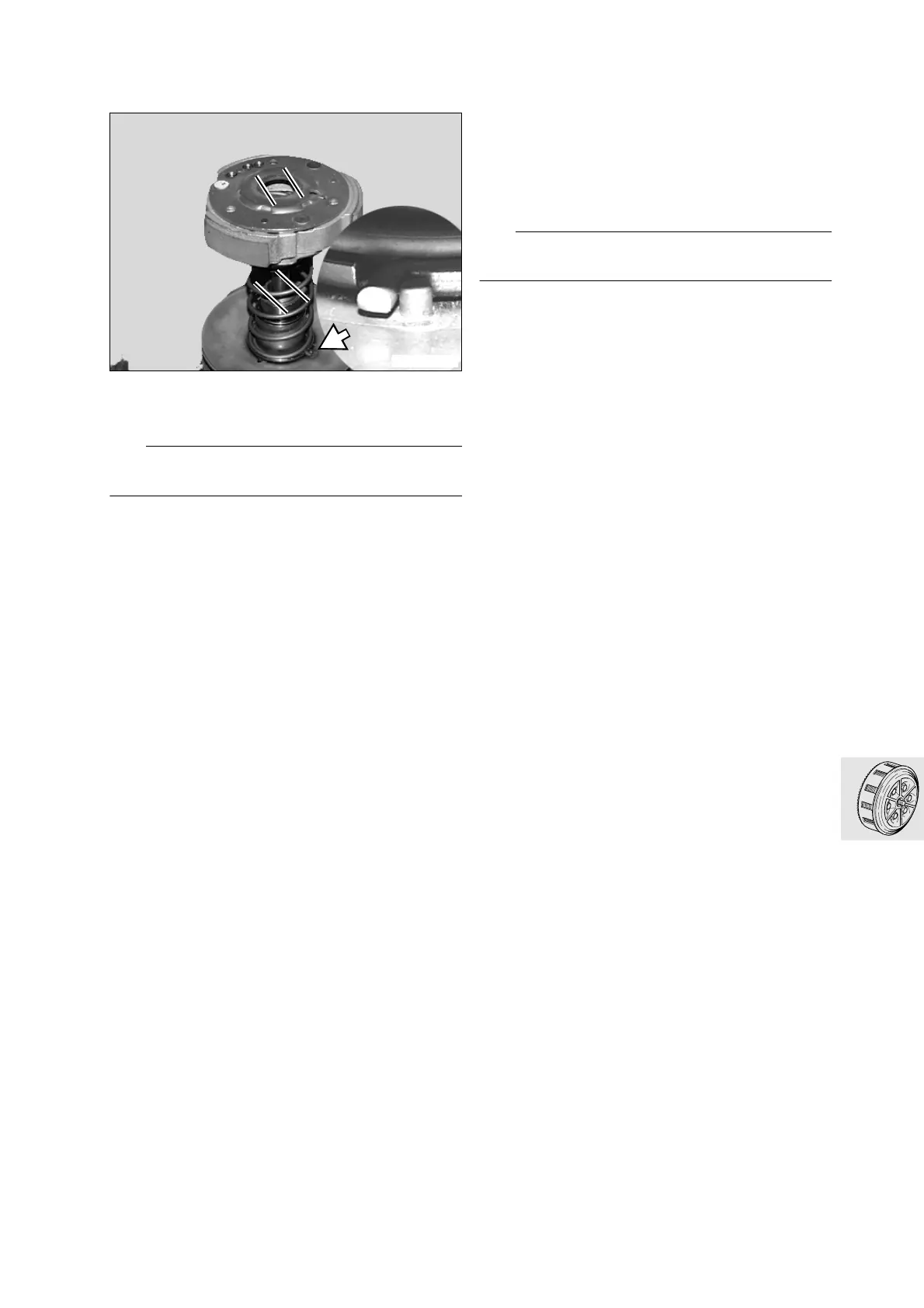

Position spring on pin (arrow) of guide bow
•
Attach clutch at end of spring
e
Attention:
Assembly is spring-loaded - injury hazard!
•
Install retainer,
BMW No. 11 7 641
•
Turn clutch (parallel lines) counter-clockwise un-
til flats are aligned
•
Allow hooks on retainer to snap into place on the
bottom of the pulley
•
Apply Loctite to threads on locknut
•
Use narrow socket,
BMW No. 11 7 643,
to tight-
en nut
Fluids and lubricants:
Locknut..............................................LOCTITE 243
X
Torque specification:
Nut............................................................... 50 Nm
Vent cover...................................................... 9 Nm
Variator cover............................................... 10 Nm
Clutch drum ................................................. 60 Nm
L
Note:
Installing driven variator (
a
24.9).
C110650

BMW C1 200 Specifications

General

Displacement	176 cc
Fuel System	Electronic Fuel Injection
Front Suspension	Telescopic fork
Engine Type	Single-cylinder, 4-stroke
Transmission	CVT
Brakes	Disc
Torque	17 Nm at 6, 500 rpm
Dry Weight	139 kg
Front Brake	Single disc
Rear Brake	Single disc
Fuel Capacity	9.5 liters
