BMW C1 200 - Page 229

31.9
•

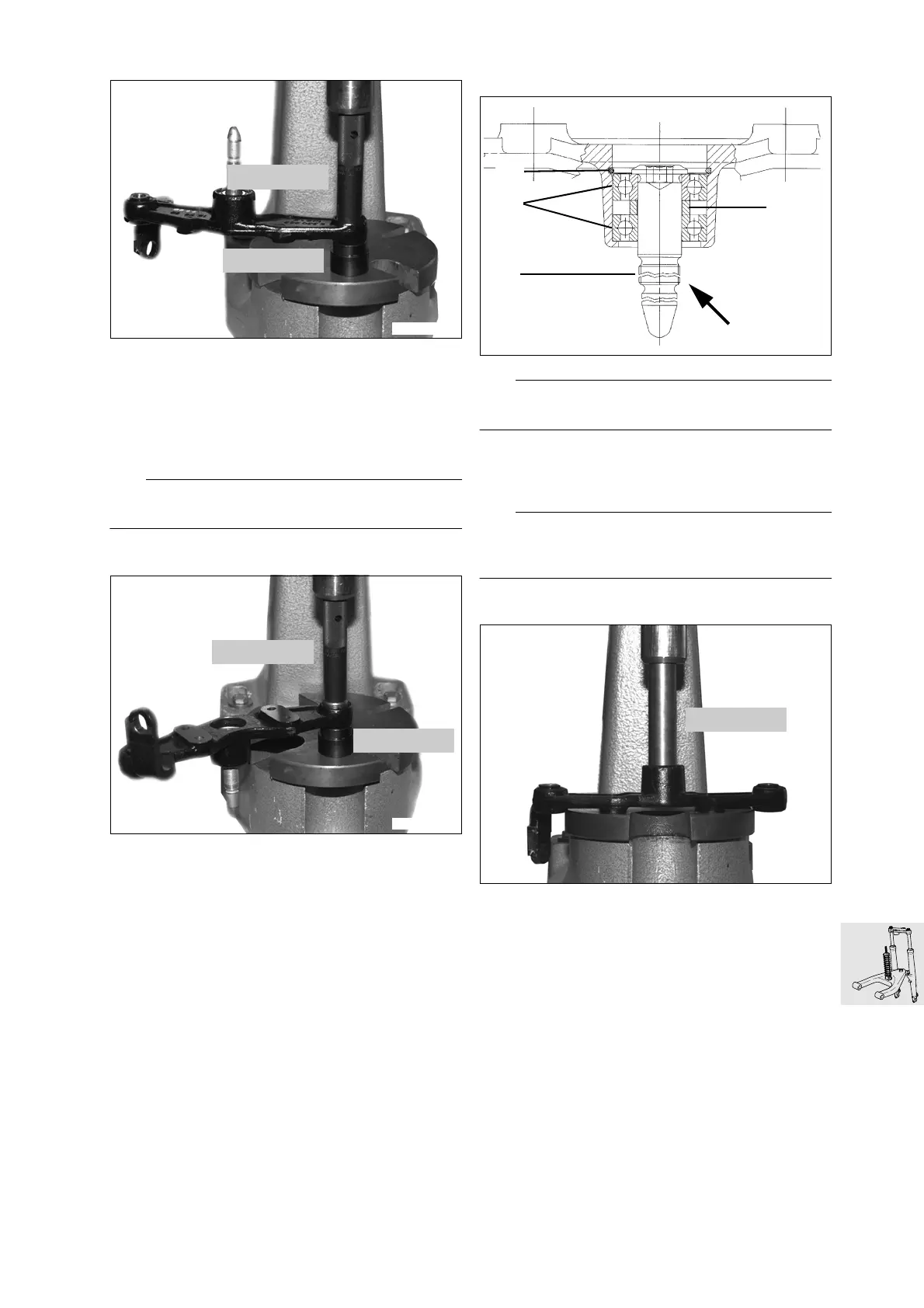

Press out pot-type joint (3) with dust boot (9) us-
ing mandrel,
BMW No. 31 5 661
, and sleeve,
BMW No. 31 5 662
Installing pot-type joints
L
Note:
Always fit new dust boots (2, 9)!
•
Remove dust boot (9) from new pot-type joint
•
Press pot-type joint bearing in against seat (3)
with drift punch,
BMW No.31 5 661
, and sleeve,
BMW No. 31 5 662
•
Install dust boot (9)
•
Install stop ring (1)
•
Install dust boot (2)
31 42 529 Removing ball bearing with stud
L
Note:
Take care not to damage threads (arrow)!
•
Remove lock ring (5)
•
Heat fork cross brace to 100 °C (212°F)
d
Warning:
To avoid injury always wear protective leather gloves
when handling heated parts!
•
Press out stud (8)
•
Press out ball bearing (6) with sleeve,
BMW No. 31 6 533
•
Press ball bearing (6) and spacer sleeve (7) off
stud (8)
C1310090
31 5 661
31 5 662
C1310100
31 5 661
31 5 662
8
5
7
6
C1310110
31 6 533
C1310120
