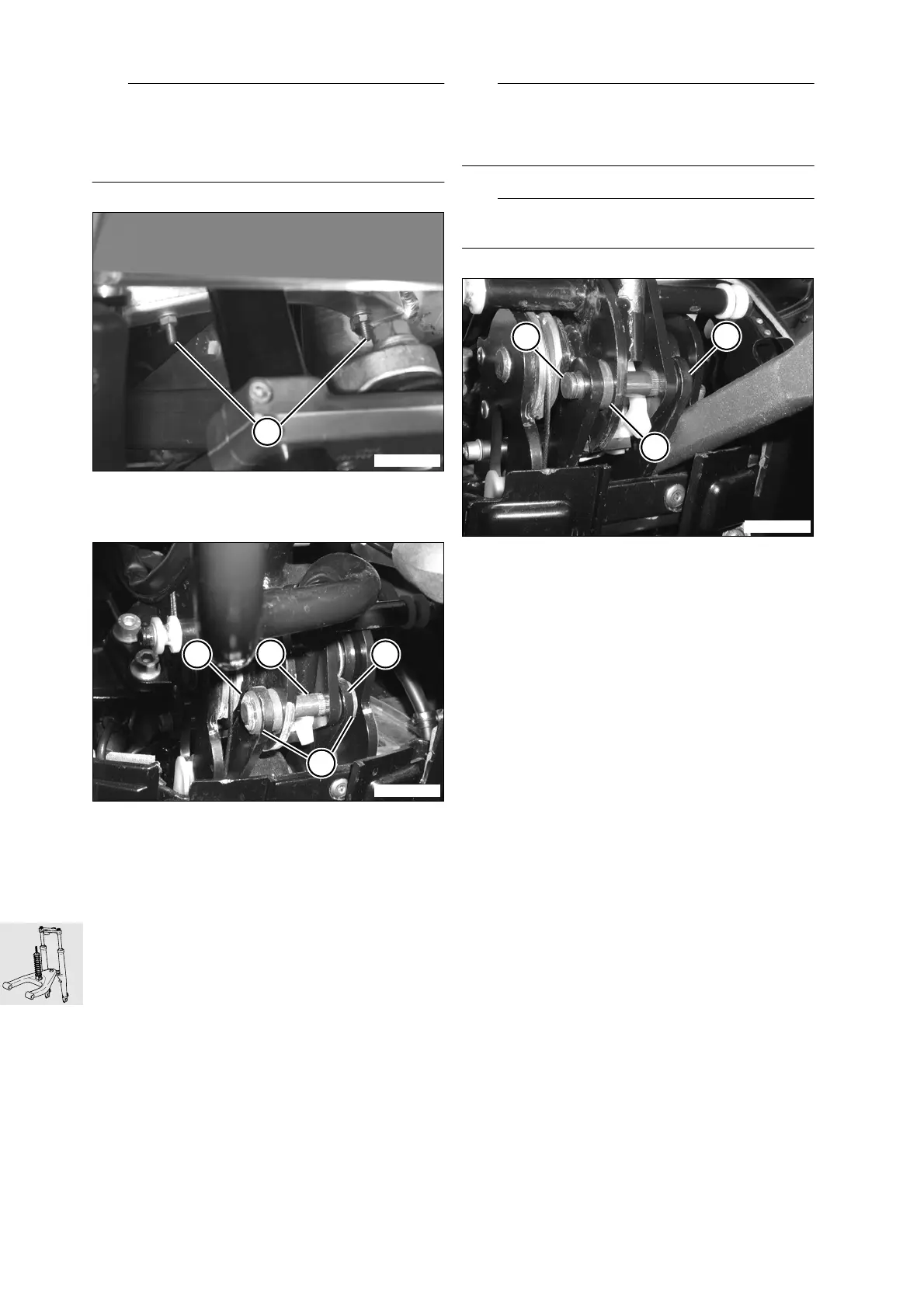

BMW C1 200 User Manual

31.20
L
Note:
On the new version of the articulated joint only one
spring is installed, on the right. The operations for
removing the left spring do not apply to the new ver-
sion!
•
Release eye bolt attachment(s) (1)
•
Detach spring(s) at top
•
Easy-lift mechanism - to snap the large lever into
position at the top, first move the lever all the way
to the top, then move it down
•
Remove circlips (1) and washers (4)
e
Attention:
When knocking out studs - do not damage groove
for circlips!
Do not lose washers!
L
Note:
The studs are knurled on the right side!
•
Support thrust washer (3)
•
Knock stud (2) to the right to remove
•
Remove washer (5)
C1460460
1
C1310320
4
1 3
2
C1310330
5
3
2

BMW C1 200 Specifications

General

Displacement	176 cc
Fuel System	Electronic Fuel Injection
Front Suspension	Telescopic fork
Engine Type	Single-cylinder, 4-stroke
Transmission	CVT
Brakes	Disc
Torque	17 Nm at 6, 500 rpm
Dry Weight	139 kg
Front Brake	Single disc
Rear Brake	Single disc
Fuel Capacity	9.5 liters
