46.34
46 52 005

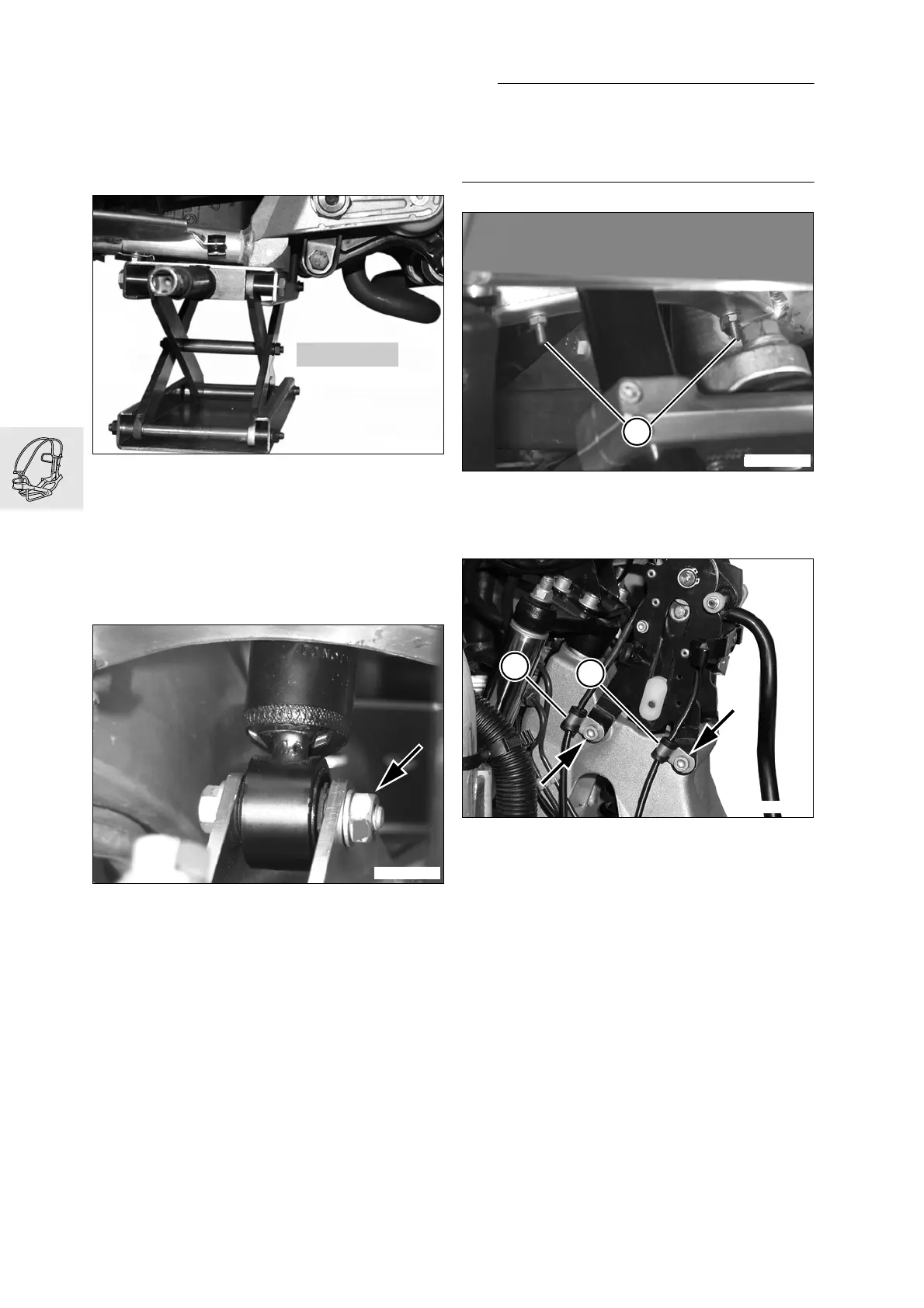

Removing and installing artic-
ulated joint mechanism
– Remove instrument trim
– Remove top and left tunnel panels
– Remove knee pad
– Remove running board centre section
•
Install the hoist,
BMW No. 00 1 570,
so that the
support stand can be retracted
•
Use hoist,
BMW No. 00 1 570,
to raise C1 until
the front wheel is clear of the ground and the C1
is standing securely
•
Lower the front wheel (easy-lift mechanism - start
by moving the large lever up (5) then moving it
down)
•
Remove fastener (arrow) securing spring strut to
leading coupling
L
Note:
The new version of the articulated joint mechanism
incorporates but a single spring, on the right (8). The
operations associated with removal of the left-side
spring are thus redundant on the new version!
•
Release eye bolt(s) (6)
•
Detach spring(s)
•
Mark left/right springs as necessary
•
Remove 2 fasteners (arrows) of articulated-lever
mechanism
•
Remove Bowden cable retainers (4,9) rear and
front
C1130050
00 1 570
C1310200
C1460460
6
C1460471
9
4
