Replacing front left/right turn
signal bulb
The procedure for the left turn signal is described
below. The procedure for replacing the right turn
signal is essentially the same.
e
Attention:
Always switch off the ignition before changing bulbs!
L
Note:
Never touch inside of reflector and glass on bulbs
with bare fingers!
•

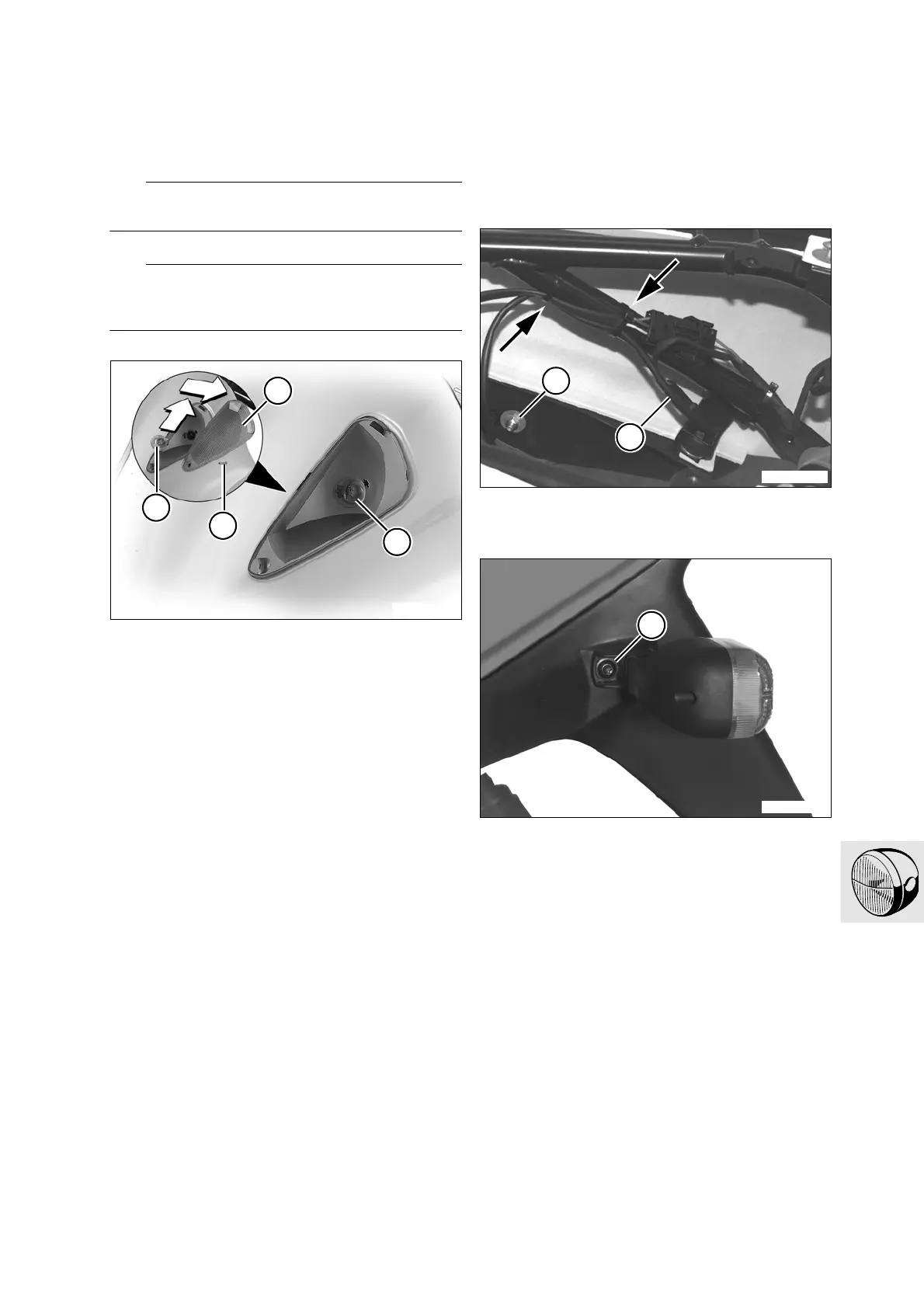

Remove fastener (2)
•
Remove lens (1)
•
Press bulb (3) back and disengage by turning it
counter-clockwise
•
Remove bulb
When installing:
•
Installation is the reverse of the removal proce-
dure
X
Torque specification:
Lens attachment ............................................ 2 Nm
63 23 020
Replacing left/right rear turn
signal
The procedure for the left turn signal is described
below. The procedure for replacing the right turn
signal is essentially the same.
– Remove the rear storage compartment
a
....................................................See Group 46
•
Open cable ties (arrows)
•
Disconnect plug (2)
•
Remove fastener (1)
•
Remove turn signal
When installing:
•
Installation is the reverse of the removal proce-
dure
X
Torque specification:
Turn signal attachment................................... 3 Nm
C1630020
3
1
2
3
C1630100
2
1
C1630110
1
