Bosch DIVAR AN 5000 User Manual

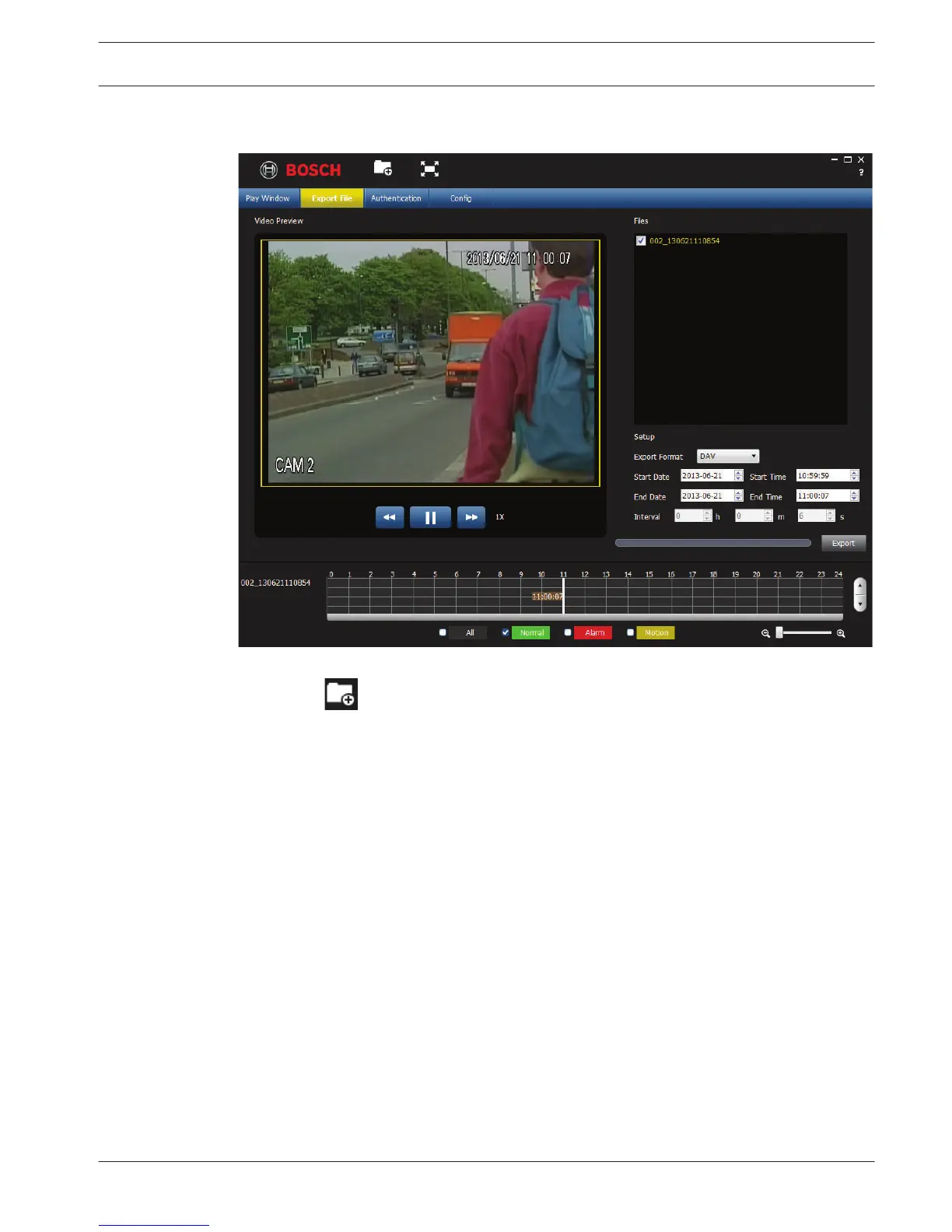

Export file
Export a file as follows:
1. Choose and open a file to be exported.
2. If required, preview the file on the left screen by selecting the check box for the chosen
file (if the file has multiple channels, select the check box for the required channel). Use
the play, pause, and fast forward/reverse buttons as required.
3. You can also overview the recording contents using the grid in the bottom of the screen.
4. When you have decided on the recording segment that you wish to export, fill in the
setup fields (Export format, Start date, End date, Start time, End time, Interval) by
manually entering the field values. Or use the grid in the bottom of the screen to select
start and end times.
5. Press <Start Export>.
6. In the ‘Save as’ dialog box, choose a directory location and a file name for the export, and
press <Save>.
A progress percentage is displayed during the export
If required, press <Stop Export> to halt the export
7. When prompted, export the end of the file by pressing <OK>.
9.3
DIVAR AN 3000 / DIVAR AN 5000 Archive Player operation | en 125
Bosch Security Systems Operations Manual 2014.10 | 2.0 | AM18-Q0669

Bosch DIVAR AN 5000 Specifications

General

Motion sensor	Yes
Total storage capacity	2000 GB
Video compression formats	H.264
Analog signal format system	NTSC, PAL
Compatible operating systems	Windows XP, Windows Vista, Windows 7.
Playback resolutions supported	960x576, 960x480, 704x576, 704x480, 704x288, 704x240, 352x288, 352x240, 176x144, 176x120
Audio input	4
BNC input ports	16
USB 2.0 ports quantity	1
Ethernet interface type	Gigabit Ethernet
HDD interface	Serial ATA
Maximum HDD capacity	3000 GB
Power requirements	100-240VAC 50-60Hz
Optical drive included	No
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 93 %

Weight and Dimensions

Dimensions (WxDxH)	440 x 420 x 70 mm
