Text data overlay
This function includes Sniffer, information analysis and title overlay function. The Sniffer mode
can be either COM or NET (network).
NET Type
The network type interface is shown below.

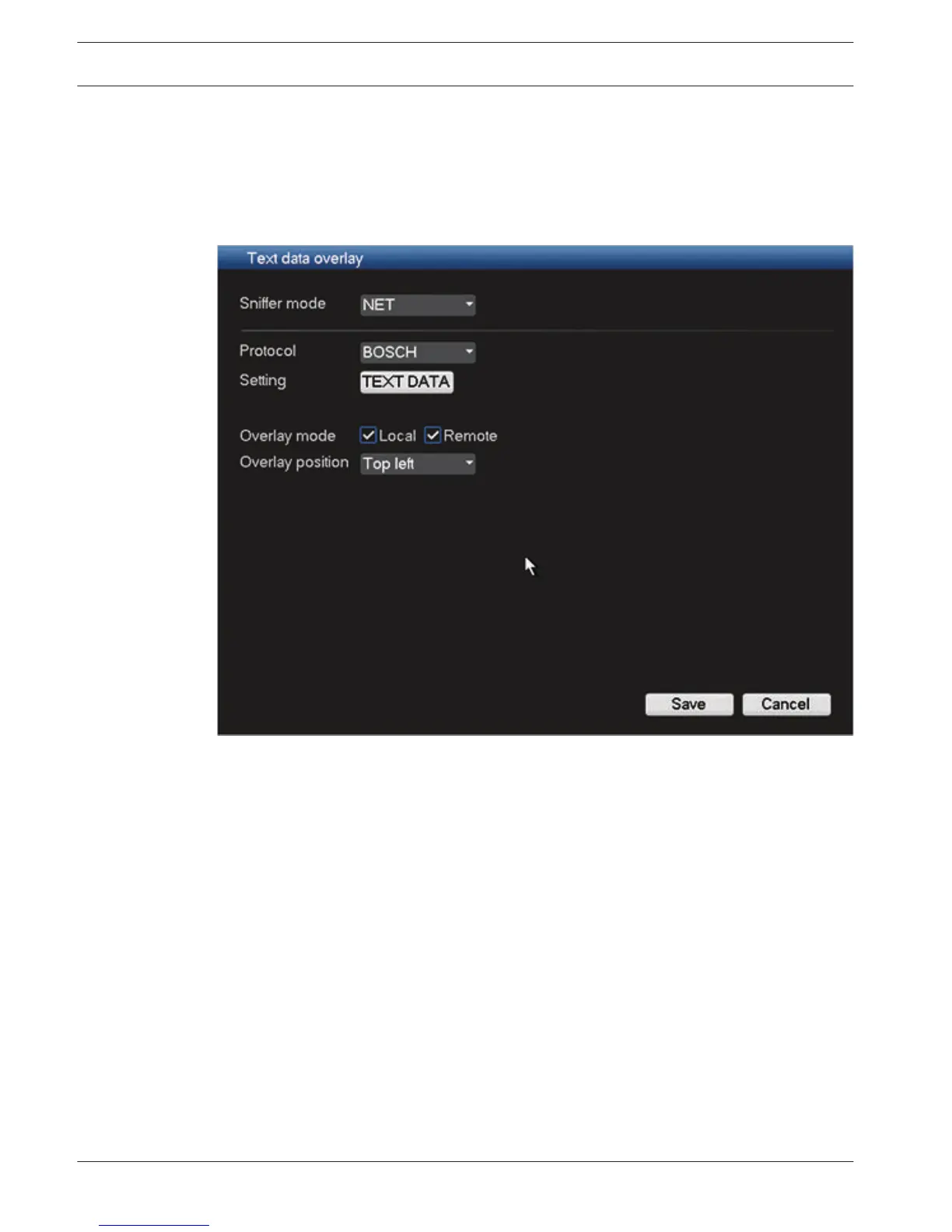

Figure 6.39: Text data overlay NET
– Protocol: Currently only the BOSCH protocol is available
– Setting: Click this button to access the ATM/POS screen – see below.
– Overlay mode: Choose from:
– Local - overlay the card number in the local monitor video
– Remote - overlay the record file
– Overlay position: Choose from Top left, Bottom left, Top right or Bottom right
COM Type
– Currently only the BOSCH protocol is available
– Setting: Click <COM setting> for a new interface as shown in the ‘Serial port’ interface.
See Serial port, page 45.
– Overlay channel: Select the channel(s) you want to overlay
– Overlay mode: Choose from:
– Local - overlay the card number in the local monitor video
– Remote - overlay the record file
– Overlay position: Choose from Top left, Bottom left, Top right or Bottom right
6.20
80 en | Configuration DIVAR AN 3000 / DIVAR AN 5000
2014.10 | 2.0 | AM18-Q0669 Operations Manual Bosch Security Systems

Bosch DIVAR AN 5000 Specifications

General

Motion sensor	Yes
Total storage capacity	2000 GB
Video compression formats	H.264
Analog signal format system	NTSC, PAL
Compatible operating systems	Windows XP, Windows Vista, Windows 7.
Playback resolutions supported	960x576, 960x480, 704x576, 704x480, 704x288, 704x240, 352x288, 352x240, 176x144, 176x120
Audio input	4
BNC input ports	16
USB 2.0 ports quantity	1
Ethernet interface type	Gigabit Ethernet
HDD interface	Serial ATA
Maximum HDD capacity	3000 GB
Power requirements	100-240VAC 50-60Hz
Optical drive included	No
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 93 %

Weight and Dimensions

Dimensions (WxDxH)	440 x 420 x 70 mm
