Bosch DIVAR AN 5000 User Manual

Pan/Tilt/Zoom

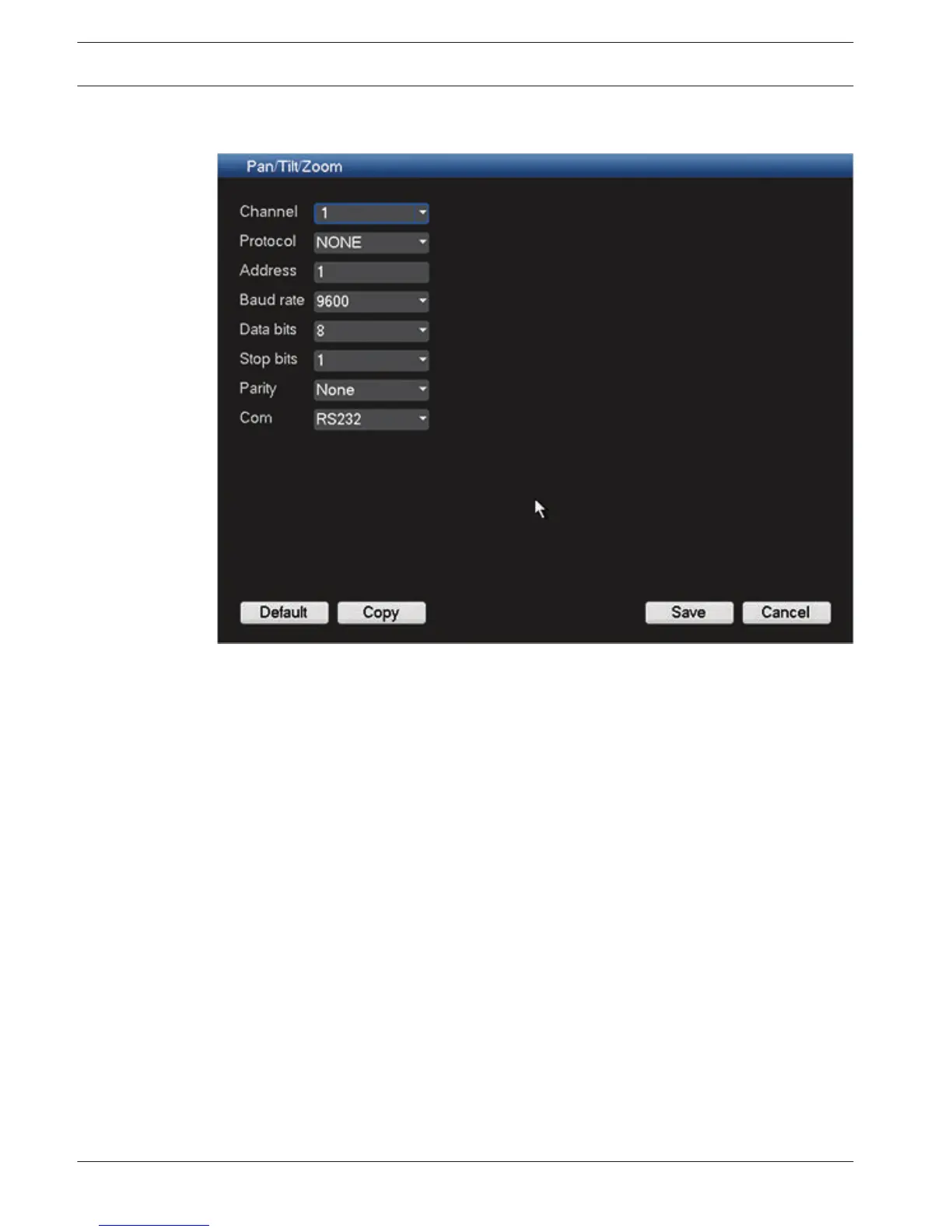

Figure 6.24: Pan/Tilt/Zoom
The pan/tilt/zoom setup includes the following items.
– Channel - select first the applicable channel (these settings can later be copied to other
channels using <Copy>.
– Protocol: Select corresponding PTZ protocol such as BOSCH or PELCOD.
– Address: input corresponding PTZ address.
– Baud rate: Select baud rate.
– Data bit: Select data bit.
– Stop bit: Select stop bit.
– Parity: There are three choices: none/odd/even.
After completing setup, click <Save> to go back to the previous menu.
For a detailed description of how the PTZ is operated, please refer to PTZ, page 95.
6.9
64 en | Configuration DIVAR AN 3000 / DIVAR AN 5000
2014.10 | 2.0 | AM18-Q0669 Operations Manual Bosch Security Systems

Bosch DIVAR AN 5000 Specifications

General

Motion sensor	Yes
Total storage capacity	2000 GB
Video compression formats	H.264
Analog signal format system	NTSC, PAL
Compatible operating systems	Windows XP, Windows Vista, Windows 7.
Playback resolutions supported	960x576, 960x480, 704x576, 704x480, 704x288, 704x240, 352x288, 352x240, 176x144, 176x120
Audio input	4
BNC input ports	16
USB 2.0 ports quantity	1
Ethernet interface type	Gigabit Ethernet
HDD interface	Serial ATA
Maximum HDD capacity	3000 GB
Power requirements	100-240VAC 50-60Hz
Optical drive included	No
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 93 %

Weight and Dimensions

Dimensions (WxDxH)	440 x 420 x 70 mm
