Specifications
Output signal: Composite video 1 Vpp, 75 ohm, Sync. 0.3 Vpp ±10%
Resolution: 704x576 PAL, 704x480 NTSC
Connector type: BNC
HDMI
Connect the unit to a HDMI equivalent monitor using standard HDMI cable.
Specifications
Output signal: Digital RGB, 165 MHz
Resolution: 1920x1080, 1280x1024, 1280x720, 1024x768
Connector type: HDMI
Keyboard connection (only DIVAR 5000)
The keyboard connection is used to connect a Bosch Intuikey keyboard to a DIVAR AN
5000 For short distances (up to 30 m), standard 6-core telecom flat cable can be used to
supply signal connections for the keyboard (LTC 8558/00). Always use the Keyboard Extension
Kit (LTC 8557) for distances over 30 m between the keyboard and the DVR; this kit provides
junction boxes and cables. The appropriate power supply to externally power the keyboard
must be purchased separately. The recommended cable type is Belden 8760 or equivalent.
Connection
There are 2 possible ways to connect your Bosch Intuikey keyboard:
– Using the RJ11 adaptor – see following figure.

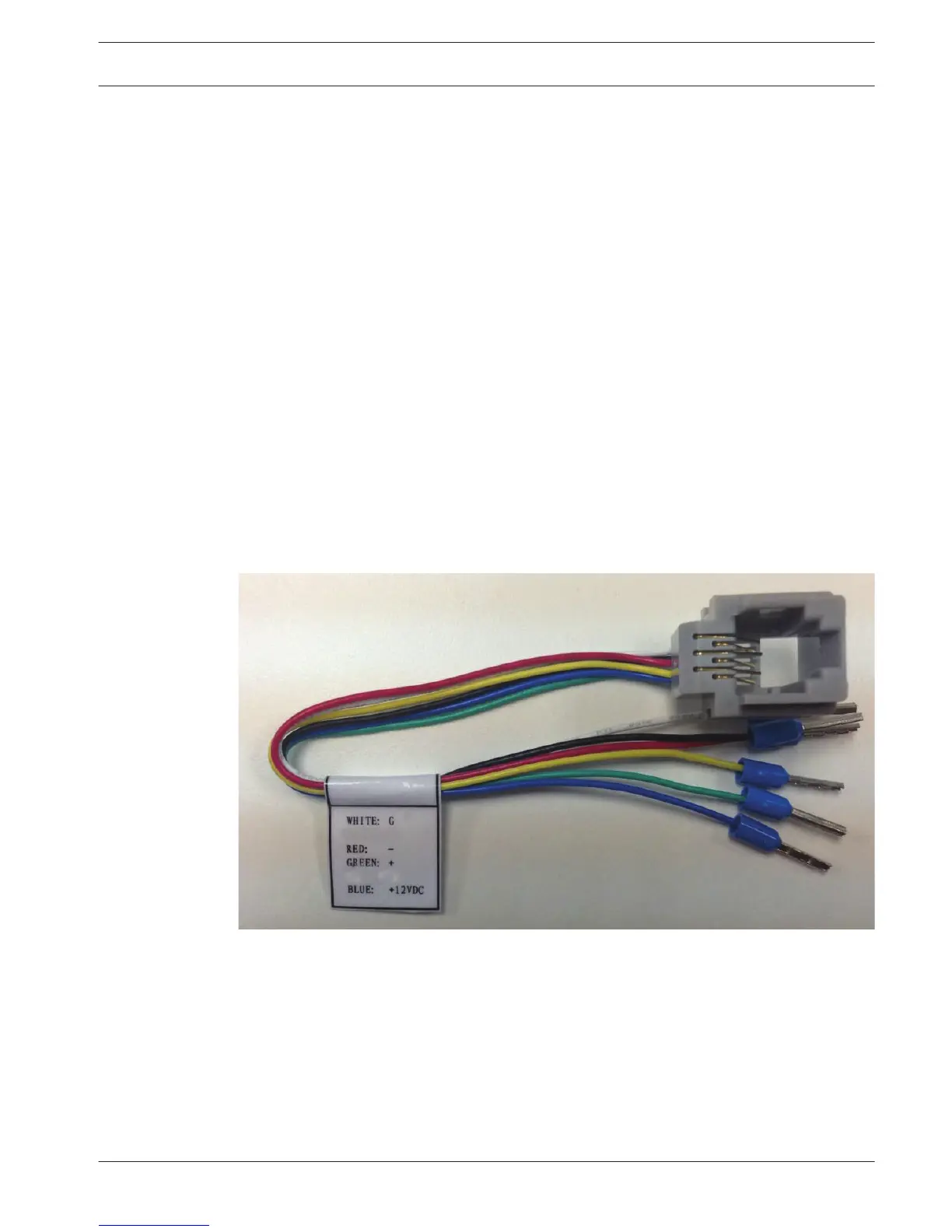

Figure 5.1: RJ11 adaptor
– Or, connect the keyboard RJ11 wires to the Keyboard connector on the DIVAR back
panel as shown in the following figure.
5.3.3
5.4
DIVAR AN 3000 / DIVAR AN 5000 Hardware setup | en 29
Bosch Security Systems Operations Manual 2014.10 | 2.0 | AM18-Q0669
