Serial port

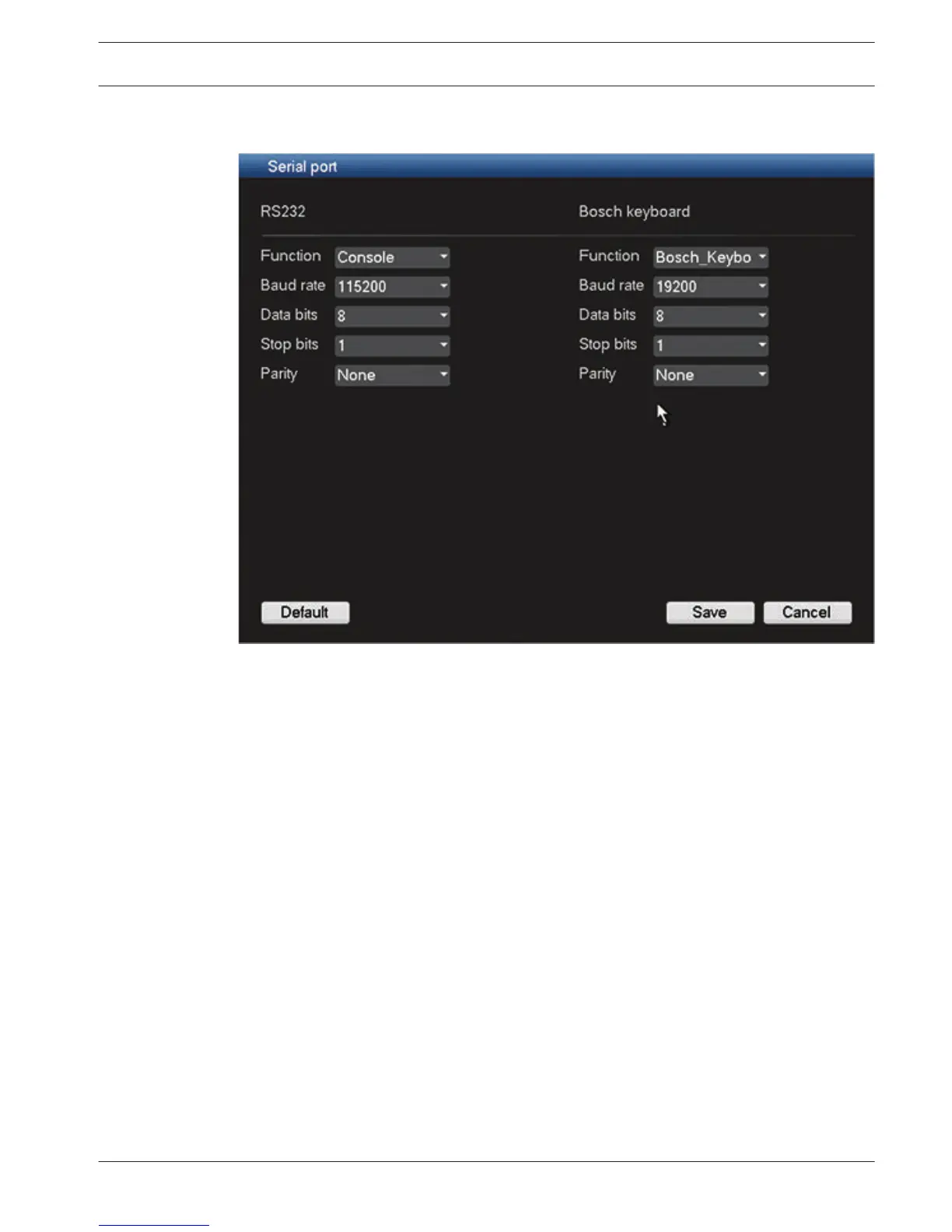

Figure 6.8: Serial port
Use the Serial port menu to configure the connections for a Console connected to the RS232
port, and an optional Bosch keyboard (Intuikey series) connected to the extra RS485 port
(DIVAR AN 5000 only). Configure the settings for Console or Bosch keyboard as described
below.
RS232 serial port
– Function - Console for the COM or end user software to upgrade or debug the program
– Baud rate: from 1200 to 115200 (default)
– Data bit: from 5 to 8 (default)
– Stop bit: 1 (default) or 2
– Parity: none/odd/even/space/mark (default is none)
Note: If the console connection to the RS232 port is not working, the RS232 port may already
be selected for PTZ control – this is done in the PTZ configuration screen (see Pan/Tilt/Zoom,
page 64). If so, go first to this screen and reset the Com connection field to RS485.
Bosch keyboard
– Function - for the special Bosch Intuikey series keyboard
– Baud rate: from 1200 to 115200 (default is 19200)
– Data bit: from 5 to 8 (default)
– Stop bit: 1/2 (default is 1)
– Parity: none/odd/even/space/mark (default is none)
Press <Save> to enter changes and go back to the previous menu.
