– Alarm
SNMP

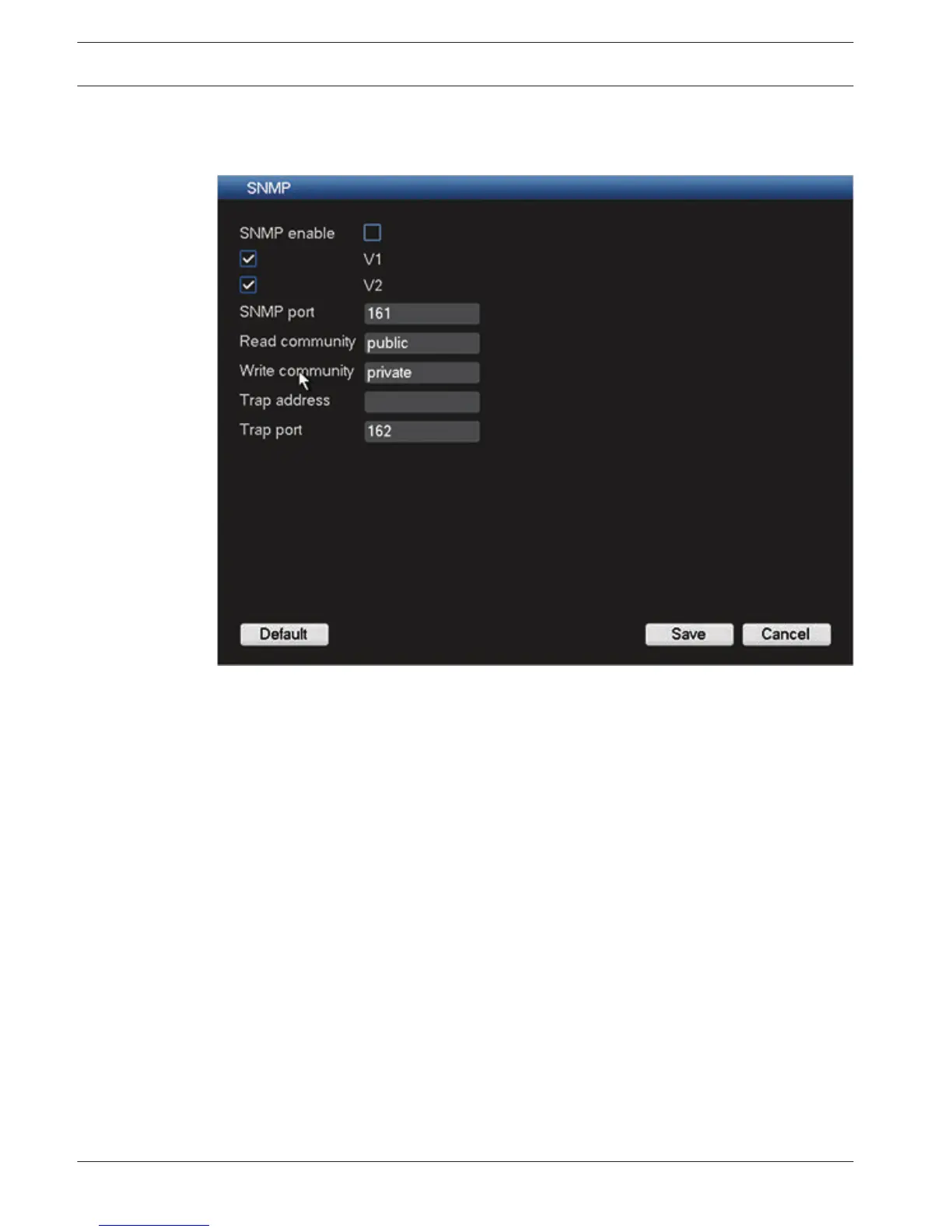

Figure 6.18: Network - SNMP
SNMP (Simple Network Management Protocol) provides the basic network management frame
of the network management system.
Here you require software tools (MIB Builder and MG-SOFT MIB Browser), plus two MIB files
to connect to the device (contact Bosch or your system administrator for more details on
these tools).
Use the following steps to configure:
1. Select the ‘SNMP enable’ box.
2. Enter the IP address of the PC that is running the software in the field ‘Trap address’.
3. Use defaults for the remaining items.
4. Compile the two MIB files using ‘MIB Builder’.
5. Run ‘MG-SOFT MIB Browser’ to load the compiled MIB files to the software.
6. Input the device IP you want to manage in the ‘MG-SOFT MIB Browser’ (set the
corresponding version for future reference).
7. Open the tree list on the MG-SOFT MIB Browser to view the device configuration (how
many video channels, audio channels, application version, etc.).
6.6.9
56 en | Configuration DIVAR AN 3000 / DIVAR AN 5000
2014.10 | 2.0 | AM18-Q0669 Operations Manual Bosch Security Systems

Bosch DIVAR AN 5000 Specifications

General

Motion sensor	Yes
Total storage capacity	2000 GB
Video compression formats	H.264
Analog signal format system	NTSC, PAL
Compatible operating systems	Windows XP, Windows Vista, Windows 7.
Playback resolutions supported	960x576, 960x480, 704x576, 704x480, 704x288, 704x240, 352x288, 352x240, 176x144, 176x120
Audio input	4
BNC input ports	16
USB 2.0 ports quantity	1
Ethernet interface type	Gigabit Ethernet
HDD interface	Serial ATA
Maximum HDD capacity	3000 GB
Power requirements	100-240VAC 50-60Hz
Optical drive included	No
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 93 %

Weight and Dimensions

Dimensions (WxDxH)	440 x 420 x 70 mm
