– <Snapshot> - see Snapshot, page 41
Overlay
Click <Overlay> for the following interface:

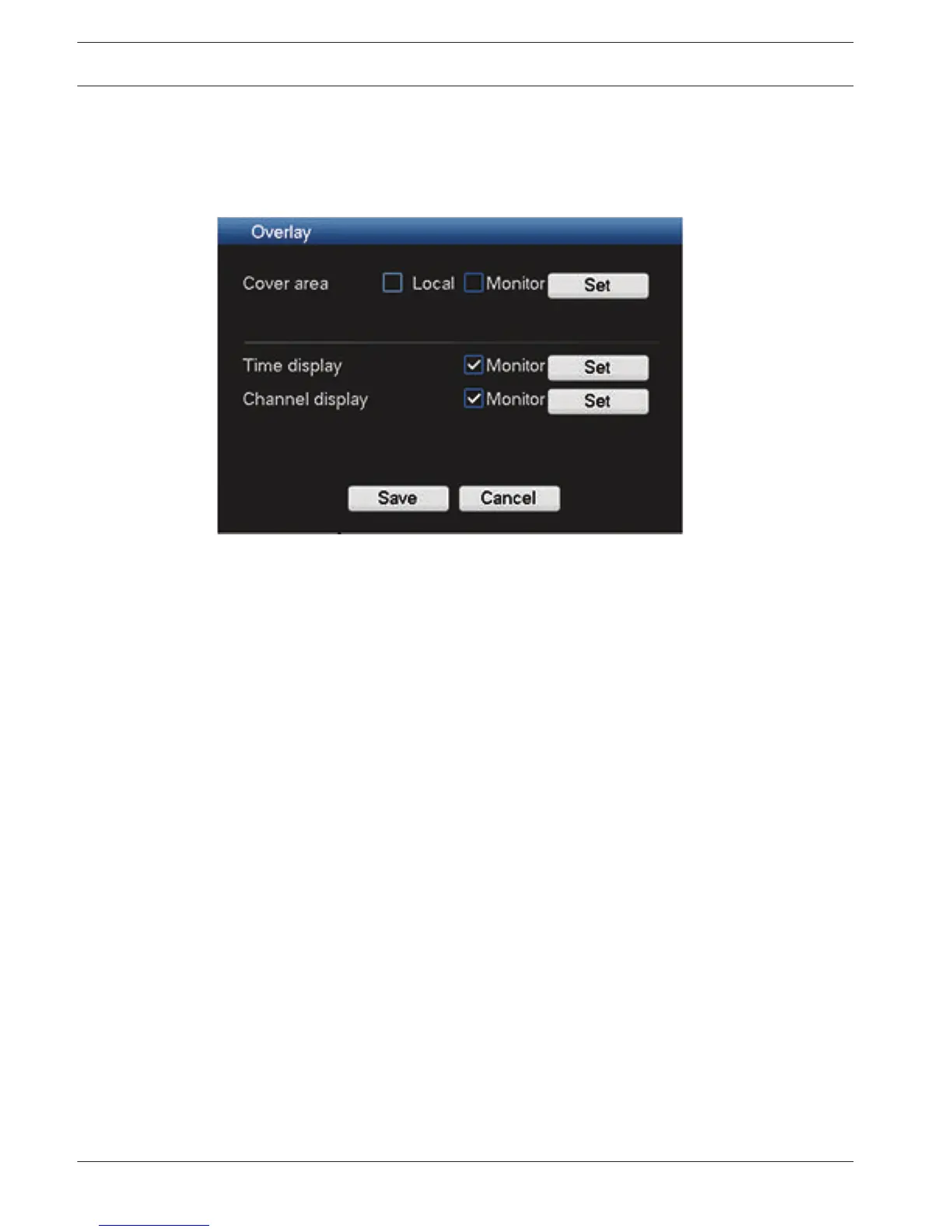

Figure 6.5: Encode overlay
– Cover area (Privacy mask): To set the area, press <Set> then drag the mouse to set a
section size per channel (system supports max 4 zones per channel)
– Local/Monitor:
– Preview means the privacy mask zone can not be viewed by user when system is in
preview status
– Monitor means the privacy mask zone cannot be viewed when the system is in
monitor status.
– Time display: Select system displays time or not when you playback. Please click set
button and then drag the ‘Time display’ to the corresponding position in the screen.
– Channel display: You can select system displays channel number or not when you
playback. Please click set button and then drag the title to the corresponding position in
the screen.
6.3.1
40 en | Configuration DIVAR AN 3000 / DIVAR AN 5000
2014.10 | 2.0 | AM18-Q0669 Operations Manual Bosch Security Systems

Bosch DIVAR AN 5000 Specifications

General

Motion sensor	Yes
Total storage capacity	2000 GB
Video compression formats	H.264
Analog signal format system	NTSC, PAL
Compatible operating systems	Windows XP, Windows Vista, Windows 7.
Playback resolutions supported	960x576, 960x480, 704x576, 704x480, 704x288, 704x240, 352x288, 352x240, 176x144, 176x120
Audio input	4
BNC input ports	16
USB 2.0 ports quantity	1
Ethernet interface type	Gigabit Ethernet
HDD interface	Serial ATA
Maximum HDD capacity	3000 GB
Power requirements	100-240VAC 50-60Hz
Optical drive included	No
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 93 %

Weight and Dimensions

Dimensions (WxDxH)	440 x 420 x 70 mm
