Bosch DIVAR AN 5000 User Manual

Shutdown/Logout
1. Right-click the mouse to access the Quick menu; from here choose the option Main
menu.

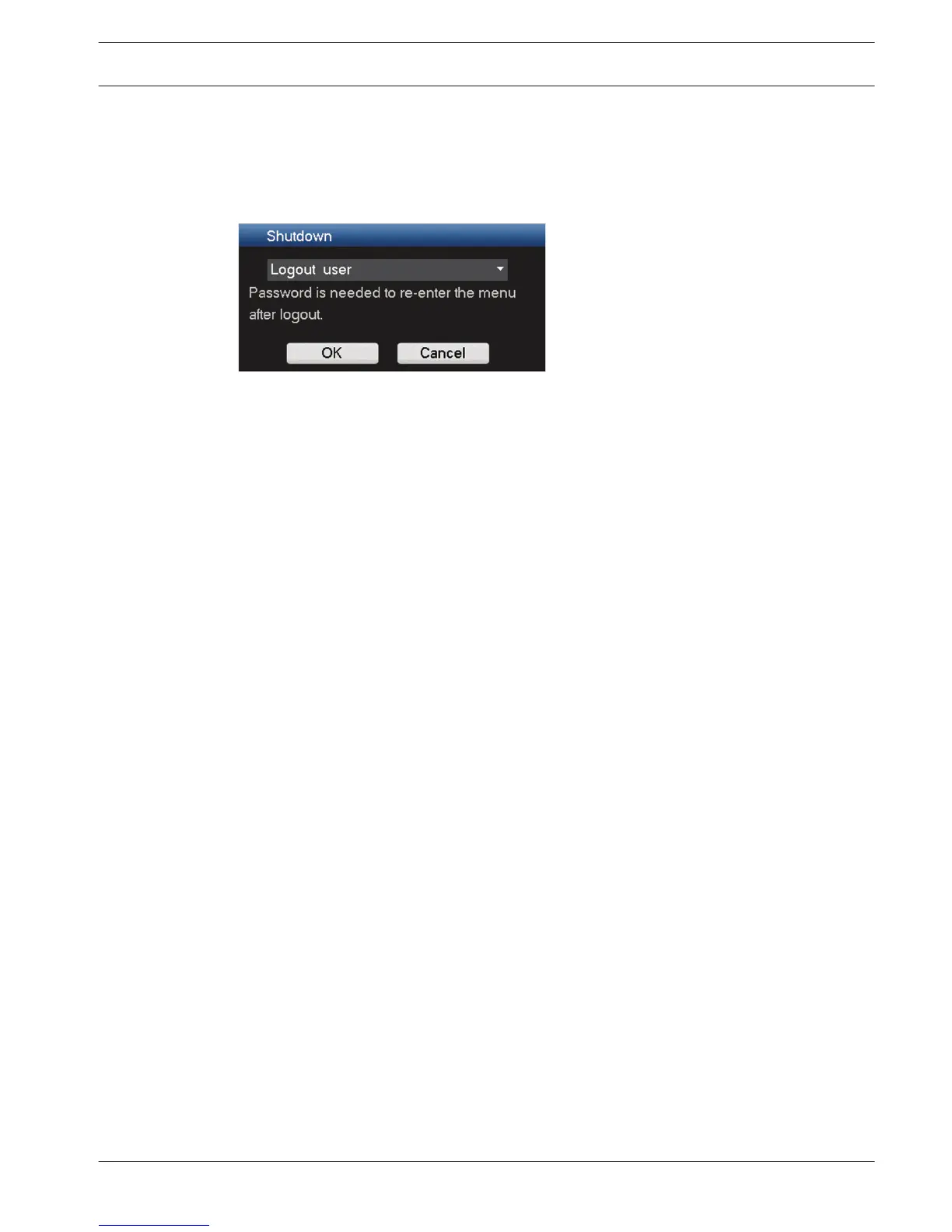

2. Select the Shutdown option on the Main menu for the following dialog box.
3. Use the drop-down menu to choose from the following options:
Logout user
Shutdown
Restart system
Switch user
4. Click <OK> to confirm the selection.
Shut down with power button
Another way to shut down the system is to press the power button on the front panel for at
least 3 seconds (the system will automatically backup video recordings and settings).
Start up the system again (and access login screen) by briefly pressing the power button.
Power Failure
The system will automatically backup video recordings and settings after a power failure.
4.5
DIVAR AN 3000 / DIVAR AN 5000 Quick install | en 27
Bosch Security Systems Operations Manual 2014.10 | 2.0 | AM18-Q0669

Bosch DIVAR AN 5000 Specifications

General

Motion sensor	Yes
Total storage capacity	2000 GB
Video compression formats	H.264
Analog signal format system	NTSC, PAL
Compatible operating systems	Windows XP, Windows Vista, Windows 7.
Playback resolutions supported	960x576, 960x480, 704x576, 704x480, 704x288, 704x240, 352x288, 352x240, 176x144, 176x120
Audio input	4
BNC input ports	16
USB 2.0 ports quantity	1
Ethernet interface type	Gigabit Ethernet
HDD interface	Serial ATA
Maximum HDD capacity	3000 GB
Power requirements	100-240VAC 50-60Hz
Optical drive included	No
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 93 %

Weight and Dimensions

Dimensions (WxDxH)	440 x 420 x 70 mm
