Bosch DIVAR AN 5000 User Manual

NTP

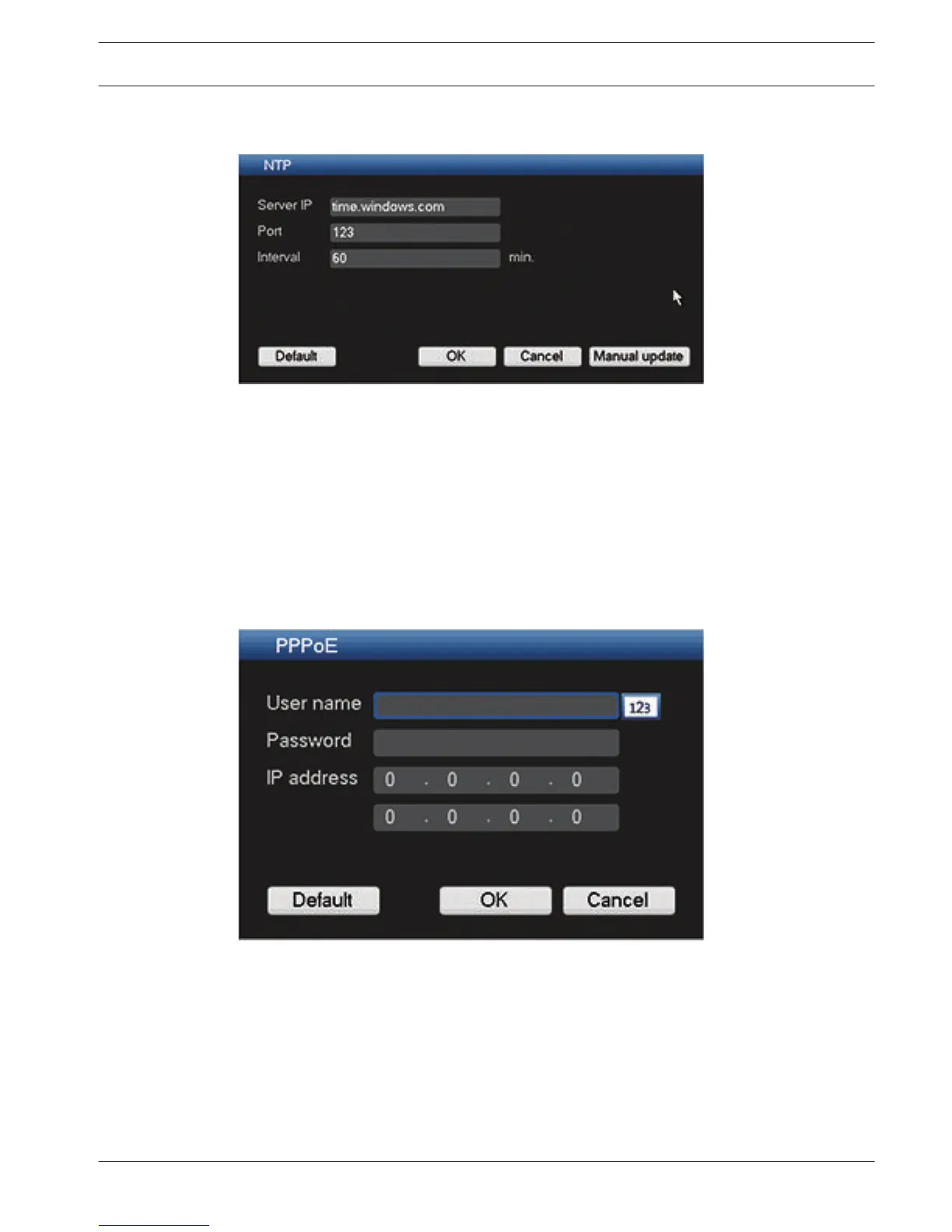

Figure 6.12: Network NTP
You must first install an SNTP server (such as Absolute Time Server) into your PC.
Enter here:
– Your Server IP
– Port - this system only supports TCP transmission. Default is port 123
– Time zone (your specific time zone in relation to GMT). If required, press <Manual
update> to manually synchronize the time with the server.
– Interval – this is the update interval (1 to 65535 minutes). Default is 60 minutes.
PPPoE
Figure 6.13: Network PPPoE
Enter here your PPPoE ‘User name’ and ‘Password’ supplied by your internet service provider,
and click <OK>.
You will need to restart your system to automatically connect to the internet (the IP address
will be automatically assigned).
6.6.3
6.6.4
DIVAR AN 3000 / DIVAR AN 5000 Configuration | en 51
Bosch Security Systems Operations Manual 2014.10 | 2.0 | AM18-Q0669

Bosch DIVAR AN 5000 Specifications

General

Motion sensor	Yes
Total storage capacity	2000 GB
Video compression formats	H.264
Analog signal format system	NTSC, PAL
Compatible operating systems	Windows XP, Windows Vista, Windows 7.
Playback resolutions supported	960x576, 960x480, 704x576, 704x480, 704x288, 704x240, 352x288, 352x240, 176x144, 176x120
Audio input	4
BNC input ports	16
USB 2.0 ports quantity	1
Ethernet interface type	Gigabit Ethernet
HDD interface	Serial ATA
Maximum HDD capacity	3000 GB
Power requirements	100-240VAC 50-60Hz
Optical drive included	No
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 93 %

Weight and Dimensions

Dimensions (WxDxH)	440 x 420 x 70 mm
