Bosch DIVAR AN 5000 User Manual

System events

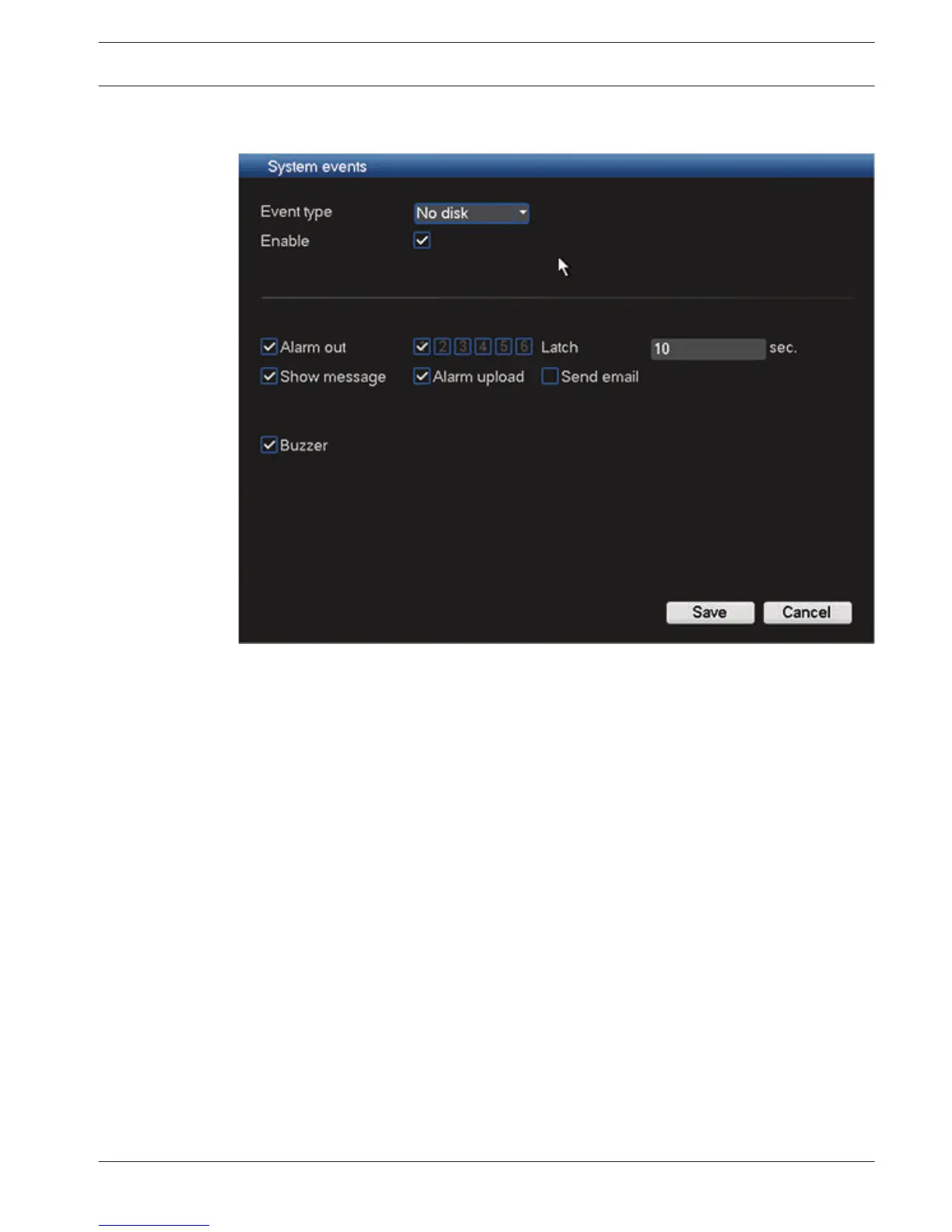

Figure 6.30: System events
Use this menu to setup how the system reacts to different system events.
– Event type: choose from disk error, no disk, no space on disk, NET disconnection, IP
conflict, MAC conflict.
– Enable: select to enable the system event.
– Alarm out: select the alarm activation output port(s) (maximum of 3 on DIVAR 3000; 6 on
DIVAR 5000).
– Latch: set a delay time (from 10 seconds (default) to 300 seconds) before the system
automatically turns off the alarm and the activated output after the external alarm is
cancelled.
– Show message: system will pop up a message on the local screen to alert you when an
alarm occurs.
– Alarm upload (this option is only shown for the events ‘no disk’ and ‘no space on disk’):
system will upload the alarm signal to the network.
– Send email: system will send an email to alert you when an alarm occurs.
– Buzzer: the buzzer alerts you when an alarm occurs.
6.14
DIVAR AN 3000 / DIVAR AN 5000 Configuration | en 71
Bosch Security Systems Operations Manual 2014.10 | 2.0 | AM18-Q0669

Bosch DIVAR AN 5000 Specifications

General

Motion sensor	Yes
Total storage capacity	2000 GB
Video compression formats	H.264
Analog signal format system	NTSC, PAL
Compatible operating systems	Windows XP, Windows Vista, Windows 7.
Playback resolutions supported	960x576, 960x480, 704x576, 704x480, 704x288, 704x240, 352x288, 352x240, 176x144, 176x120
Audio input	4
BNC input ports	16
USB 2.0 ports quantity	1
Ethernet interface type	Gigabit Ethernet
HDD interface	Serial ATA
Maximum HDD capacity	3000 GB
Power requirements	100-240VAC 50-60Hz
Optical drive included	No
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 93 %

Weight and Dimensions

Dimensions (WxDxH)	440 x 420 x 70 mm
