Bosch DIVAR AN 5000 User Manual

DDNS

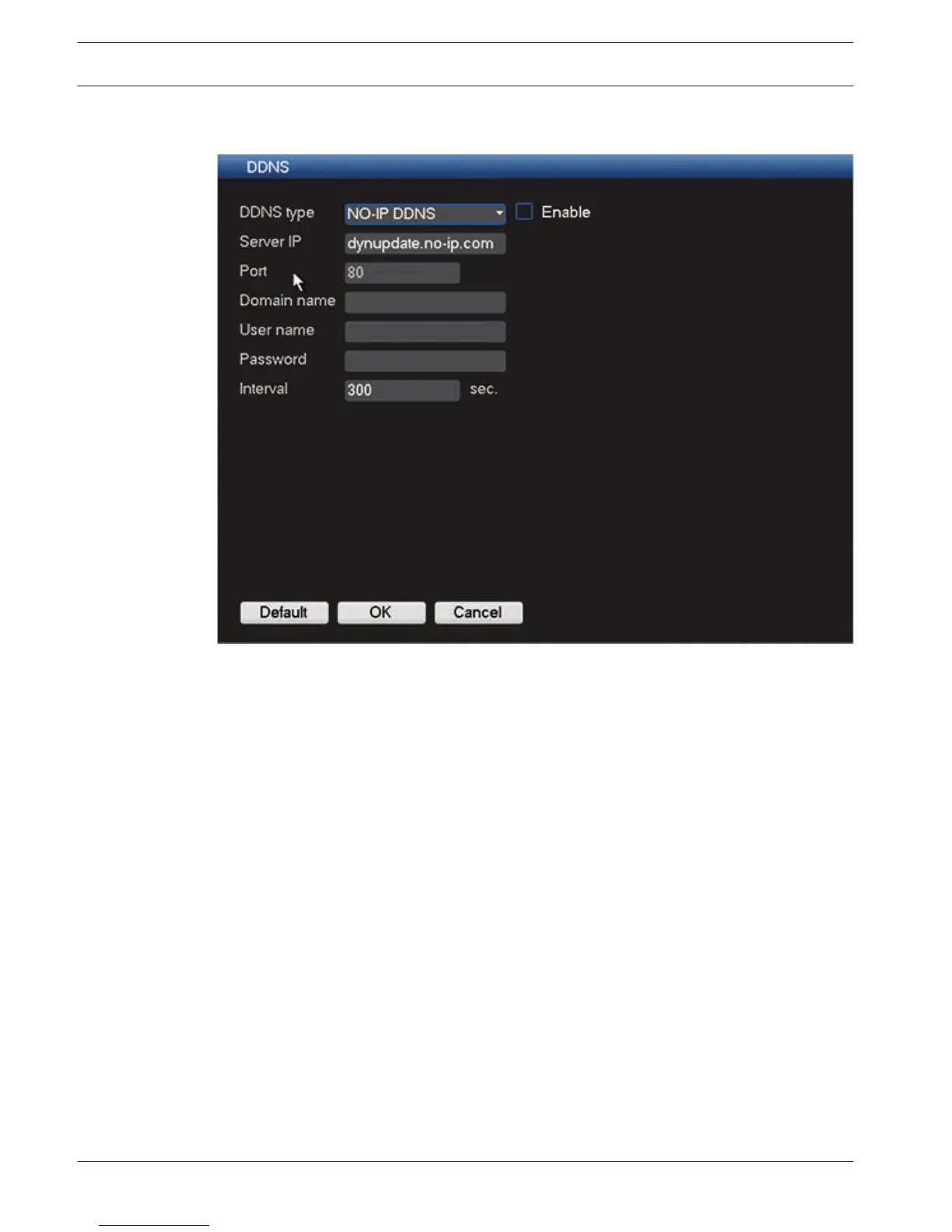

Figure 6.14: Network - DDNS
Select a DDNS provider from the list and complete the details with the configuration
information assigned by the provider. The providers supported are: CN99 DDNS, NO-IP DDNS
and Dyndns DDNS. All the DDNS types can be valid at the same time; you only need to select
the required type from the drop-down menu.
You need a PC of fixed IP in the internet and there is DDNS software running in this PC (in
other words, this PC is a DNS (domain name server)).
In network DDNS, please select DDNS type and highlight enable item. Then please input the
PPPoE name you get from your IPS and server IP (PC with DDNS). Click <OK> and then reboot
system.
After rebooting, open the IE and input as follows:
http：//(DDNS server IP)/(virtual directory name)/webtest.htm (e.g.: http：//10.6.2.85/DVR
_DDNS/webtest.htm.)
Now you can open the DDNS Server web search page.
6.6.5
52 en | Configuration DIVAR AN 3000 / DIVAR AN 5000
2014.10 | 2.0 | AM18-Q0669 Operations Manual Bosch Security Systems

Bosch DIVAR AN 5000 Specifications

General

Motion sensor	Yes
Total storage capacity	2000 GB
Video compression formats	H.264
Analog signal format system	NTSC, PAL
Compatible operating systems	Windows XP, Windows Vista, Windows 7.
Playback resolutions supported	960x576, 960x480, 704x576, 704x480, 704x288, 704x240, 352x288, 352x240, 176x144, 176x120
Audio input	4
BNC input ports	16
USB 2.0 ports quantity	1
Ethernet interface type	Gigabit Ethernet
HDD interface	Serial ATA
Maximum HDD capacity	3000 GB
Power requirements	100-240VAC 50-60Hz
Optical drive included	No
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 93 %

Weight and Dimensions

Dimensions (WxDxH)	440 x 420 x 70 mm
