Encrypt type
Some mail servers require encryption to transmit e-mail. If required, use SLL or TLS
encryption when sending e-mail. If not required, select ‘NONE’.
Event interval
This is the email send interval – it can range from 0 to 3600 seconds (0 seconds means there
is no send interval. This interval can be useful if many emails are being generated
simultaneously for system events and the system becomes increasingly busy.
Health enable
Check this box to command the system to send out a test email to check the connection is
OK. This will be done at a regular interval – see below.
Interval
Used together with ‘Health enable’ to set a time for a regular email connection test. A dialog
box will appear to display if the connection is OK or not.
Another option is to click <Test> to manually check the email connection.
FTP server
Please first boot up the corresponding FTP server before activating the following menu.

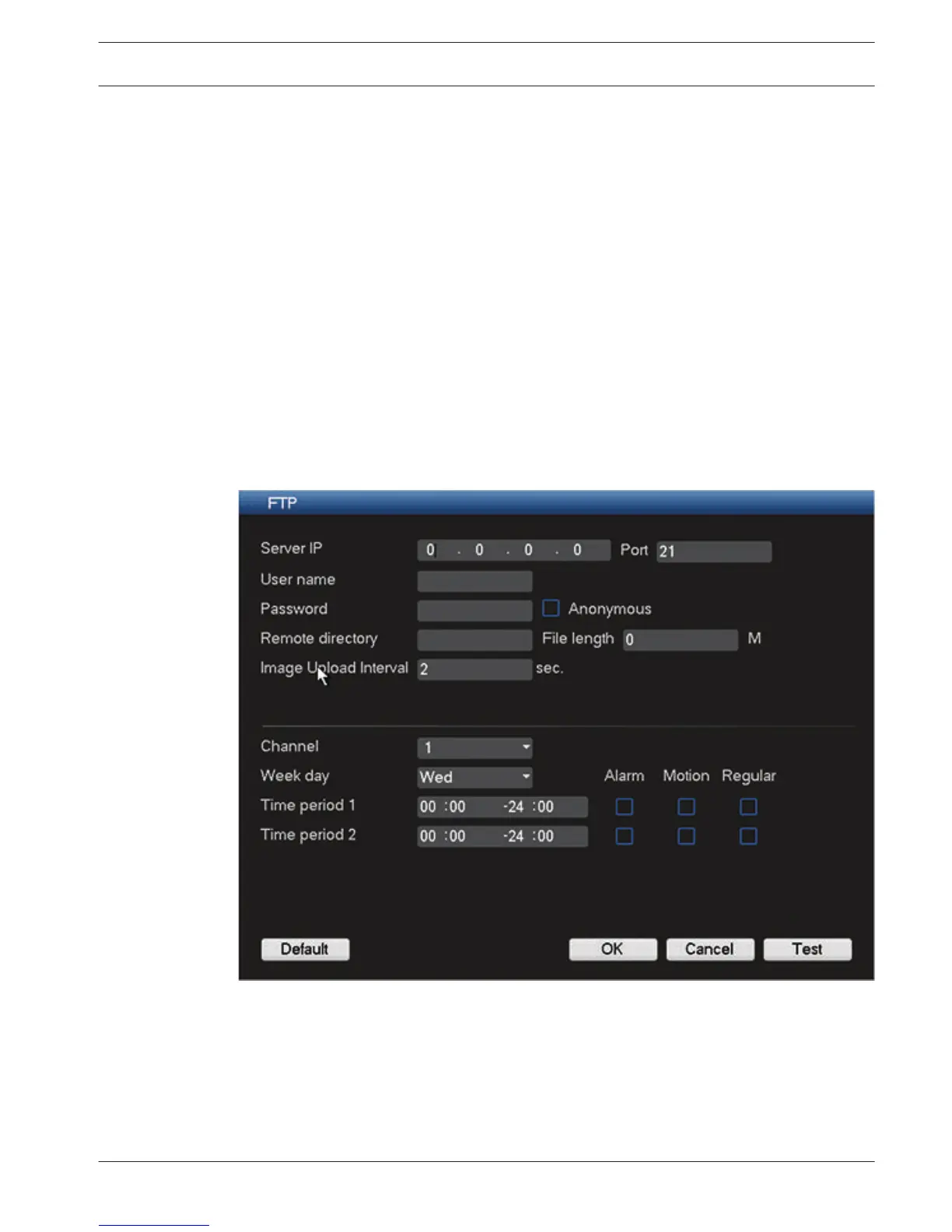

Figure 6.17: Network FTP server
If uploading snapshot images to the FTP server (e.g. in an alarm situation), first input snapshot
mode, size, quality and frequency in the Encode screen (see Encode, page 39) so the system
can correctly upload the image files. The snapshot upload can be triggered in the following
menu settings:
– Schedule
– Detect (motion, camera masking, video loss)
6.6.8
DIVAR AN 3000 / DIVAR AN 5000 Configuration | en 55
Bosch Security Systems Operations Manual 2014.10 | 2.0 | AM18-Q0669
