Alarm Output

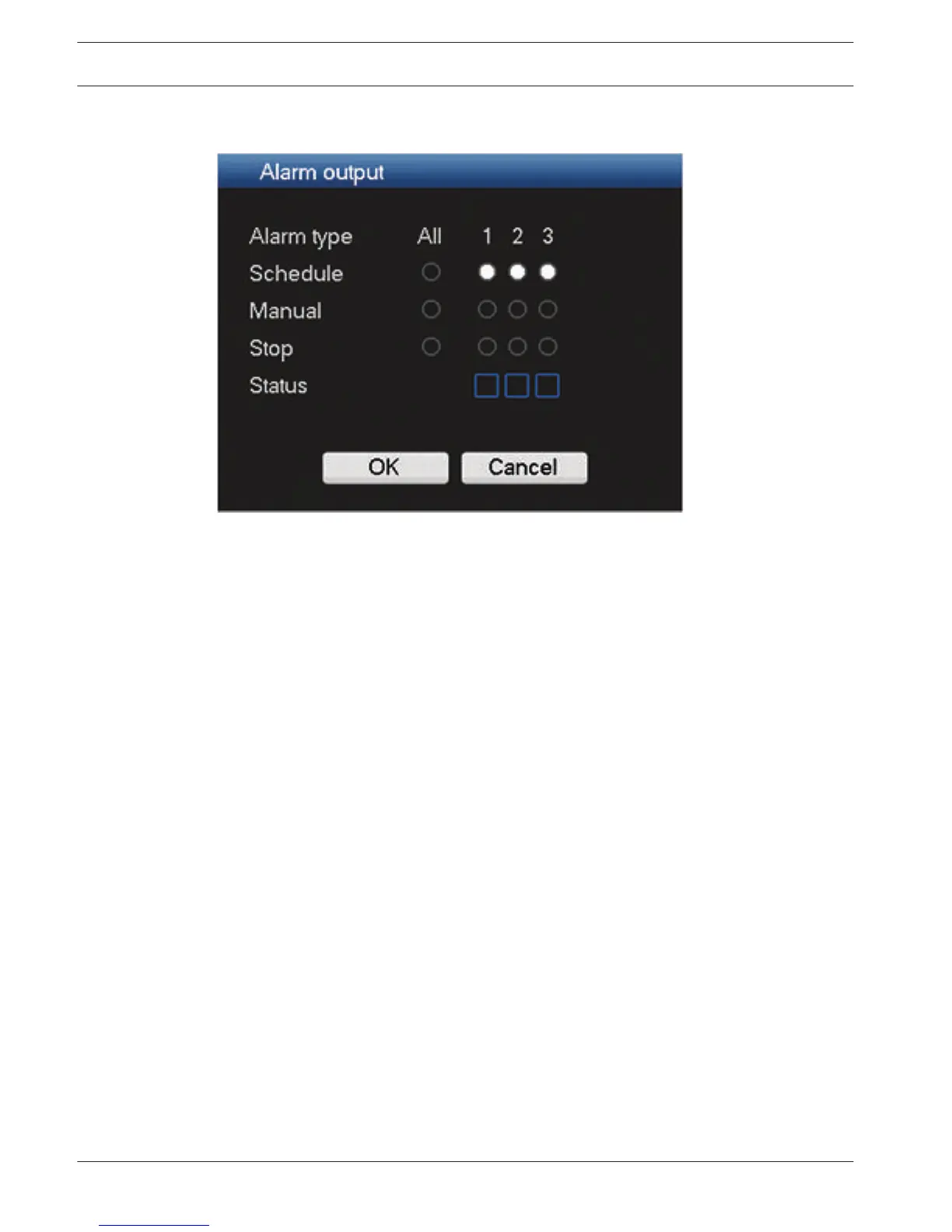

Figure 6.31: Alarm output
Assign here the settings for each of the alarm outputs (3 for the DIVAR 3000; 6 for the
DIVAR 5000) or use the ‘All’ checkbox to select all outputs:
– Schedule: set the alarm to run at a predefined time. See Schedule, page 43.
– Manual: Set the alarm to react to a manual input.
– Stop: Turn off the alarm outputs for schedule and manual.
– Status: displays the current status of the external alarm (a checked box means the alarm
is activated)
6.15
72 en | Configuration DIVAR AN 3000 / DIVAR AN 5000
2014.10 | 2.0 | AM18-Q0669 Operations Manual Bosch Security Systems

Bosch DIVAR AN 5000 Specifications

General

Motion sensor	Yes
Total storage capacity	2000 GB
Video compression formats	H.264
Analog signal format system	NTSC, PAL
Compatible operating systems	Windows XP, Windows Vista, Windows 7.
Playback resolutions supported	960x576, 960x480, 704x576, 704x480, 704x288, 704x240, 352x288, 352x240, 176x144, 176x120
Audio input	4
BNC input ports	16
USB 2.0 ports quantity	1
Ethernet interface type	Gigabit Ethernet
HDD interface	Serial ATA
Maximum HDD capacity	3000 GB
Power requirements	100-240VAC 50-60Hz
Optical drive included	No
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 93 %

Weight and Dimensions

Dimensions (WxDxH)	440 x 420 x 70 mm
