Trouble Shooting Information for C7000VP series

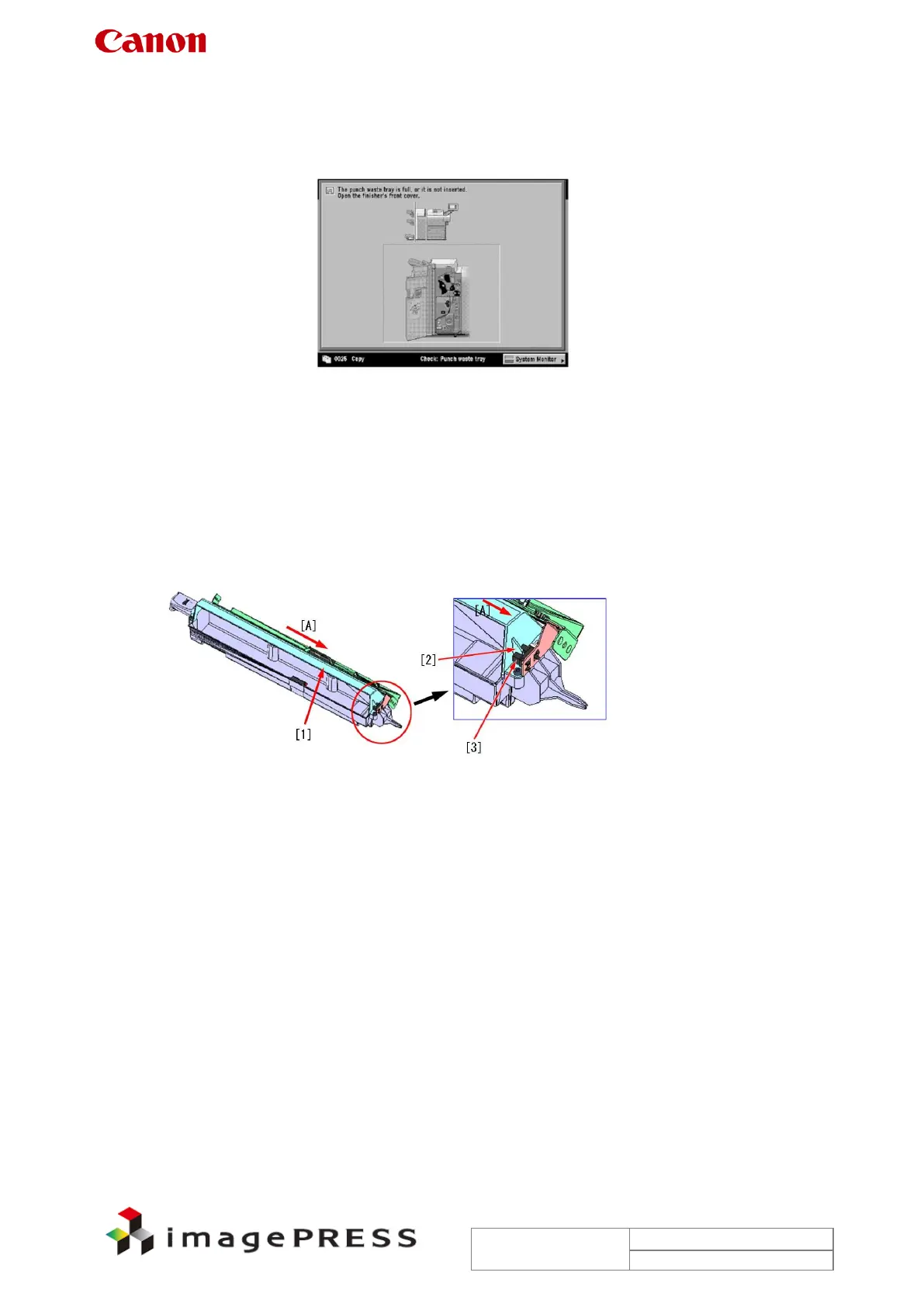

2.2 Message ‘Check: Punch waste tray’
Description
There was a case where the message ‘Check: Punch waste tray’ persisted in the status line on
the LCD control panel even though the punch dust box was not filled with punch wastes.
Cause
When mounting the punch chip case, the flag [2] of the punch dust box (upper) [1] failed to be in
the normal position, and thus, the punch chip case sensor (PS40) [3] failed to detect it.
Field Remedy
When the above-mentioned symptom occurs, loosen the 6 screws that fix the punch dust box
(upper) [1], and move the box in the direction of the arrow [A] by the distance of the screw hole
play; then tighten the screw to fix the box so that the flag [2] can be detected by the punch chip
case sensor (PS40) [3].
FC6-6337 Punch Dust Box (Upper)
