Trouble Shooting Information for C7000VP series
5. After cleaning the inner periphery of the sintered bushing, apply grease (Super Lube
grease) to the inner periphery.
- The amount of grease to apply is approx. a grain of rice.
- Service part No. of Super Lube grease: FY9-6005
6. Assemble the parts in the reverse order of steps 1 to 4.
Notes at assembly
- If grease attaches to the area that is in contact with the ITB, remove it with alcohol.
- Fit the cut-off of the grounding spring to the projection of the sintered busing.
- When securing the grounding spring with the screw, tighten the screw while keeping
the grounding spring from being twisted.
3.29 Distorted toner image due to wax -> New item
Description

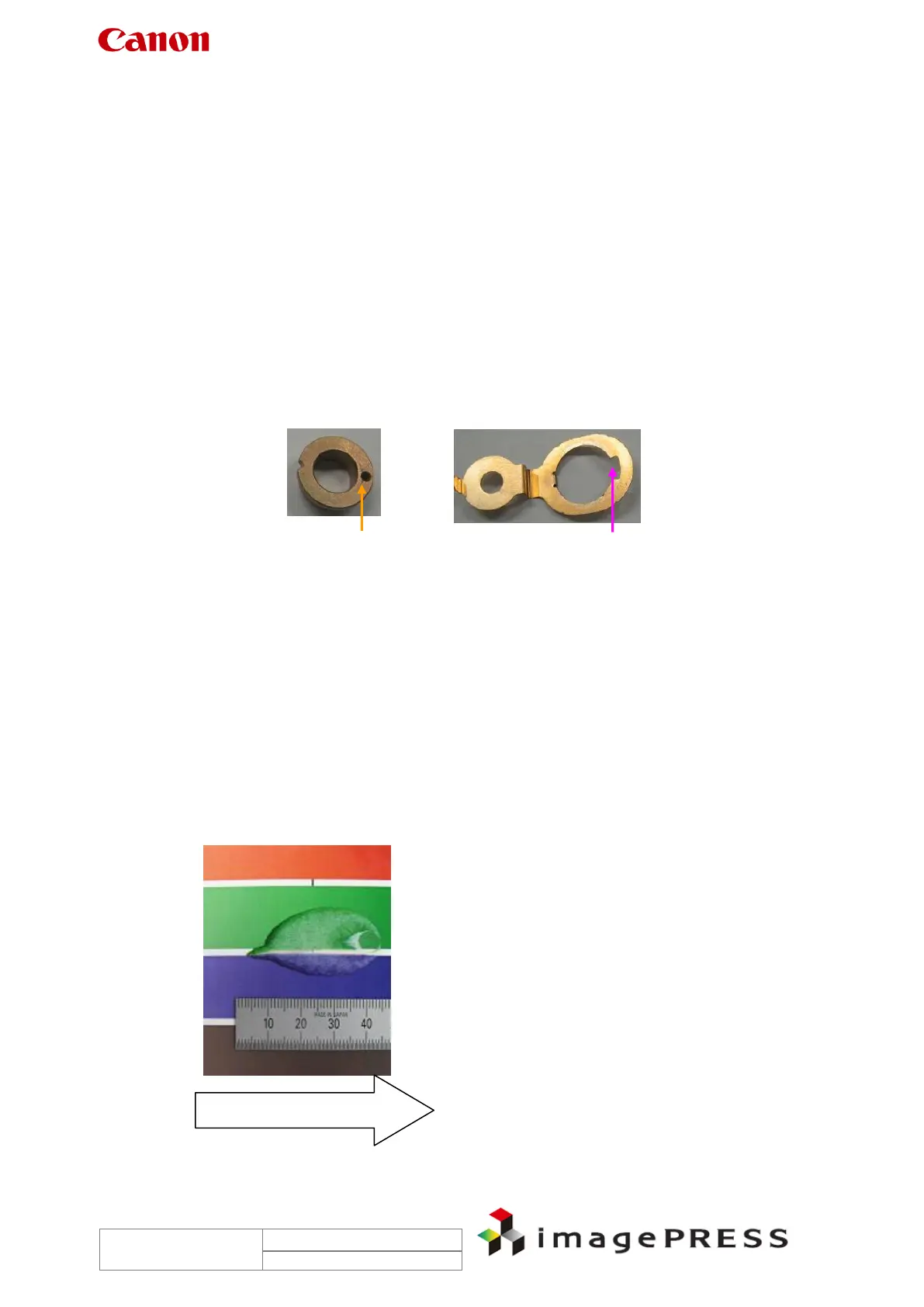

Projection of the sintered bushing
* There is a projection at the back.
Cut-off of the grounding spring
