Printer parts
Printer Parts
Printer parts

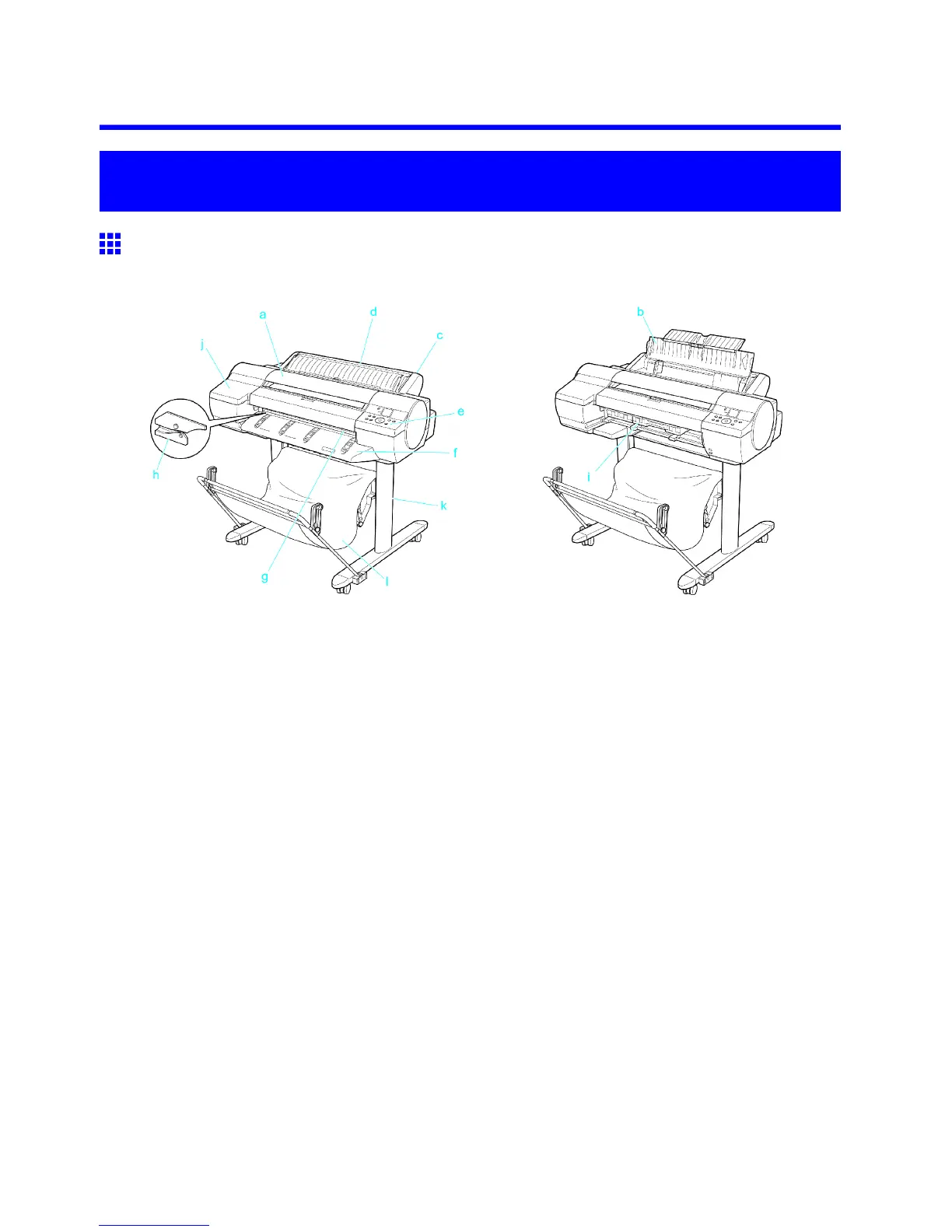

Front
Standard
When the Ejection Guide is removed
a. T op Cover
Open this cover to install the Printhead and remove any jammed paper from inside the printer , as
needed. ( → P .10)
b. Paper T ray Cover
Open this cover to load sheets in the T op Paper Feed Slot . ( → P .1 1)
c. Roll Feed Unit
Load rolls in this unit. Y ou can also load sheets in this unit manually .
d. Roll Paper Unit Cover
Open this cover to load rolls. ( → P .12)
e. Control Panel
Use this panel to operate the printer and check the printer status. ( → P .15)
f. Ejection Guide
Supports paper as it is ejected to prevent it from rising.
g. Output T ray ( Front Paper Feed Slot )
All printed documents are ejected to the output tray . Also, use this slot when loading heavyweight
paper . ( → P .1 1)
h. Cutter Unit
A round-bladed cutter for automatic cutting of roll paper . The cutter is retracted inside when not cutting.
i. Maintenance Cartridge
Absorbs excess ink.
j. Ink T ank Cover
Open this cover to replace Ink T ank . ( → P .14)
