Paper to Prepare
When Using Rolls An unused roll at least 10 inches wide
When Using Sheets Auto(Standard) : One sheet of unused paper of at least A4/Letter size
Auto(Advanced): Six sheets of unused paper of at least A4/Letter size (or one sheet when using A2 or larg-
er)

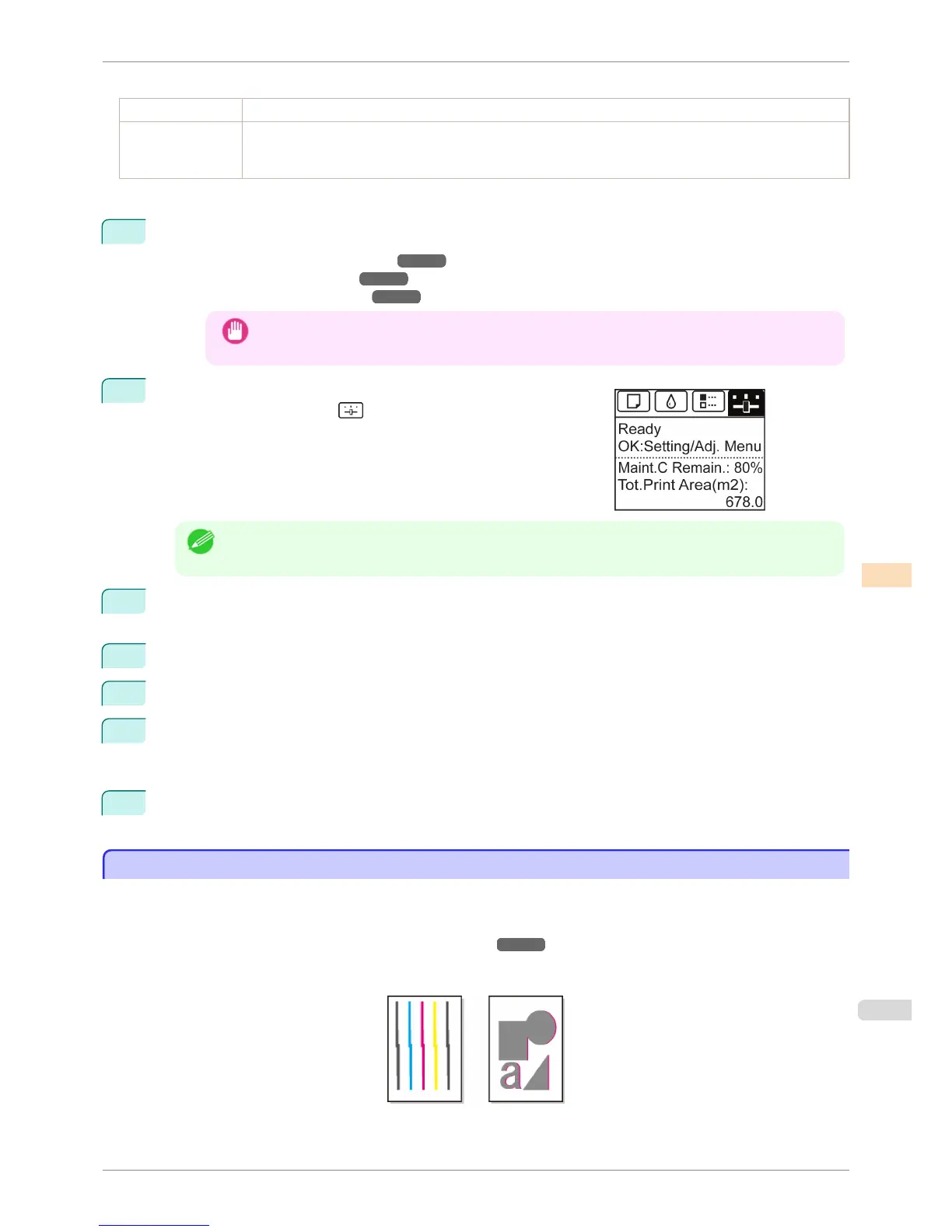

Perform adjustment as follows.
1 Load the paper.
• Attaching the Roll Holder to Rolls ➔ P.336
• Loading Rolls in the Printer ➔ P.339
• Loading Sheets in the Printer ➔ P.356
Important
• Always make sure the loaded paper matches the type of paper specified on the printer. Adjustment
cannot be completed correctly unless the loaded paper matches the settings.
2
On the Tab Selection screen of the Control Panel, press ◀ or ▶ to
select the Settings/Adj. tab ( ).
Note
• If the Tab Selection screen is not displayed, press the Menu button.
3 Press the OK button.
The Set./Adj. Menu is displayed.
4 Press ▲ or ▼ to select Adjust Printer, and then press the OK button.
5 Press ▲ or ▼ to select Head Posi. Adj., and then press the OK button.
6 Press ▲ or ▼ to select Auto(Standard) or Auto(Advanced), and then press the OK button.
A test pattern is printed for adjustment.
Adjustment is now finished if you have printed on a roll or a sheet of A2 size or larger.
7 If you are printing on sheets smaller than A2 size for Auto(Advanced), a confirmation message is dis-
played requesting you to continue printing. Press the OK button and follow the instructions displayed.
Manual Adjustment to Straighten Lines and Colors
Manual Adjustment to Straighten Lines and Colors
If printed vertical lines are warped or colors are out of alignment, execute Head Posi. Adj. to adjust the Printhead
alignment.
Normally, execute Standard.
(See "Automatic Adjustment to Straighten Lines and Colors.") ➔ P.476
However, when printing on special paper, or if printing is not improved after Standard, try Manual.
Manual adjustment requires you to examine the printed test pattern and enter an adjustment value.
iPF780 Manual Adjustment to Straighten Lines and Colors
User's Guide
Adjustments for Better Print Quality Adjusting the Printhead
477

Canon imagePROGRAF iPF780 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Matte black, Yellow
Print technology	Inkjet
Maximum resolution	2400 x 1200 DPI
Page description languages	GARO, HP-GL/2, HP-RTL
Media thickness	0.07 - 0.8 mm
Maximum print size	-
Media width (rolls)	254 - 914.4 mm
Media width (sheets)	203.2 - 914.4 mm
Maximum roll diameter	150 mm
Paper tray media types	Coated paper, Cut sheet, Plain paper, Roll
ISO A-series sizes (A0...A9)	A0, A1, A2, A3
ISO B-series sizes (B0...B9)	B1, B2, B4
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN data rates	10/100/1000 Base-T/TX Mbit/s
Ethernet interface type	Gigabit Ethernet
Certification	RoHS
Product color	Black, Grey
Internal memory	256 MB
Sound pressure level (printing)	48 dB
Compliance industry standards	IEEE 802.3ab, IEEE 802.3u, IEEE 802.3
Power consumption (standby)	0.5 W
Power consumption (typical)	140 W
Storage temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	20 - 80 %
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	877 mm
Width	1304 mm
Height	1062 mm
