Information About Cisco Unified Presence
Security Certificate Exchange Between Cisco UP and the Security
Appliance
You need to generate the keypair for the certificate (such as cup_proxy_key) used by the ASA, and
configure a trustpoint to identify the self-signed certificate sent by the ASA to Cisco UP (such as
cup_proxy) in the TLS handshake.
For the ASA to trust the Cisco UP certificate, you need to create a trustpoint to identify the certificate
from the Cisco UP (such as
cert_from_cup), and specify the enrollment type as terminal to indicate that
you will paste the certificate received from the Cisco UP into the terminal.
XMPP Federation Deployments

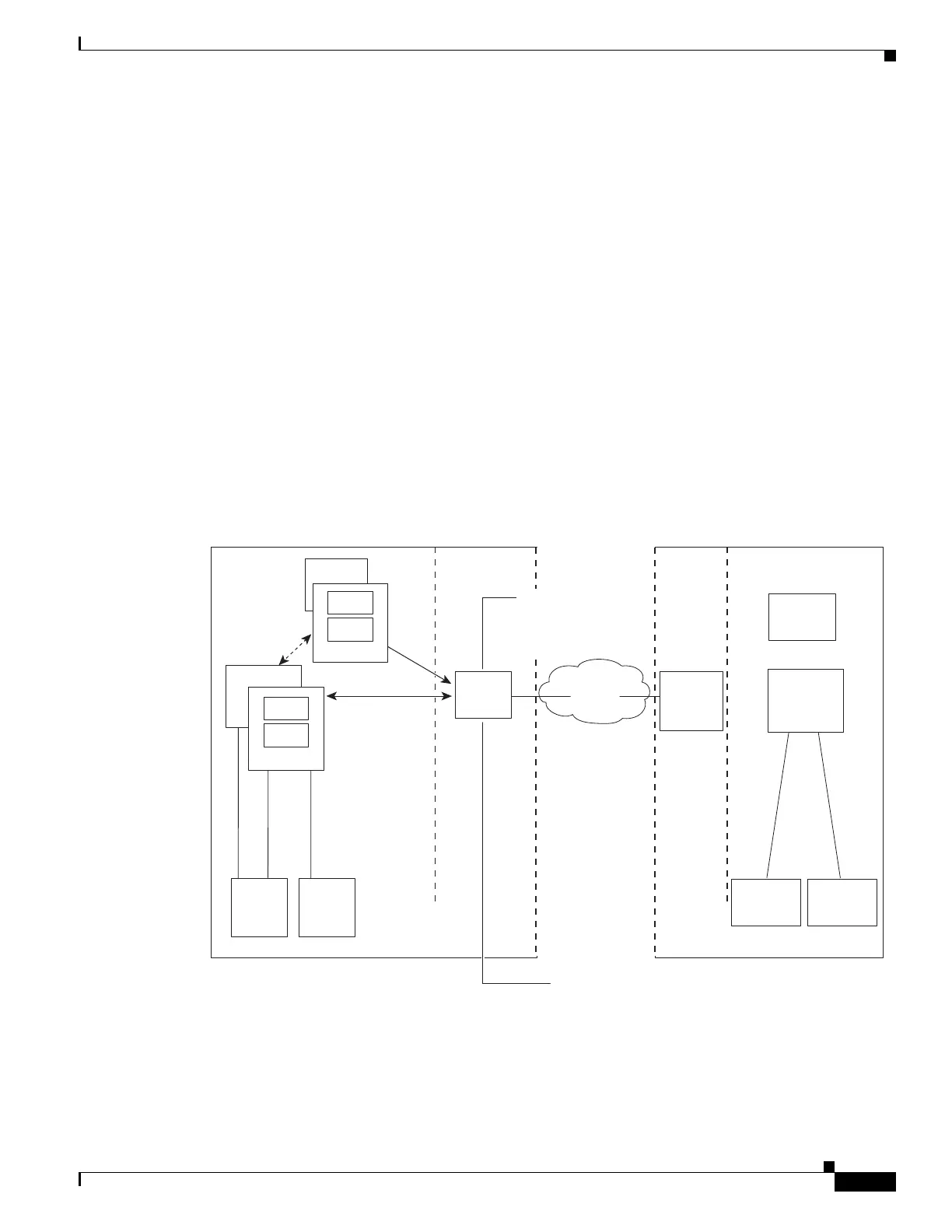

Figure 1-4 provides an example of an XMPP federated network between Cisco Unified Presence
enterprise deployment and an IBM Sametime enterprise deployment. TLS is optional for XMPP
federation. ASA acts only as a firewall for XMPP federation; it does not provide TLS proxy functionality
or PAT for XMPP federation.
Figure 1-4 Basic XMPP Federated Network between Cisco Unified Presence and IBM Sametime
XMPP
Client
(Tom)
277887
Internet
CUCM
CUCM
Enterprise X Enterprise Z
DMZ DMZprivate private network
ASA functions as:
• Firewall
• Open Port 5269
Pass-through for
XMPP Requests
No Termination
of connections
*ASA
XMPP
CUP (US)
CUP
CUP
CUP (UK)
CUP
CUP
Inter-cluster
communication
*Cisco Adaptive Security Appliance
Sametime
(Bob)
Sametime
(Bill)
IBM
Sametime
Gateway
Directory
IBM
Sametime
Gateway
IBM
Sametime
Server
XMPP
Client
(Ann)
