9T–4 REMOTE KEYLESS ENTRY AND ANTI-THEFT SYSTEM
DAEWOO M-150 BL2
REPAIR INSTRUCTIONS
ON-VEHICLE SERVICE
D19C501A
SIREN

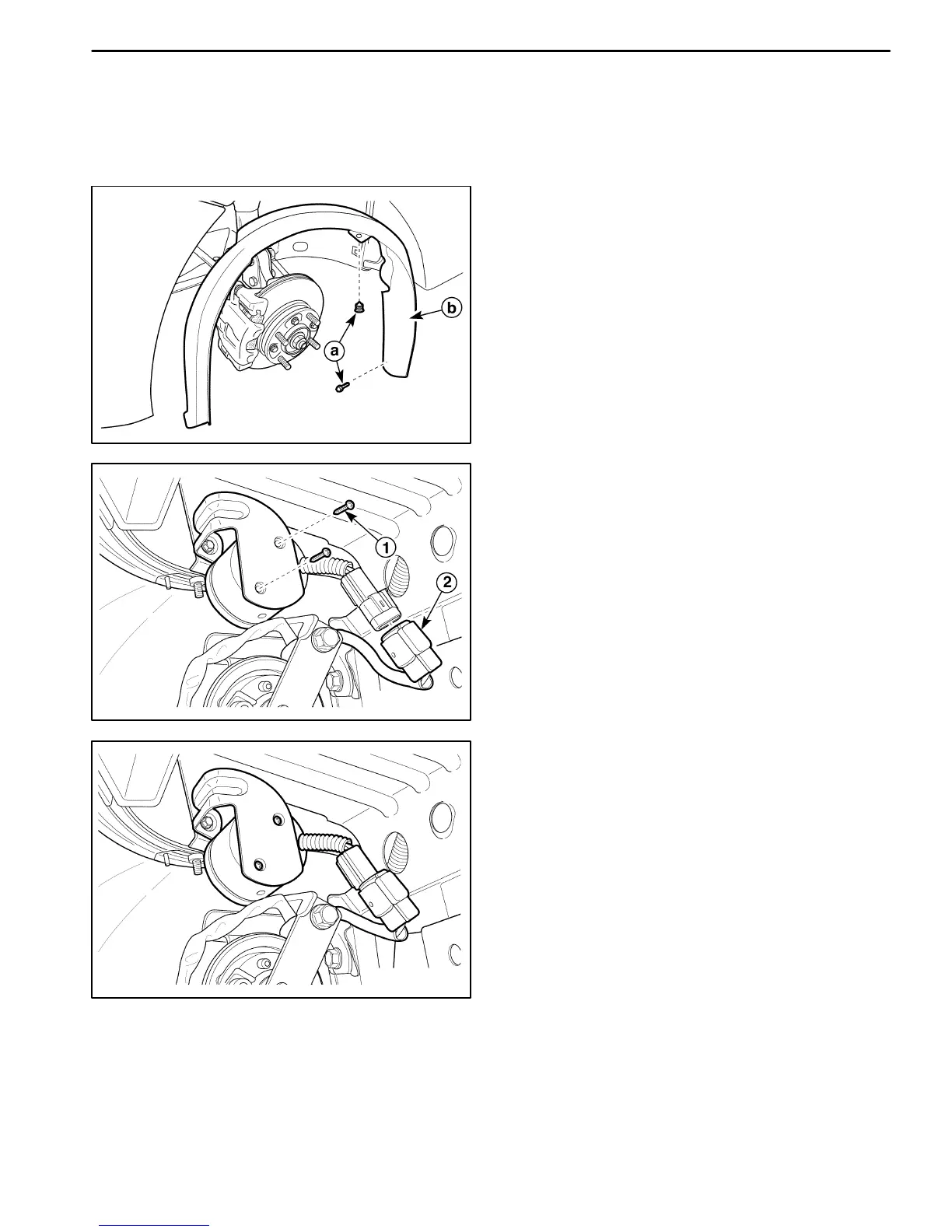

Removal Procedure
1. Disconnect the negative battery cable.
2. Raise and suitably support the vehicle.
3. Remove the front wheels.
4. Remove the front wheel house splash shield.
D Remove the clip and bolts.
a. Bolts and clips.
D Remove the wheel house splash shield.
b. Splash shield.
D209B106
5 Remove the siren.
D Remove the screws (1).
D Disconnect the electrical connector (2).
D209B107
Installation Procedure
1. Install the siren with the screws.
2. Connect the electrical connector.
3. Install the front wheel house splash shield with the
clips and the bolts.
4. Install the front wheels.
5. Lower the vehicle.
6. Connect the negative battery cable.
