REAR SUSPENSION 2D–7

DAEWOO M-150 BL2

D106C504

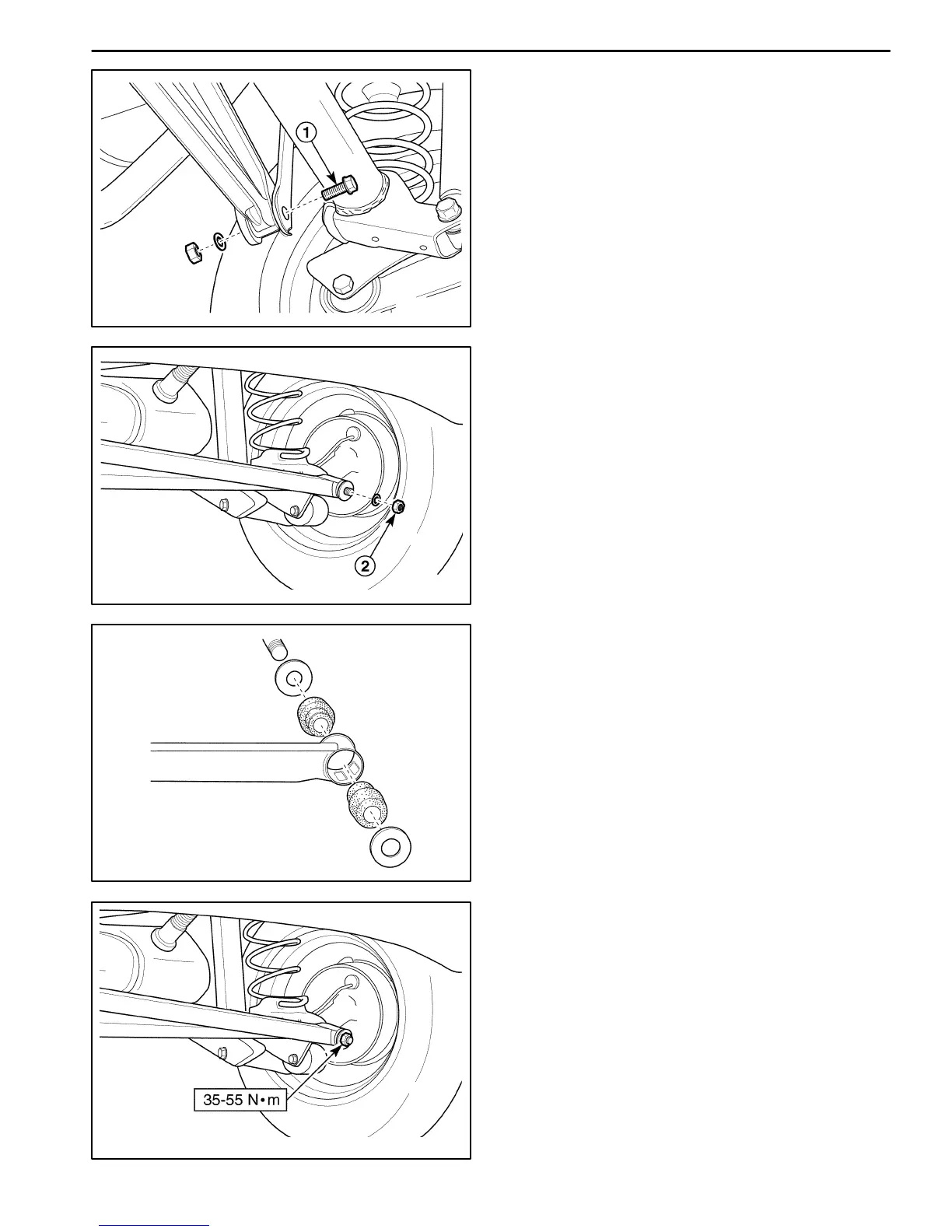

LATERAL ROD

Removal Procedure

1. Raise and suitably support the vehicle.

2. Remove the lateral rod.

D Remove the lateral rod–to– body bracket bolt (1).

D106C505

D Remove the lateral rod–to–rear axle nut (2).

D106C506

2. Remove the lateral rod axle side bushing and washer

from the lateral rod.

D16C507A

Installation Procedure

1. Install in the reverse order of removal.

2. Install the lateral rod–to–rear axle side nut.

Tighten

Tighten the lateral rod axle side nut to 35–55 NSm

(25–41 lb-ft).
