FIVE-SPEED MANUAL TRANSAXLE 5B–7
DAEWOO M-150 BL2

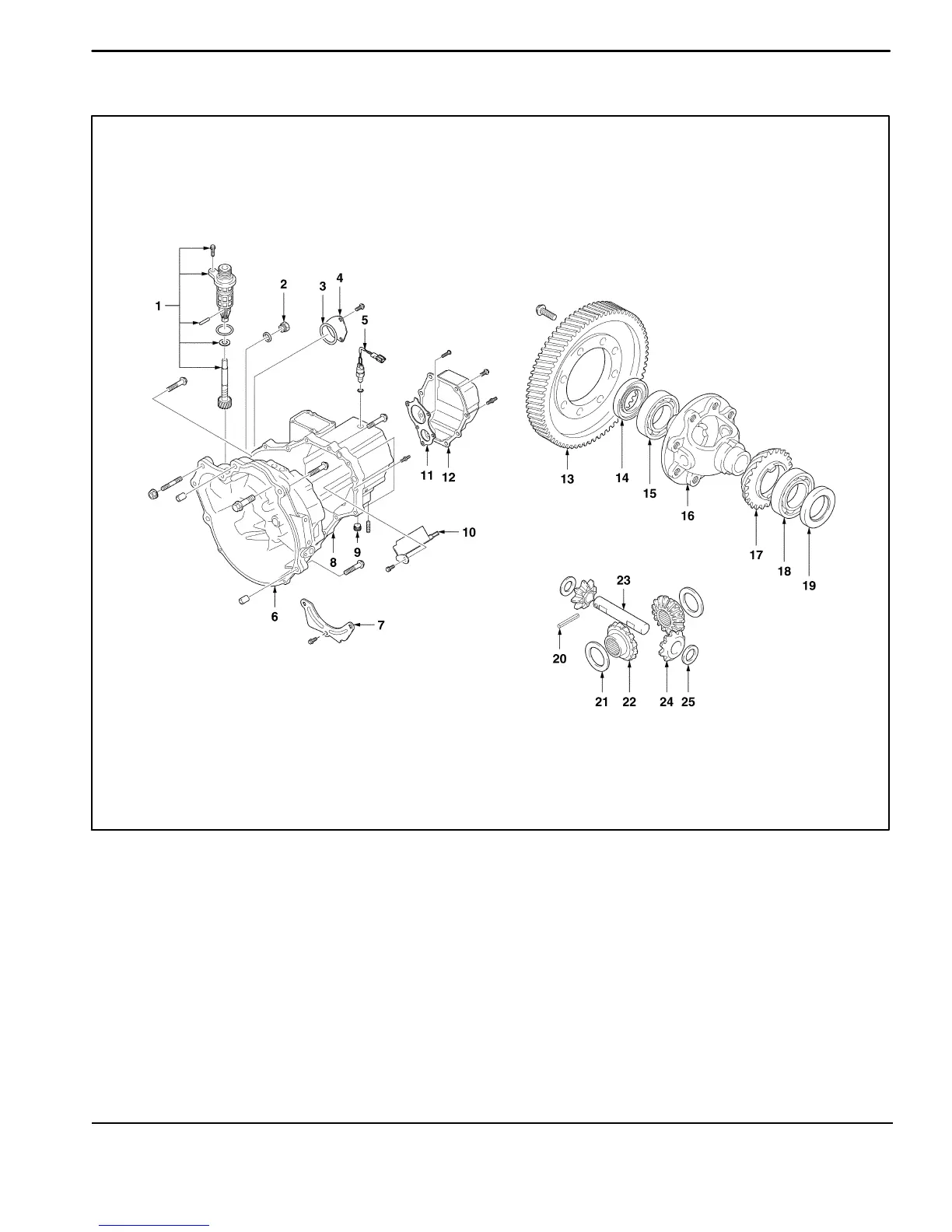

DIFFERENTIAL AND CASE
D13B4041
1 Speedometer Driven Gear
2 Oil Level Plug
3 Case Cap O–ring(Left)
4 Case Cap(Left)
5 Back Up Light Switch
6 Transaxle Case(Right)
7 Oil Plate
8 Transaxle Case(Left)
9 Oil Drain Plug
10 Oil Gutter
11 Side Cover Plate
12 Side Cover
13 Differential Ring Gear
14 Differential Oil Seal(Left)
15 Differential Bearing(Left)
16 Differential Case
17 Speedometer Drive Gear
18 Differential Bearing(Right)
19 Differential Oil Seal(Right)
20 Differential Pinion Gear Shaft Pin
21 Differential Side Gear Adjust Shim
22 Differential Side Gear
23 Differential Pinion Gear Shaft
24 Differential Pinion Gear
25 Differential Pinion Gear Washer
To Next Page
