1B –12 SOHC ENGINE MECANICAL
DAEWOO M-150 BL2
D102B310
5. If the ignition timing exceeds the specified value,
loosen the distributor bolts and adjust it to the speci-
fied ignition timing by turning the distributor body (s).
D102B311

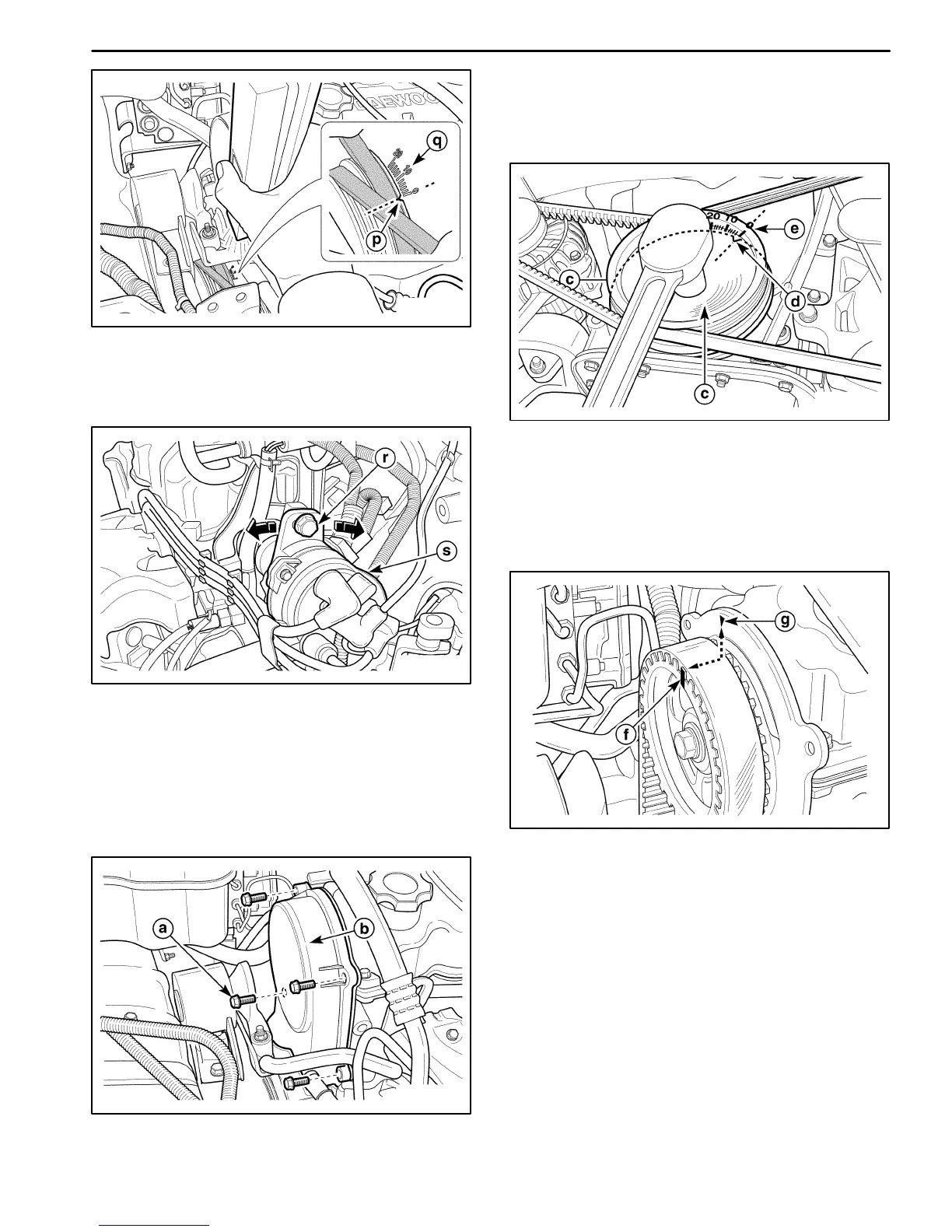

VALVE TIMING CHECK AND
ADJUSTMENT
Check the valve timing in the following procedures:
1. After removing the high headlamp, loosen the bolts
(a) and remove the timing belt front upper cover (b).
D102B312
2. Turning the crankshaft clockwise twice, align the
notch (d) on the crankshaft pulley (c) with the mark 0
(e) for the timing check on the timing belt front lower
cover.
D102B313
3. Check if the notch (f) on the camshaft sprocket is
aligned with the triangle pointer (g) on the timing belt
rear cover.
Important: Notch (f) should be aligned with pointer (g)
to set the valve timing normally.
