GENERAL ENGINE INFORMATION 1A–3
DAEWOO M-150 BL2
COMPONENT LOCATOR

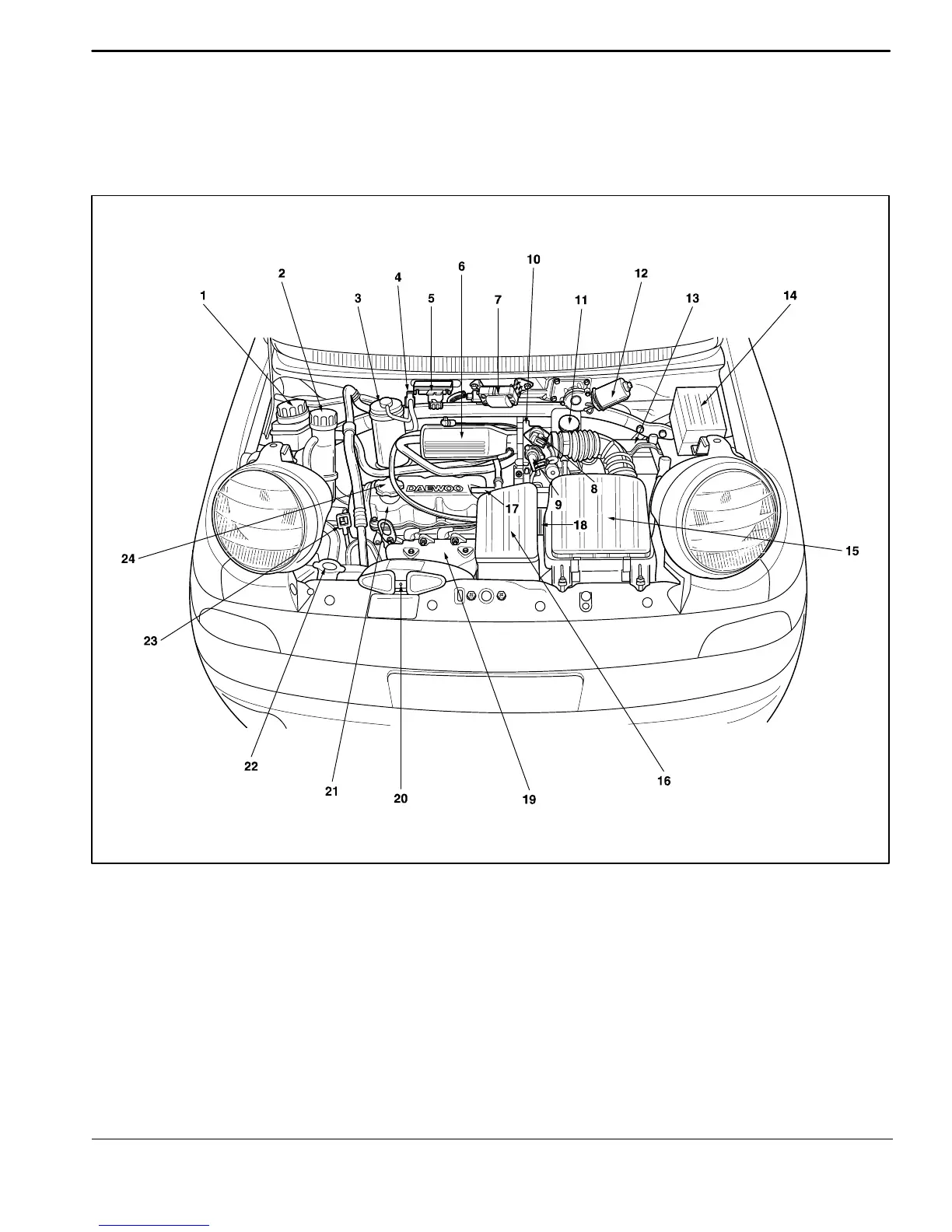

ENGINE COMPARTMENT (TYPICAL)
(Left–Hand Drive Shown, Right–Hand Drive Similar)
D102A401
1 Power Steering Oil Reservoir
2 Coolant Reservoir
3 Canister
4 Canister Solenoid
5 Manifold Absolute Pressure (MAP) Sensor
6 Intake Manifold
7 Ignition Coil
8 Idle Air Control (IAC) Valve
9 Throttle Position (TP) Sensor
10 Throttle Body
11 Brake Fluid Reservoir
12 Wiper Motor
13 Battery
14 Fuse Box
15 Air Cleaner Housing
16 Resonator
17 PCV Hose
18 Distributor
19 Exhaust Manifold
20 Snorkel
21 Engine
22 Washer Fluid Reservoir
23 Oil Level Gauge
24 Oil Filler Cap
