WIPERS/WASHER SYSTEMS 9D–11
DAEWOO M-150 BL2
D19D537A

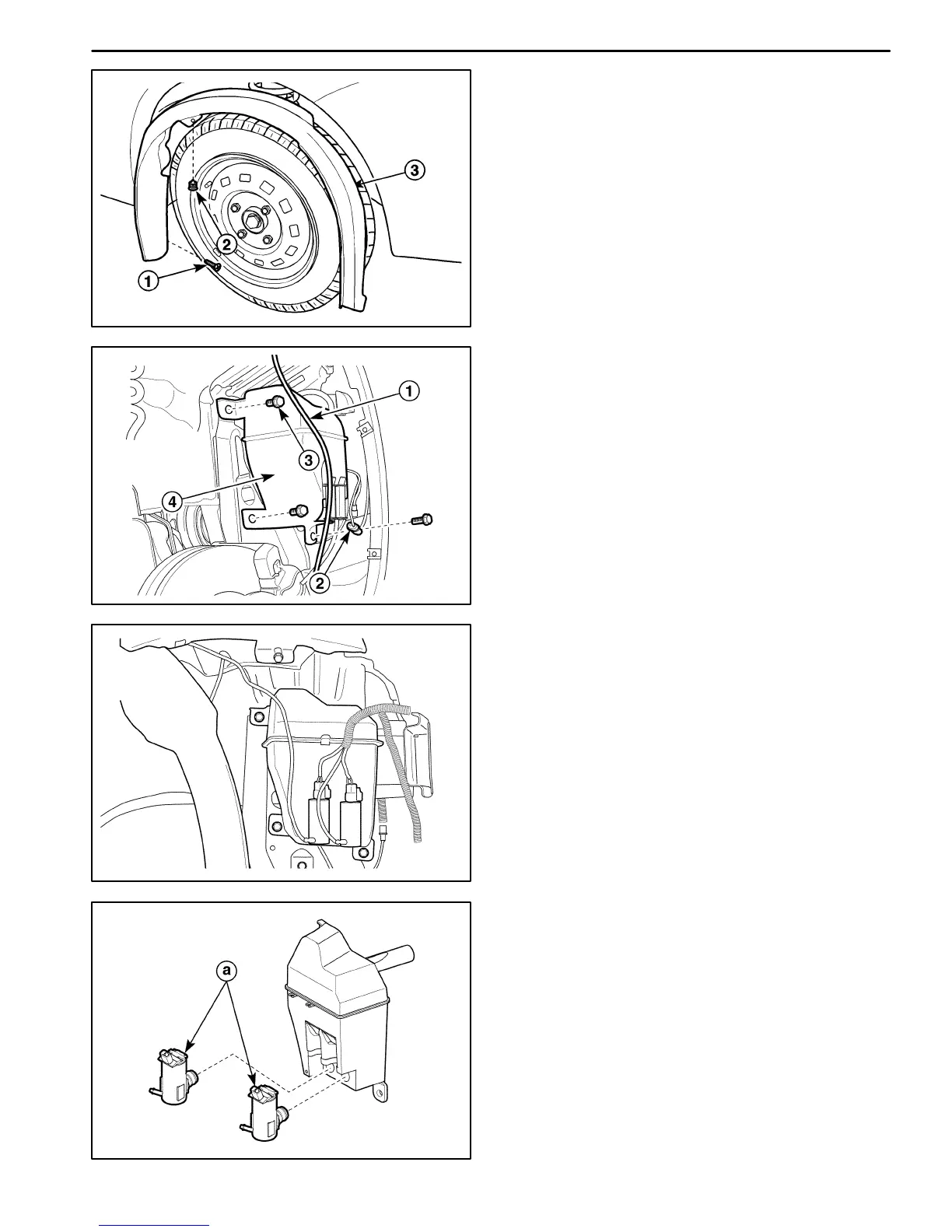

3. Raise and suitably support the vehicle.
4. Remove the front RH wheelhouse splash shield.
D Remove the screws (1).
D Remove the clips (2).
D Remove the wheelhouse splash shield (3).
D109D538
5. Remove the washer reservoir assembly.
D Drain the washer fluid.
D Disconnect the washer hose connector (1).
D Disconnect the washer pump electrical connector
(2).
D Remove the bolts (3).
D Remove the washer reservoir assembly (4).
D109D539
Installation Procedure
1. Install the washer reservoir assembly with the bolts.
2. Connect the washer pump electrical connector.
3. Connect the washer hose connector.
4. Install the front RH wheelhouse splash shield with the
screws and the clips.
5. Lower the vehicle.
6. Install the washer reservoir with the bolt.
7. Connect the negative battery cable.
D109D540
WASHER PUMP
Removal Procedure
1. Disconnect the negative battery cable.
2. Remove the washer reservoir assembly. Refer to
“Washer Reservoir” in this section.
3. Drain the washer fluid.
4. Remove the wiper motor from the washer reservoir
assembly.
a. Washer pump.
