Daewoo MATIZ User Manual

1G–6 ENGINE EXHAUST
DAEWOO M-150 BL2
MAA1B010

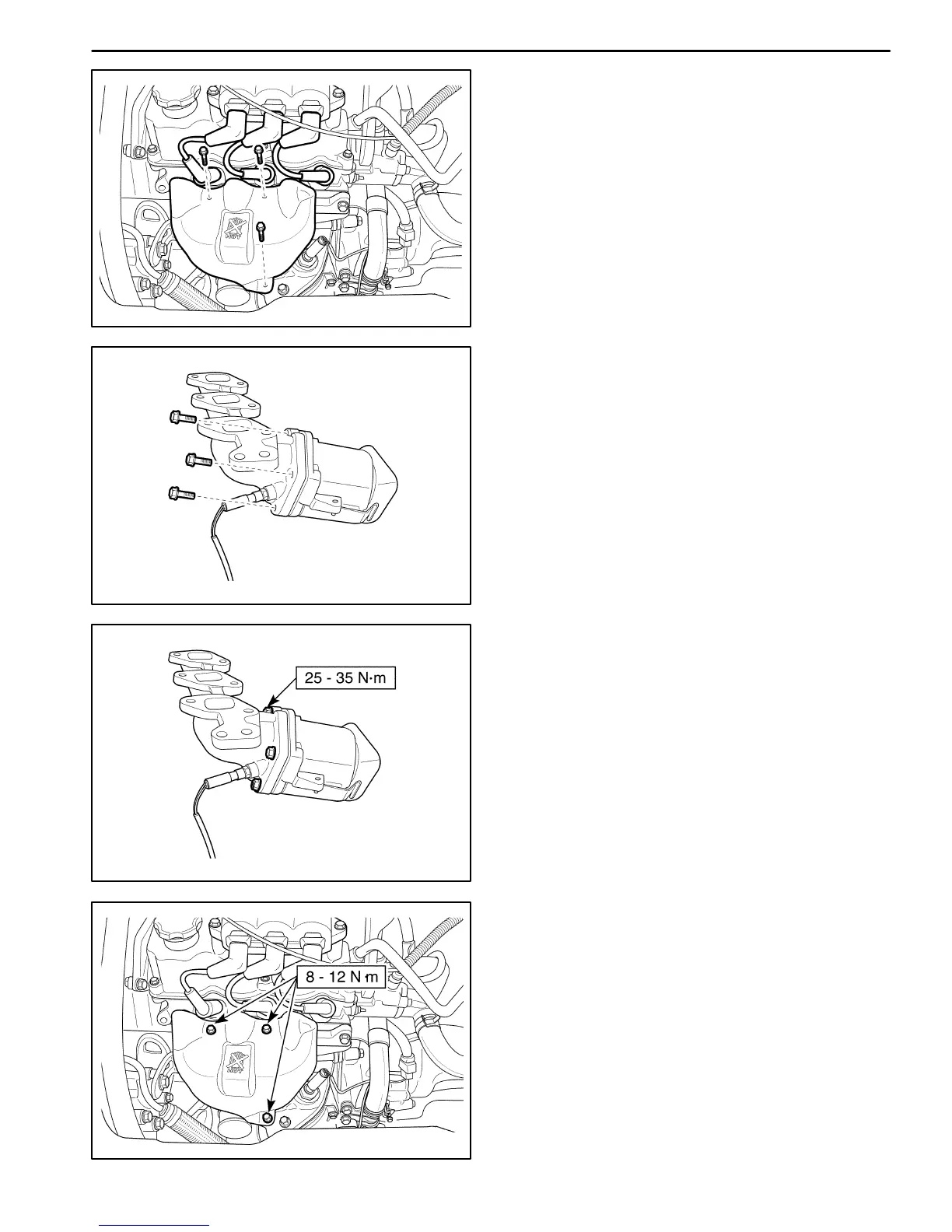

3. Remove the air cleaner assembly. Refer to Section
1B, SOHC Engine Mechanical.
4. Disconnect Oxygen Sensor (O2S) connector.
5. Remove the exhaust manifold heat shield.
6. Remove the exhaust manifold. Refer to Section 1B,
SOHC Engine Mechanical.
MAA1B040
7. Remove pup-up catalytic convertor.
D Remove the bolts.
MAA1B041
Installation Procedure
1. Install pup-up catalytic convertor to exhaust pipe.
Tighten
Tighten the bolts to 25–35 NSm (18–25 lb-ft).
MAA1B011
2. Install exhaust manifold. Refer to Section 1B, SOHC
Engine Mechanical.
Tighten
Tighten the bolts and nuts to 17–27 NSm (13–20 lb-ft).
Tighten the exhaust manifold heat shield bolts to
8–12 NSm (71–106 lb-in).
