REAR SUSPENSION 2D–11
DAEWOO M-150 BL2
D16C517C

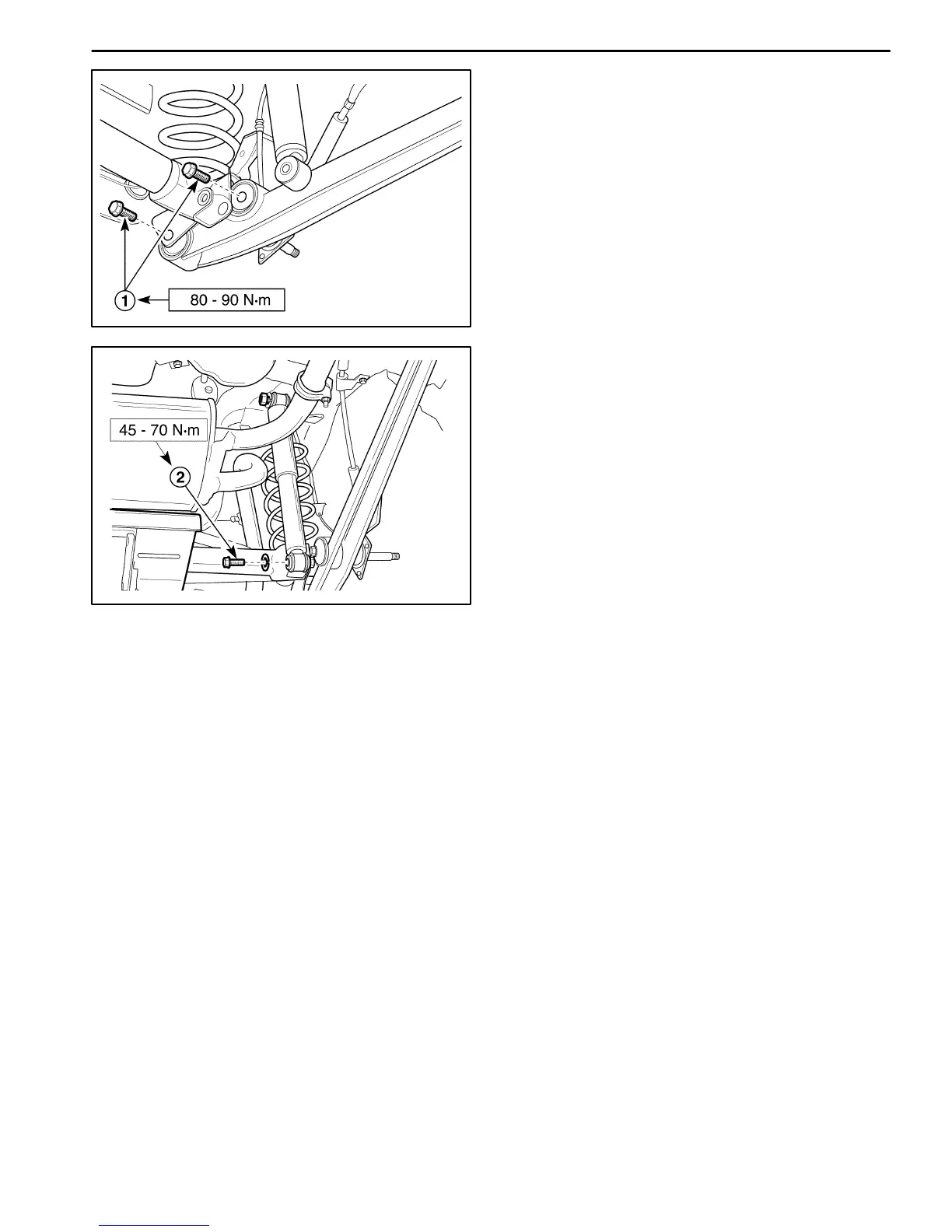

3. Install the trailing arm and the shock absorber to the
rear axle.
D Install the trailing arm–to–rear axle bolt (1).
Tighten
Tighten the trailing arm–to–rear axle bolt to 80–90
NSm (59–66 lb-ft).
D16C516C
D Install the shock absorber–to–rear axle bolt (2).
Tighten
Tighten the shock absorber–to–rear axle bolt to 45–70
NSm (33–52 lb-ft).
4. Install the lateral rod. Refer to “Lateral Rod” in this
section.
5. Install the rear brake drum, shoe and brake plate. Re-
fer to Section 4E, Rear Drum Brake.
