3B –6 MANUAL TRANSAXLE DRIVE AXLE
DAEWOO M-150 BL2
D104B502

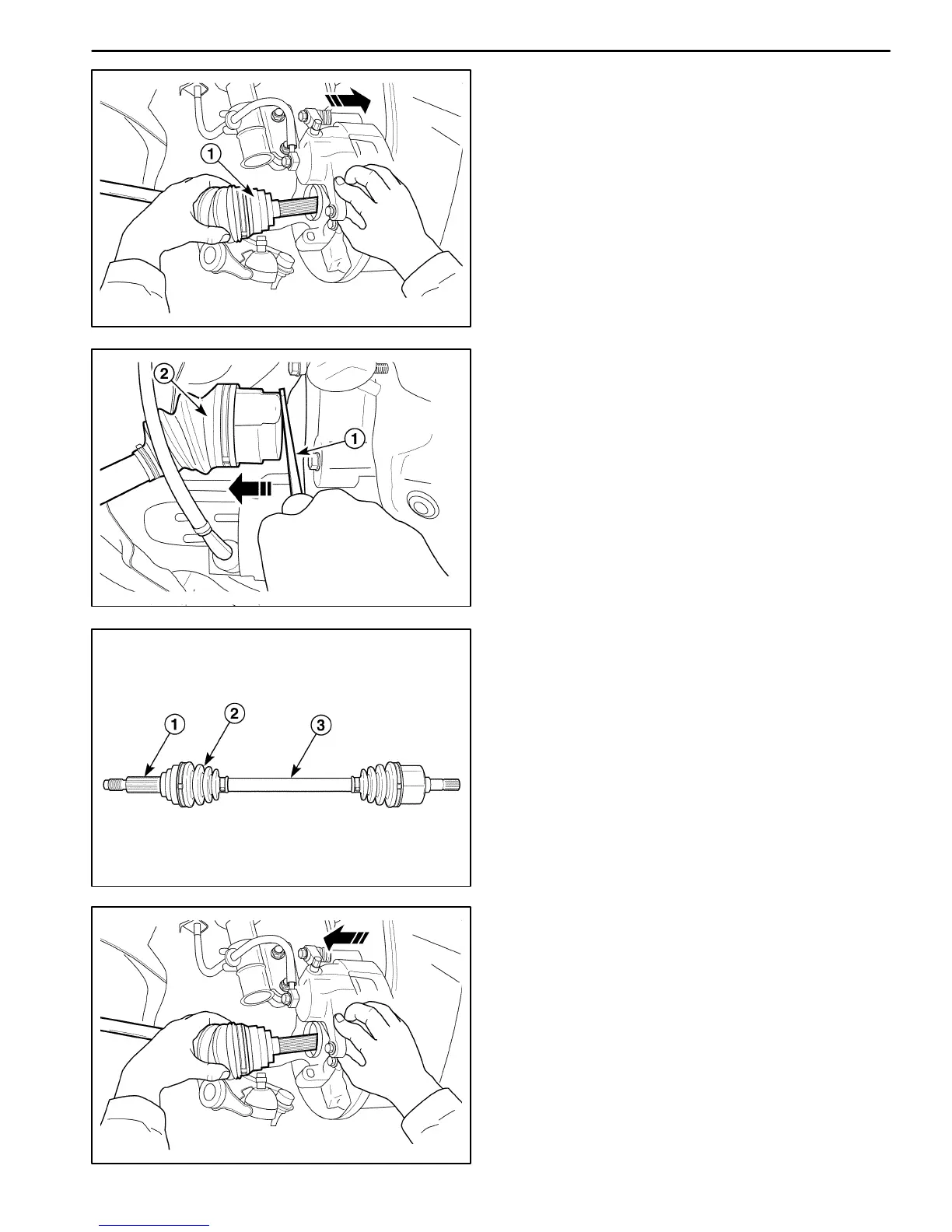

7. Pull the drive axle shaft (1) from the wheel hub.
Important: Support the unfastened end of the drive
axle. Do not allow the drive axle to dangle freely from the
transaxle for any length of time after it has been re-
moved from the wheel hub.
D104B503
8. Remove the drive axle from the transaxle.
D Insert a flathead screwdriver between the trans-
axle case and the drive axle joint case (1).
D Remove the drive axle (2).
Important: Cap the transaxle drive opening after the
drive axle has been removed to keep any contamination
out.
D104B504
Inspection Procedure
1. Inspect for worn or damaged spline of drive axle (1).
2. Inspect for a leaking boot (2).
3. Inspect for a bent shaft (3).
D14B502A
Installation Procedure
1. Clean the transaxle seal.
2. Install the drive axle into the transaxle.
3. Install the wheel hub onto the drive axle shaft.
4. Mount the knuckle onto the control arm ball joint.
