PARKING BRAKE 4G–7
DAEWOO M-150 BL2
D107D512

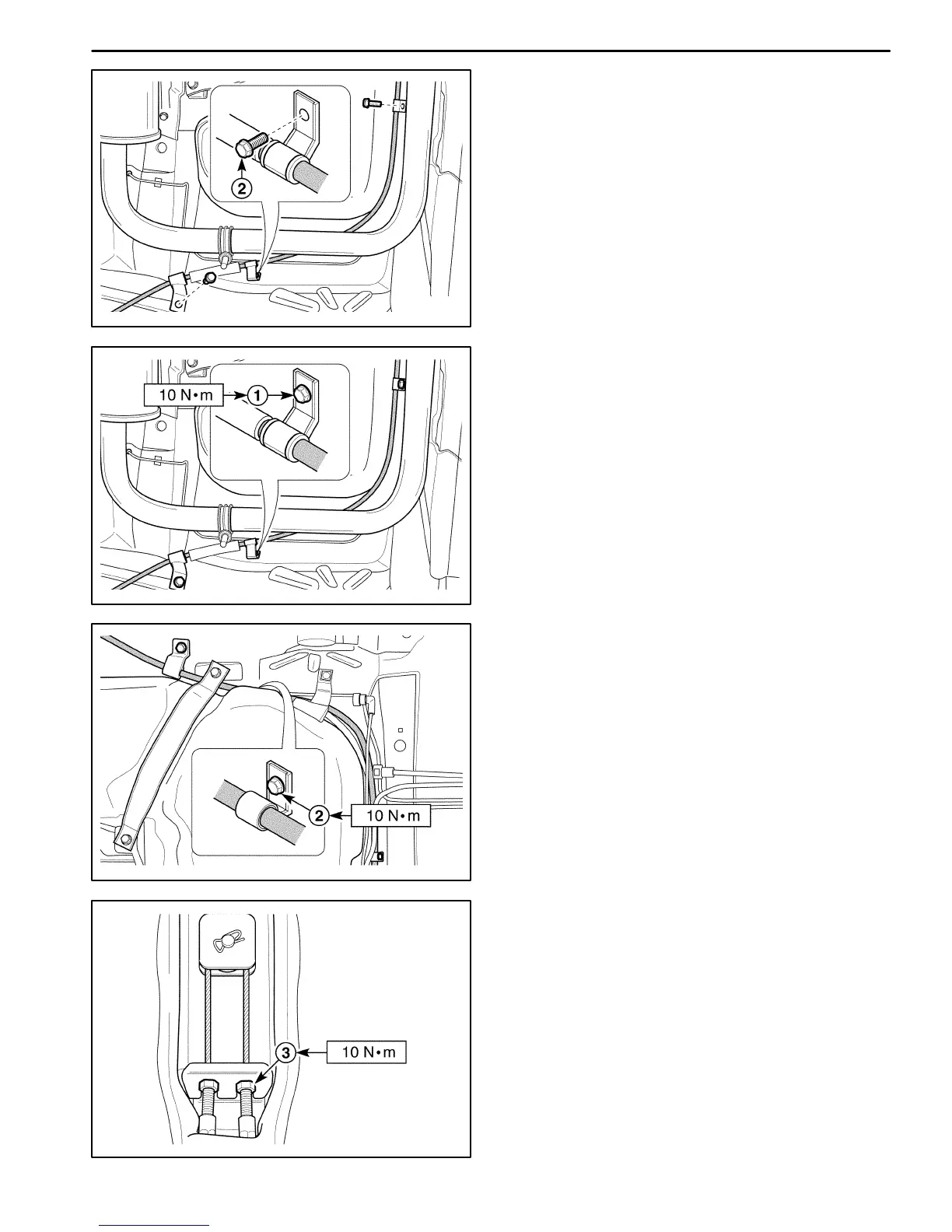

D Remove the clamp bolts fastening the brake cable
(LH Rear Brake Side) (2).
D17D513A
D17D514A
Installation Procedure
1. Install the fuel filter.
2. Install the parking brake cable with the clamp bolts.
Tighten
Tighten the parking brake cable clamp bolts to 10 NSm
(89 lb-in) (1, 2).
D17D515A
3. Connect the parking brake cable to the rear brake
drum assembly. Refer to Section 4E, Rear Drum
Brake.
4. Install the rear brake drum assembly. Refer to Sec-
tion 2D, Rear Suspension.
5. Install the grommet and the strengthener.
6. Install the cable pulley with the adjustment nuts.
Tighten
Tighten the adjustment nuts to 10 NSm (89 lb-in) (3).
7. Install the parking brake lever. Refer to “Parking Brake
Lever” in this section.
